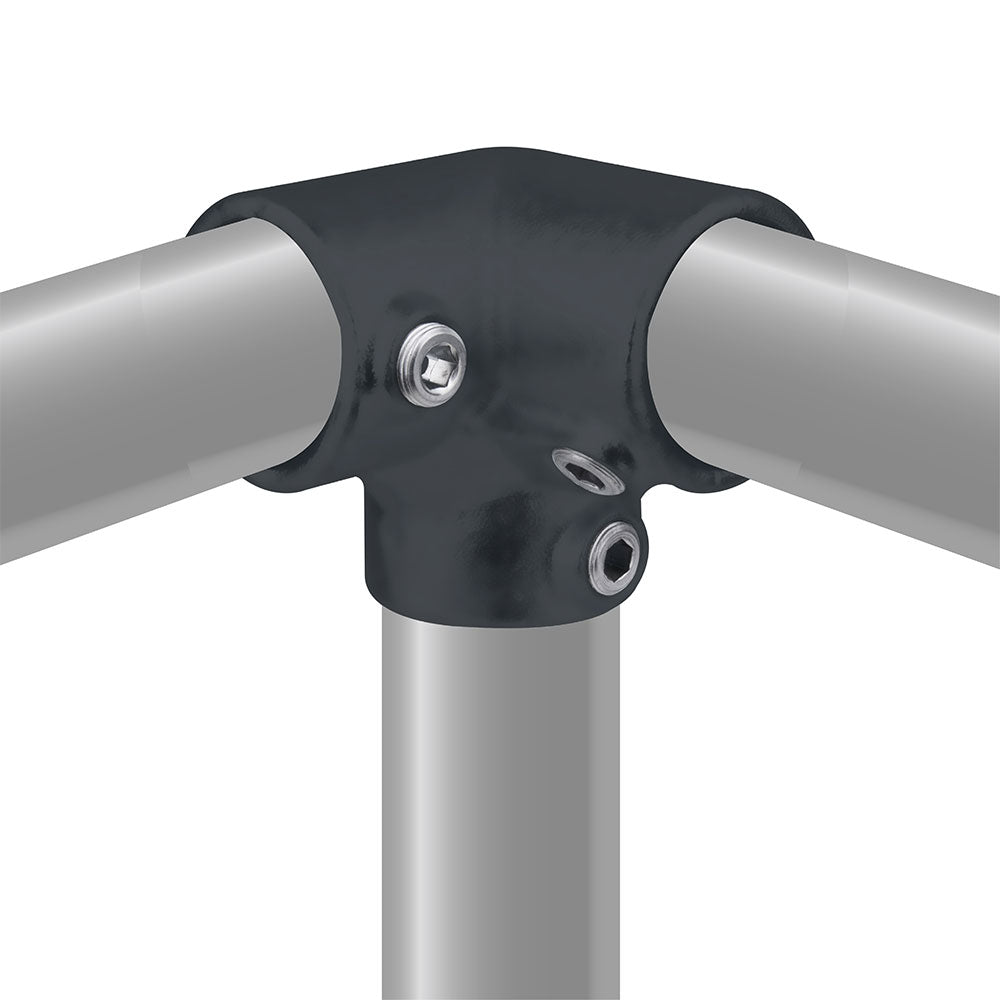

• KPC-128B - Pipe Clamp 3 Way 90° (Black) installed pipe clamp view

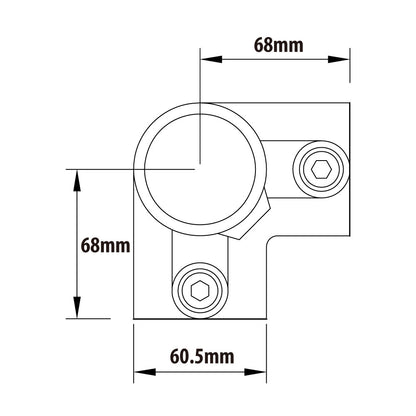

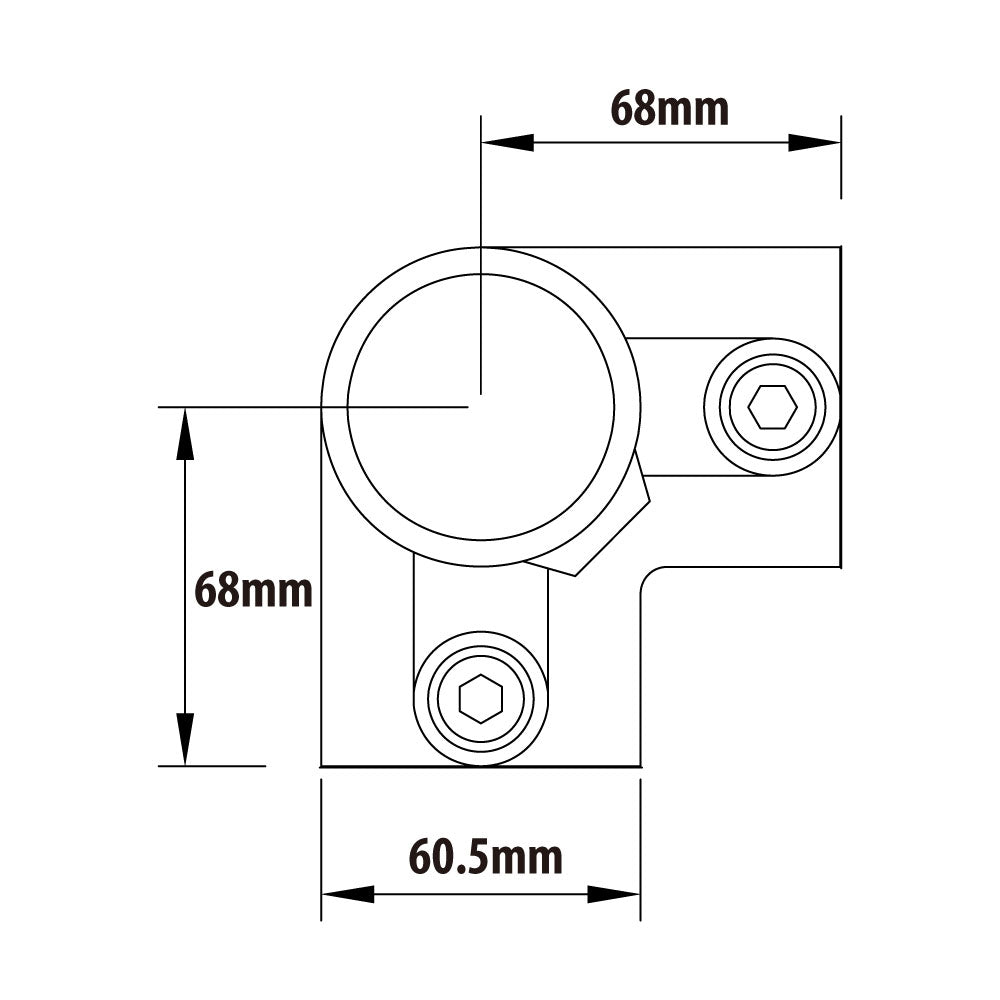

  • KPC-128B - Pipe Clamp 3 Way 90° (Black) dimension diagram
1 2
View full details

Product Description

Overview

The KPC-128B Pipe Clamp 3 Way 90° is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It joins three pipes meeting at right angles, ideal for cube-frame corners, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reconfigured on site.

Why It Matters

The black finish helps visible pipework settle into scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.

Key Features

  • Three-way 90° layout connects three right-angle pipe directions in one compact fitting.
  • Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
  • ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
  • Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.

Applications

Ideal for cube frames, display booths, rectangular scenic structures, product display frames, guardrail corners, and modular 48.3 mm outside diameter pipe systems.

Compatibility

Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting need welding?

No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.

How is this different from a regular corner fitting?

This version is specifically for three pipes meeting at right angles, which is the geometry often used at cube-frame corners.

What pipe size does this version fit?

This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
