Overview

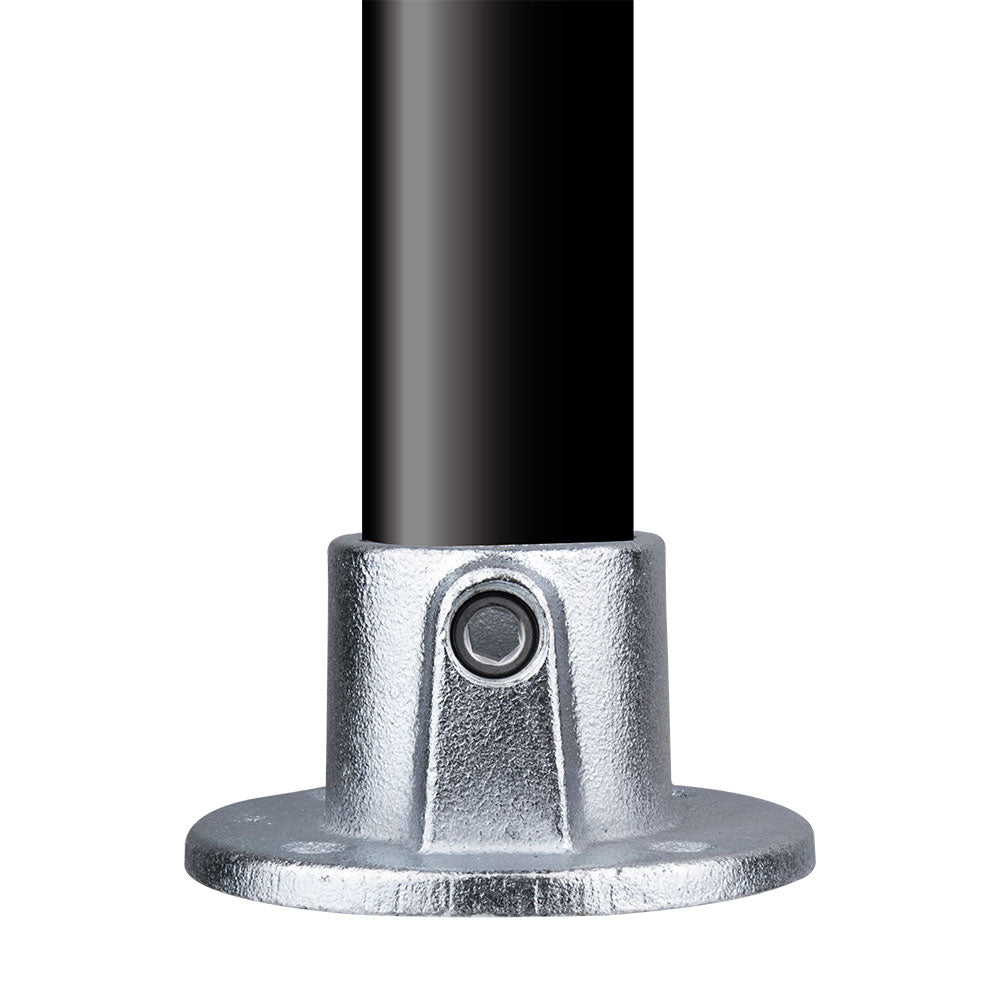

The KPC-131 Pipe Clamp Base Flange is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It terminates a pipe to a flat surface with bolt-down mounting holes for posts and uprights, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reconfigured on site.
Why It Matters
A 48.3 mm upright still needs a clear, inspectable base. This flange gives posts and frame starts a no-weld mounting point on decks, platforms, and fabricated surfaces.
Key Features

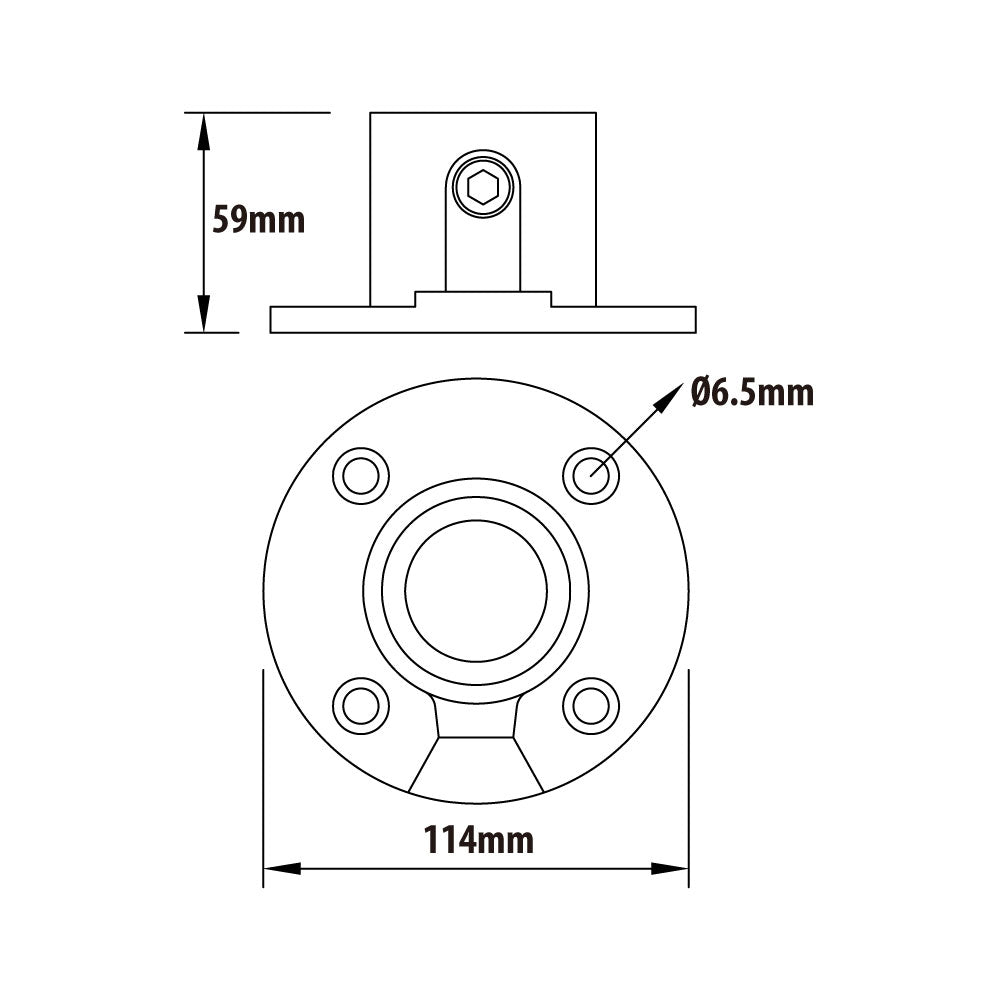

- Bolt-down flange base terminates 48.3 mm outside diameter pipe to a flat surface for posts and uprights.
- Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
- Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
Made for display bases, platform rails, upright posts, pipe frames, shop-built supports, and temporary or semi-permanent structures anchored to flat surfaces.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
