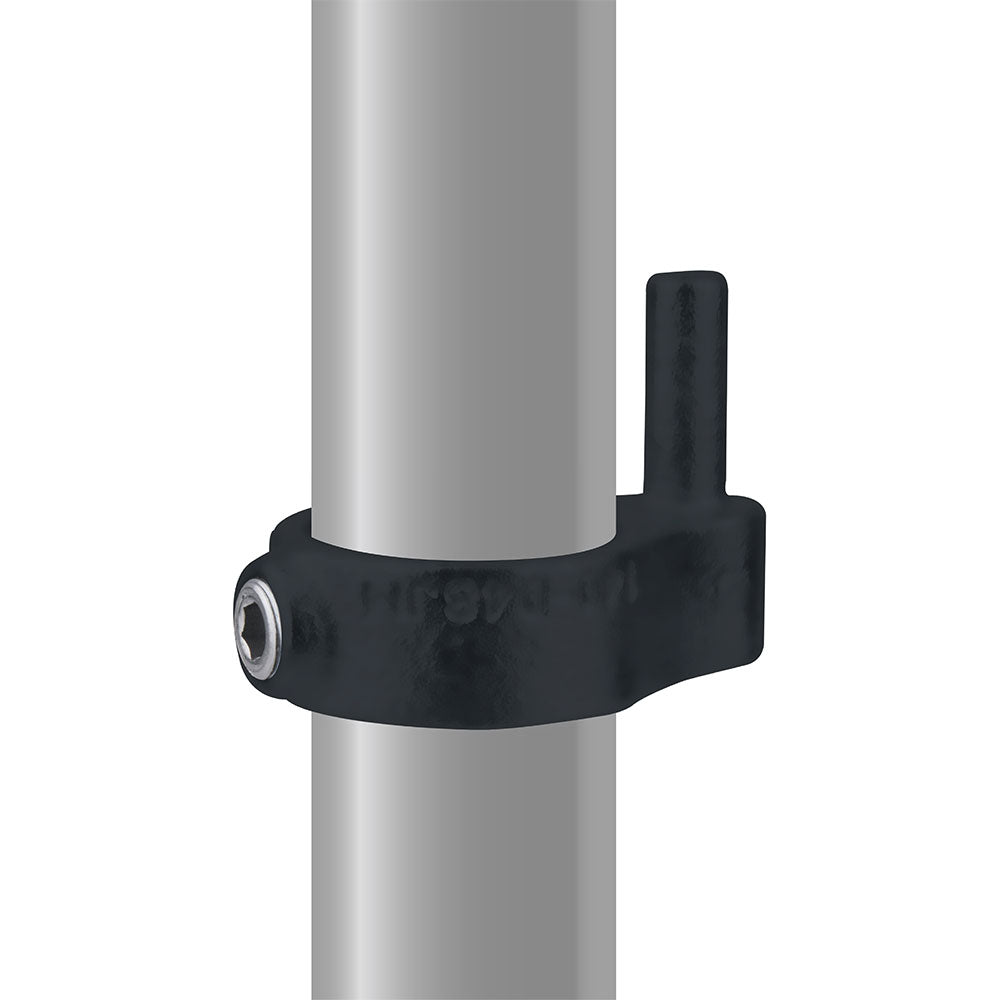

The KPC-140B Pipe Clamp Gate Hinge is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It provides the hinge half that pairs with a Gate Eye to build a swinging pipe gate, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reconfigured on site.
Why It Matters
The black finish helps visible pipework settle into scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.
Key Features
Gate hinge fitting pairs with a Gate Eye to create a swinging 48.3 mm outside diameter pipe gate assembly.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
Suitable for access gates, temporary barriers, railing openings, queue lanes, backstage pathways, and pipe-frame gates that need a swinging section.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.
What does this pair with?
It pairs with a Gate Eye fitting to create the hinge set for a swinging pipe gate.
What pipe size does this version fit?
This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
