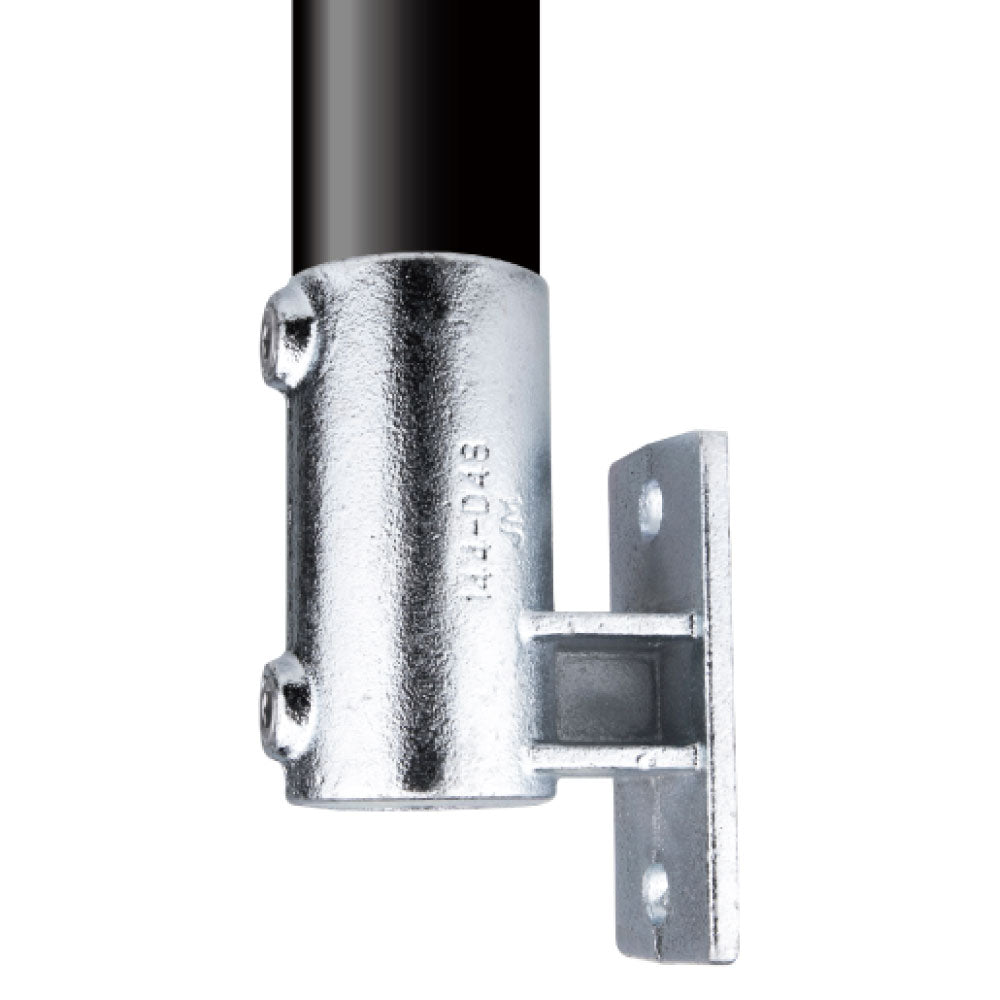

The KPC-144 Pipe Clamp Railing Side is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It joins a railing pipe at a side angle for stair handrails and angled rail runs, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reworked on site.
Why It Matters
Angled rail runs need a fitting that follows the line of the handrail instead of forcing a square joint. This 48.3 mm version keeps stair and ramp rail work clean in the smaller pipe size.
Key Features
Side-angle railing geometry helps handrail sections meet posts or supports on sloped runs.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
Useful for stair handrails, angled rails, ramp-side pipe, platform access routes, temporary guardrails, and pipe railing layouts that need side-mounted angle transitions.
Compatibility

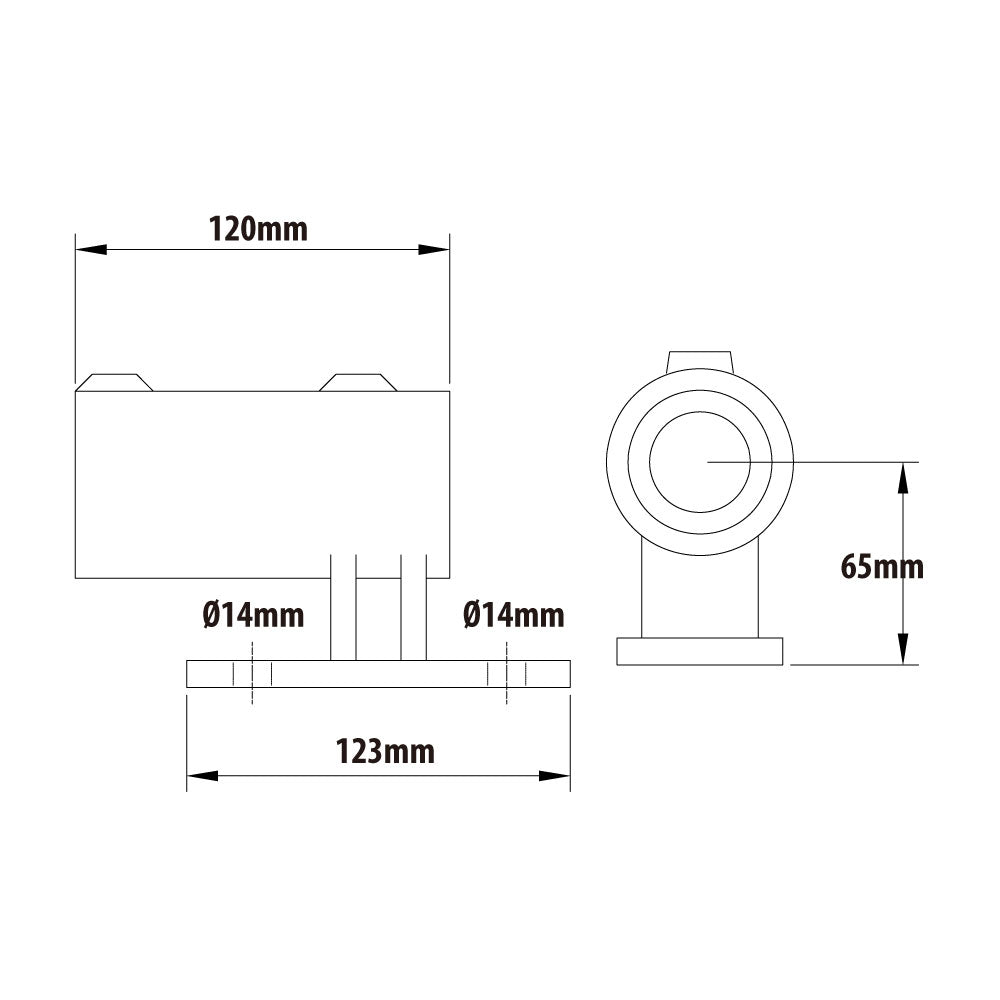

Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.
When should I use a railing side fitting?
Use it when a 48.3 mm railing pipe needs to meet the support from the side at an angle, especially on stairs or ramps.
What pipe size does this version fit?
This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
