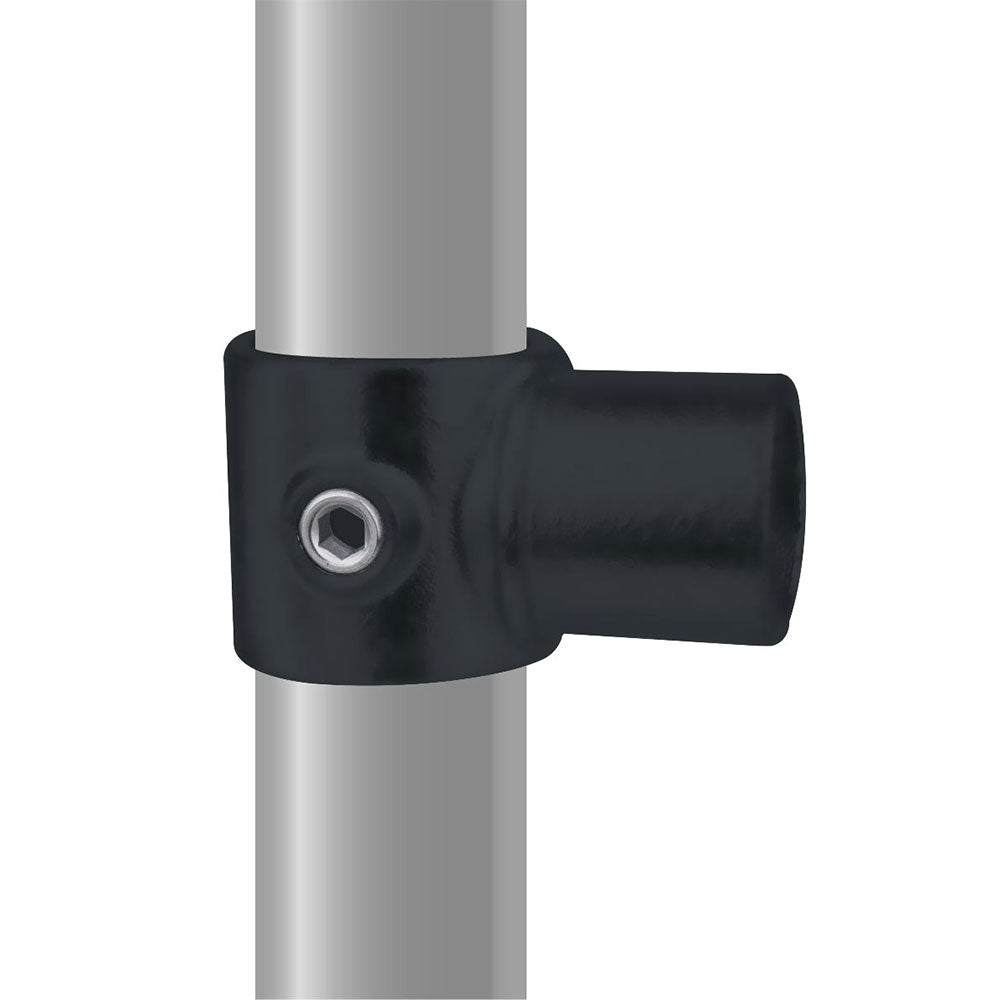

The KPC-147B Pipe Clamp Internal Swivel Tee is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It adds a swiveling perpendicular branch with adjustable angle for braces and stays, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reworked on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.
Key Features
Internal swivel branch provides angle adjustment for braces, stays, and non-square layouts.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
Useful for diagonal stays, angled braces, custom display frames, rail supports, scenic structures, and 48.3 mm outside diameter pipe layouts where the branch angle cannot be fixed in advance.
Compatibility

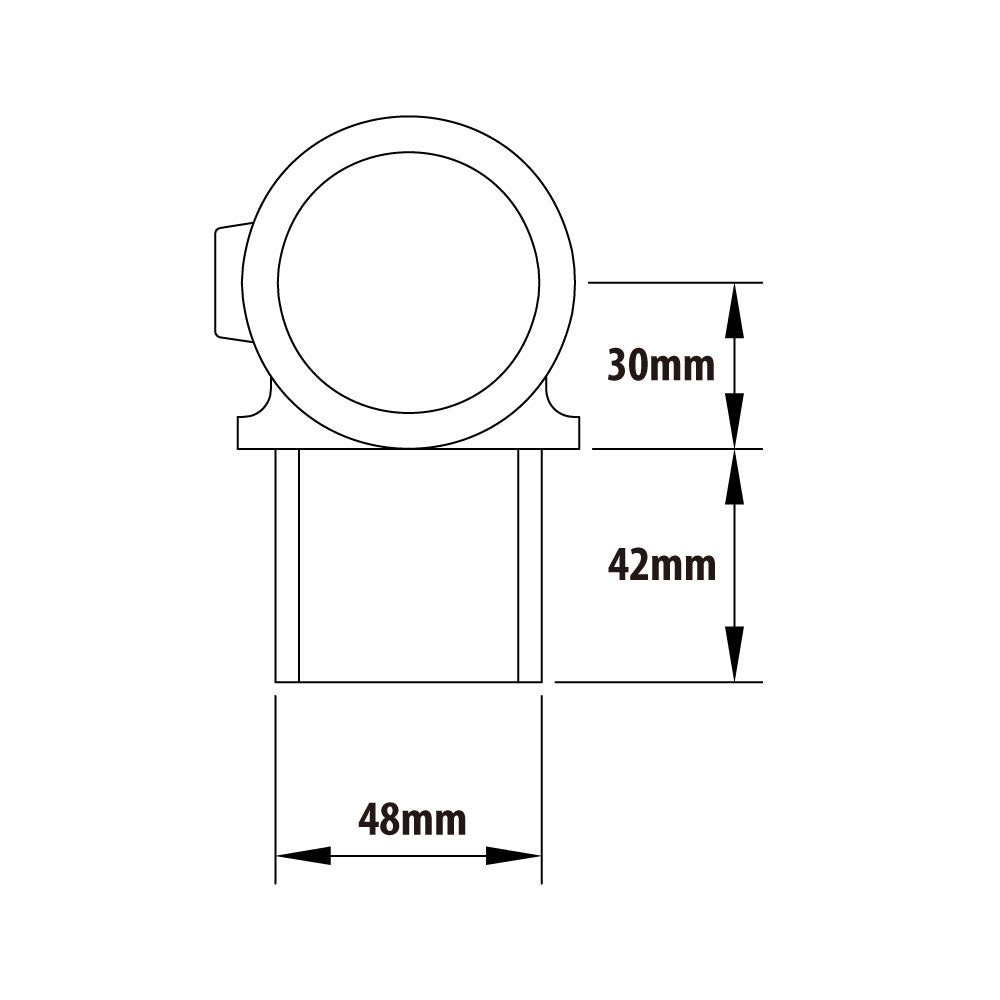

Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.
Can the branch angle be adjusted on site?
Yes. The internal swivel tee is made for adjustable branch angles, often for braces and stays.
What pipe size does this version fit?
This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
