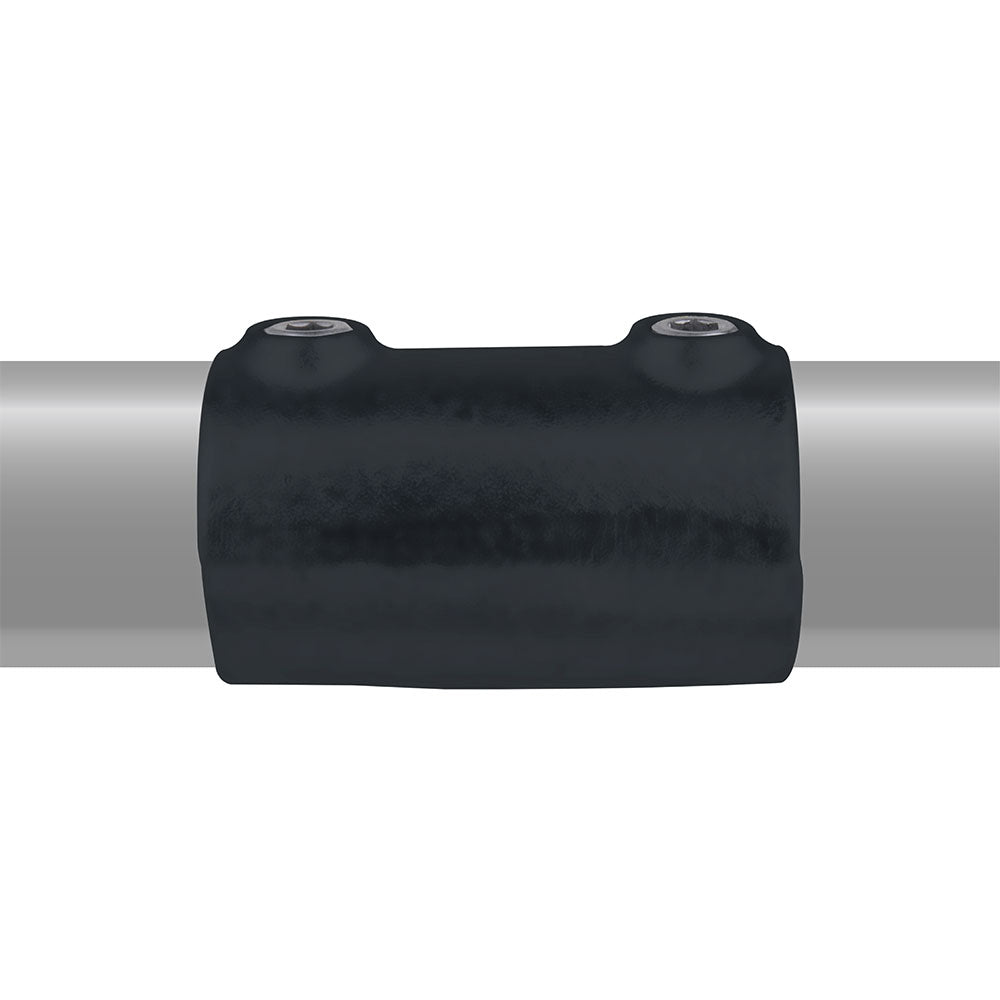

The KPC-149B Pipe Clamp Sleeve Joint is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It butts two pipes end to end inside a sleeve to extend a straight pipe run without offset, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reworked on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.
Key Features
Sleeve body aligns two pipe ends in a straight butt joint without offsetting the run.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
A good fit for extending display rails, long guardrail sections, scenic pipe runs, retail structures, straight frame members, and serviceable 48.3 mm outside diameter pipe spans.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
Frequently Asked Questions
Does this fitting need welding?
No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.
Does this create a branch or just extend the pipe?
It extends a straight pipe run. Two pipe ends butt together inside the sleeve, with no branch added.
What pipe size does this version fit?
This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
