KPC-158B - Pipe Clamp 4 Way Cross (Black)

Name: KPC-158B - Pipe Clamp 4 Way Cross (Black)
Brand: KUPO Stage

1 2

Product Description

Overview

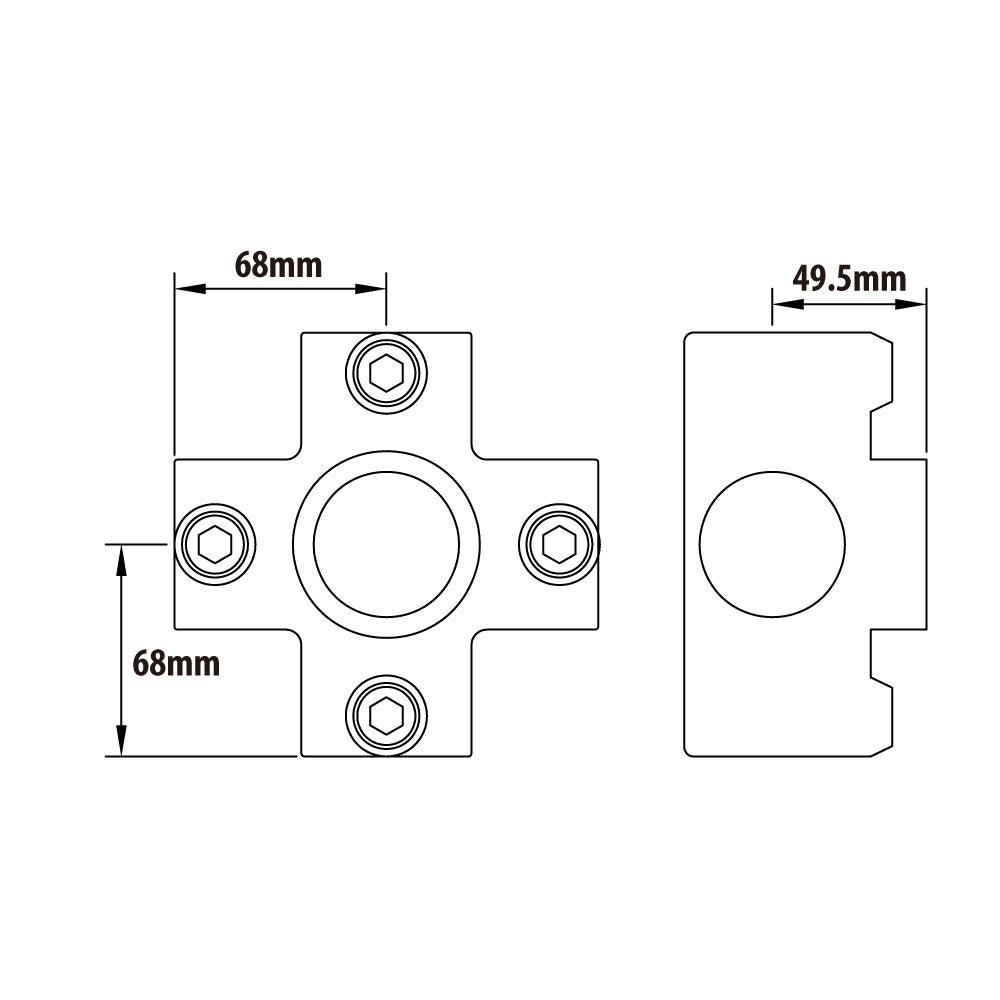

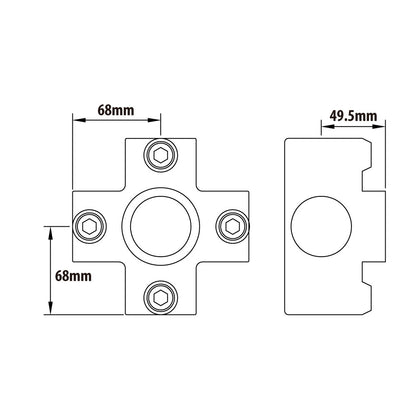

The KPC-158B Pipe Clamp 4 Way Cross is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It joins four pipes meeting at a single right-angle intersection, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reworked on site.

Why It Matters

The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.

Key Features

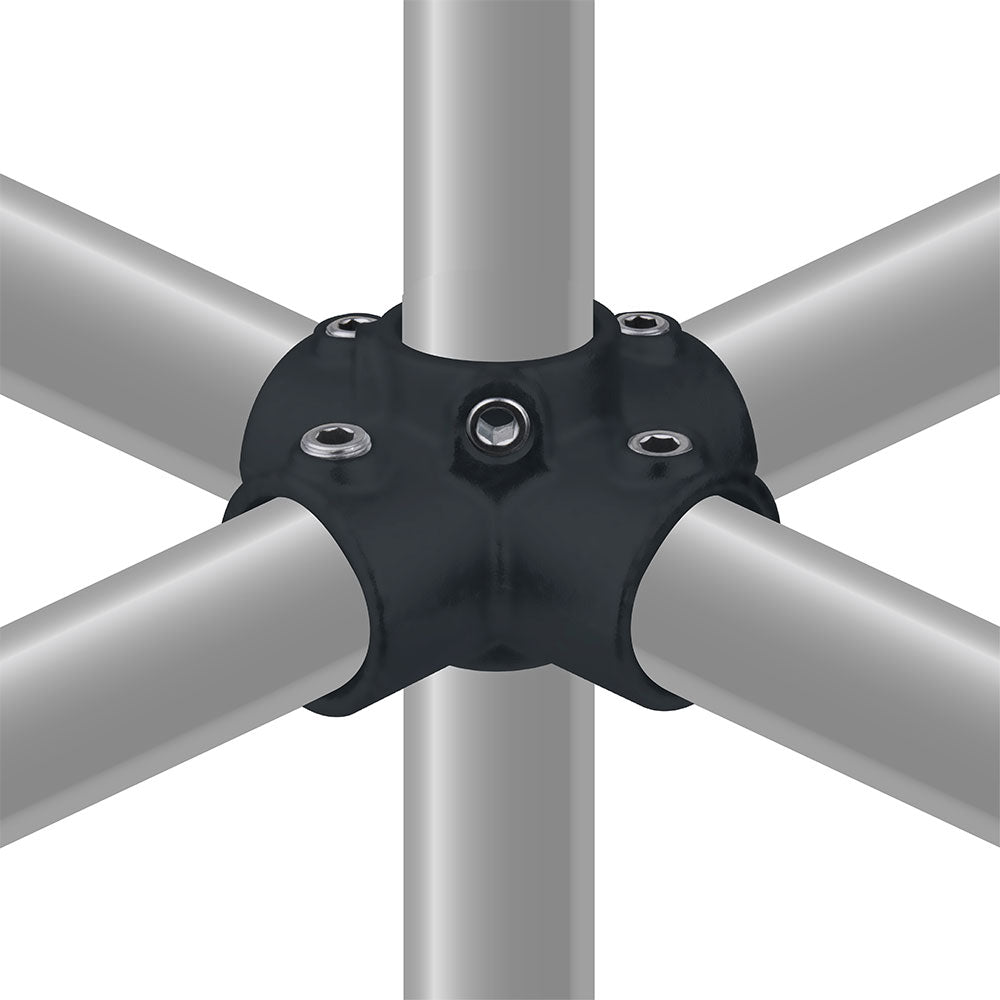

Four-way right-angle geometry organizes four pipe directions at one intersection.
Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.

Applications

Built for pipe grids, cube frames, retail displays, scenic wall systems, guardrail intersections, exhibition frames, and structural layouts where four 48.3 mm members meet.

Compatibility

Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.

Frequently Asked Questions

Does this fitting need welding?

No. It locks the pipe with stainless steel hex screws, keeping the structure bolt-on and easier to revise.

When is a four-way cross useful?

Use it when four pipe directions meet at one right-angle intersection and you want that junction handled by one fitting.

What pipe size does this version fit?

This 100-series version fits 48.3 mm OD, 1-1/2" Sch. 40 pipe, also described as 1-1/2" nominal Schedule 40 pipe.
