Overview

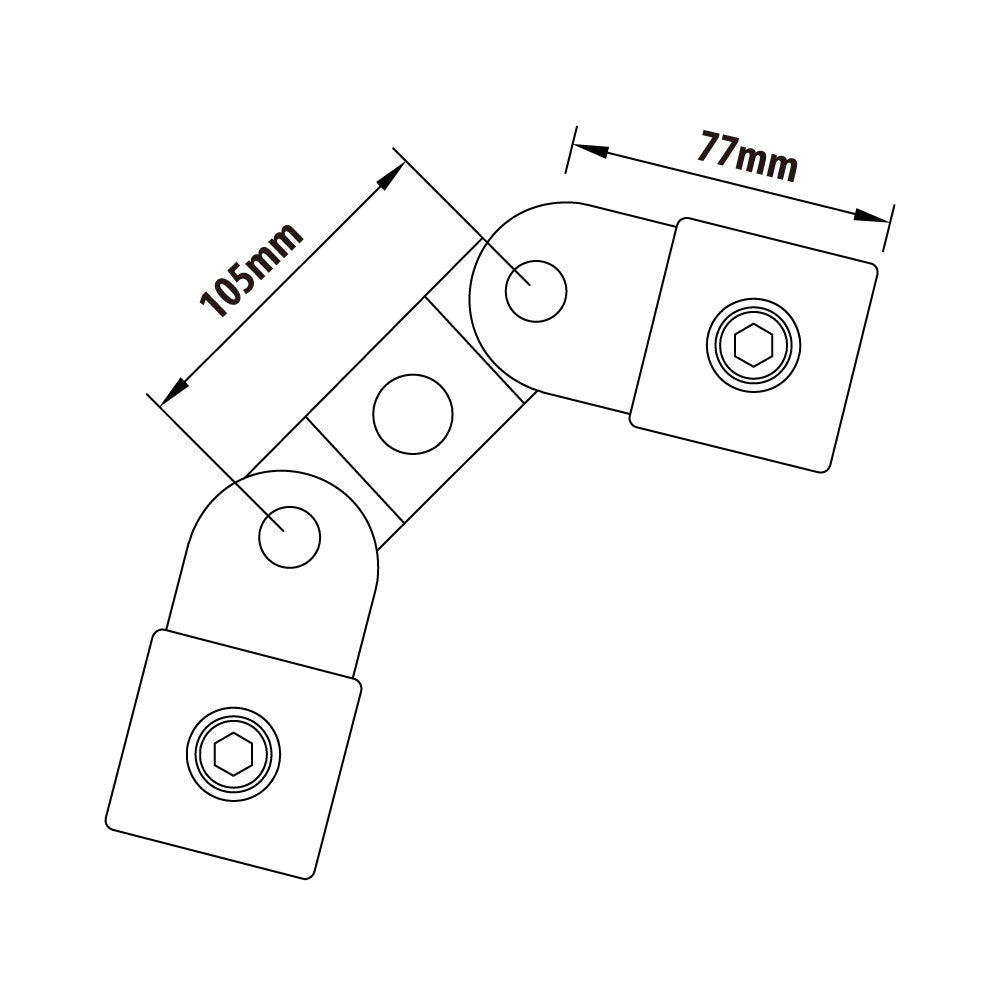

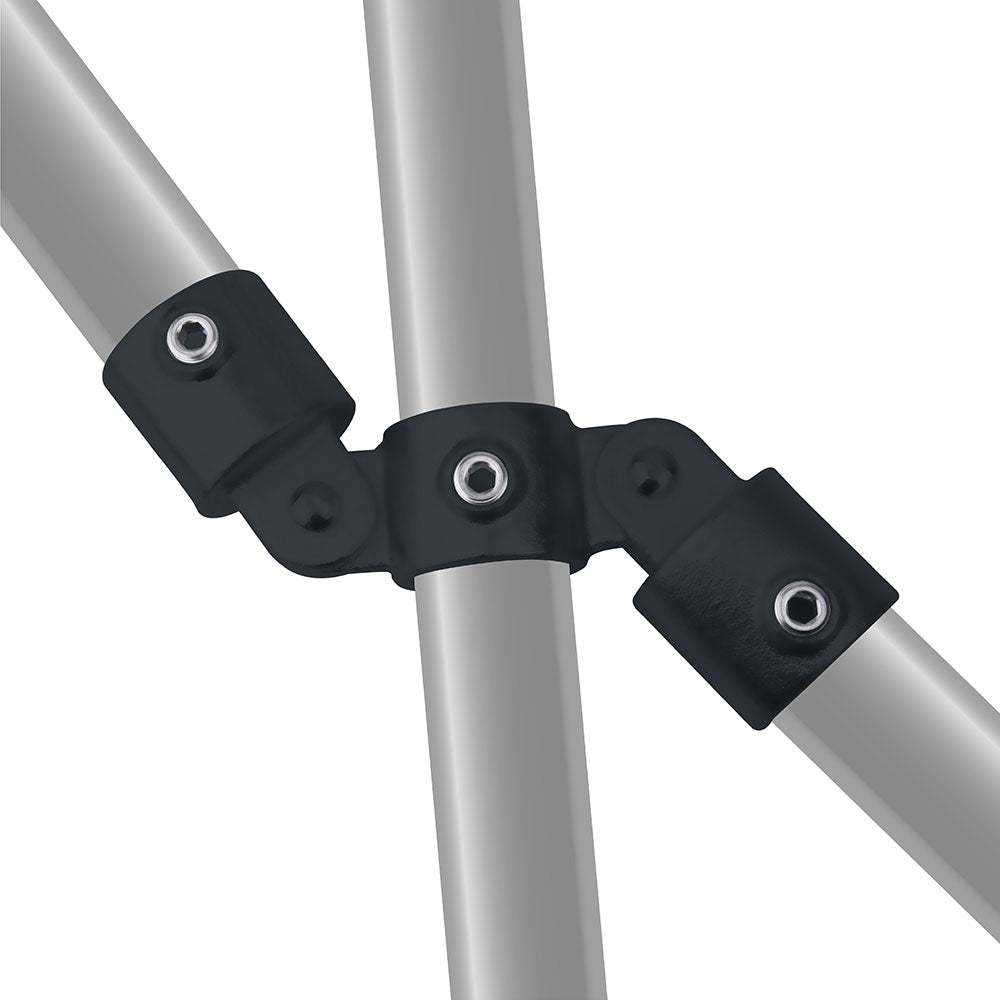

The KPC-167B Pipe Clamp Double Swivel Combination is a 100-series bolt-on fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It provides two swivel joints in one body for compound-angle bracing, using stainless steel hex screws to lock the pipe without welding so smaller-format rail, display, and frame structures can be assembled and reworked on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while keeping the same no-weld pipe clamp workflow.
Key Features
- Two swivel joints in one fitting support compound-angle braces and non-square structures.
- Malleable iron casting per ASTM A197 provides a durable body for modular tubular structures.
- ASTM A153 hot dip galvanized treatment plus zinc plating supports corrosion resistance in demanding environments.
- Stainless steel hex screws lock the pipe without welding, helping crews assemble and revise frames cleanly.
Applications
Useful for diagonal bracing, stays, irregular frames, scenic structures, custom display builds, platform supports, and pipe systems where two adjustable angles meet at one fitting.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
