Overview

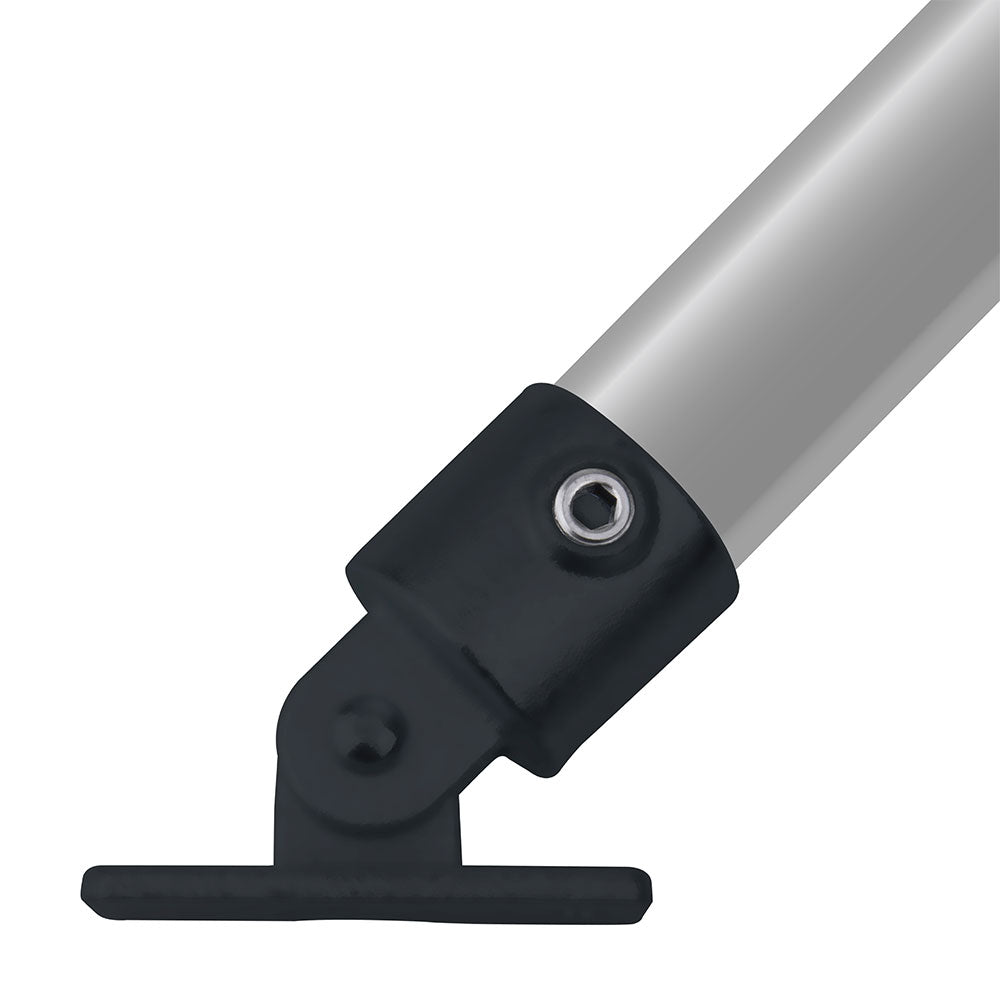

The KPC-169B Swivel Base is a cast-iron pipe clamp fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It connects pipe to a flat mounting surface with up to 85° of angle adjustment from vertical, using internal hex screws to lock the pipe without welding so structural pipework can be assembled, adjusted, and serviced on site.
Why It Matters
The black finish helps visible pipe structures sit quieter in scenic, retail, and event environments while preserving the corrosion-resistant hot-dip galvanized base treatment.
Key Features
- Swivel base supports up to 85° of angle adjustment from vertical for angled pipe starts.
- ASTM A197 cast iron body supports demanding modular pipe structures.
- Double-layer hot-dip galvanization helps protect the fitting in indoor and outdoor service.
- Internal hex screws secure the pipe without welding, keeping the assembly relocatable.
Applications
Use for angled posts, wall-mounted pipe runs, deck-mounted supports, retail display frames, guardrails, set construction, and modular pipe structures.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
