Overview

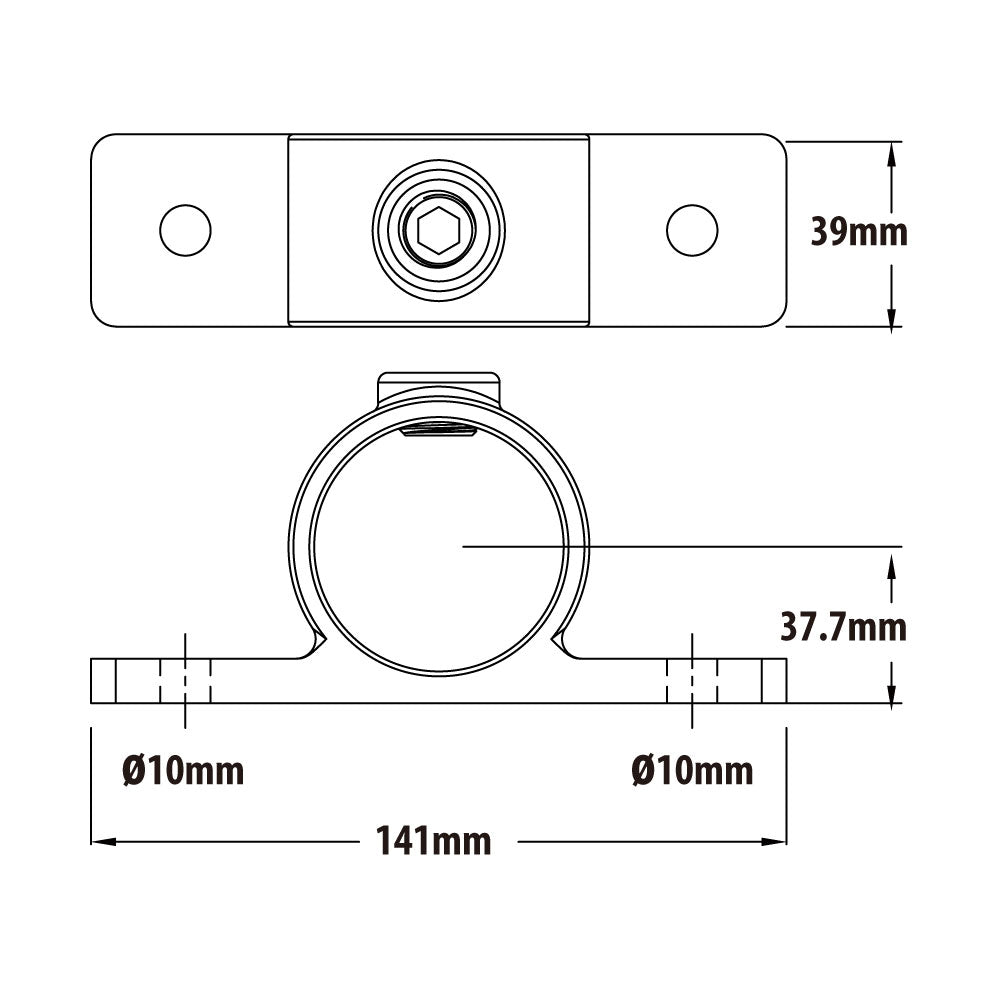

The KPC-198 Double Side Fixing Bracket is a cast-iron pipe clamp fitting for 48.3 mm OD, 1-1/2" Sch. 40 pipe. It secures pipe near-flush against a wall, panel, post, or shelf board, using internal hex screws to lock the pipe without welding so structural pipework can be assembled, adjusted, and serviced on site.
Why It Matters
Sometimes the pipe is the support and sometimes the pipe needs to be supported. This bracket creates a close side fixing point for walls, boards, and panels without fabrication.
Key Features

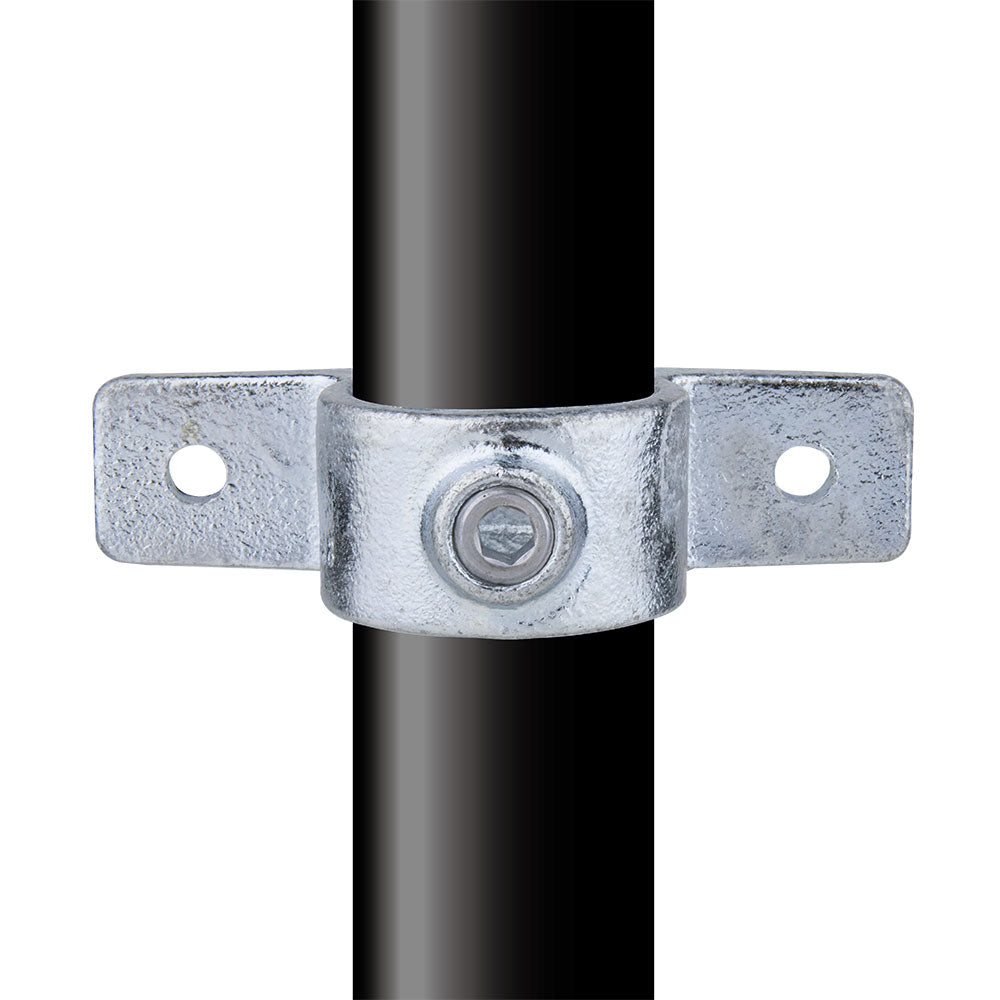

- Two side ears anchor the bracket while internal hex screws clamp the pipe in a near-flush mount.
- ASTM A197 cast iron body supports demanding modular pipe structures.
- Double-layer hot-dip galvanization helps protect the fitting in indoor and outdoor service.
- Internal hex screws secure the pipe without welding, keeping the assembly relocatable.
Applications
Use for wall-mounted pipe, shelf boards, retail display scaffolding, signage frames, industrial guardrails, and modular set construction.
Compatibility
Fits 48.3 mm OD, 1-1/2" Sch. 40 pipe; related sister fittings cover the alternate KUPO pipe clamp diameter.
