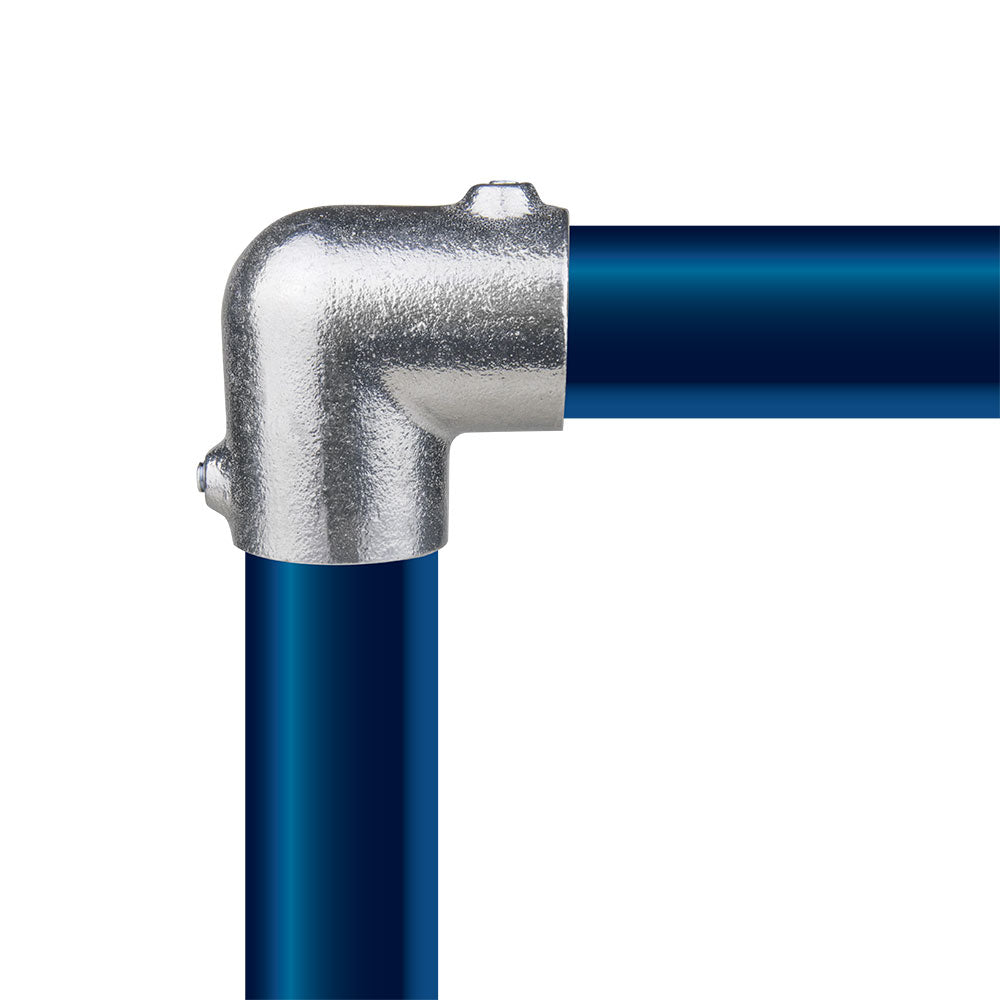

The KPC-A1203 90° Elbow is part of KUPO's A535 aluminum-magnesium alloy slip-on pipe clamp family for 48.30 mm outside diameter tube. It forms a sharp right-angle corner between two pipes, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld pipe structure that can be installed with a standard hex key.
Why It Matters
The clean 90° elbow is the fitting crews reach for when the frame corner should be square, light, and corrosion resistant. The aluminum-magnesium body keeps the structure easier to handle than a comparable iron fitting.
Key Features
90° elbow geometry creates a crisp corner for pipe frames and display structures.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for stage deck frames, shop displays, pipe-and-drape corners, exhibition builds, restaurant fit-outs, guardrails, and lightweight outdoor-friendly tubular structures.
Compatibility
Fits 48.30 mm (1.90") tube for Schedule 40 nominal pipe. The related KPC-A1403 version fits 42.40 mm (1.66") tube.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Why choose the alloy elbow instead of an iron clamp?
The A535 aluminum-magnesium alloy body is lighter and corrosion resistant, which helps on visual builds and environments where weight matters.
Which tube size does this version fit?
This A1200-series version fits 48.30 mm outside diameter tube. The A1400-series sister version fits 42.40 mm tube.
