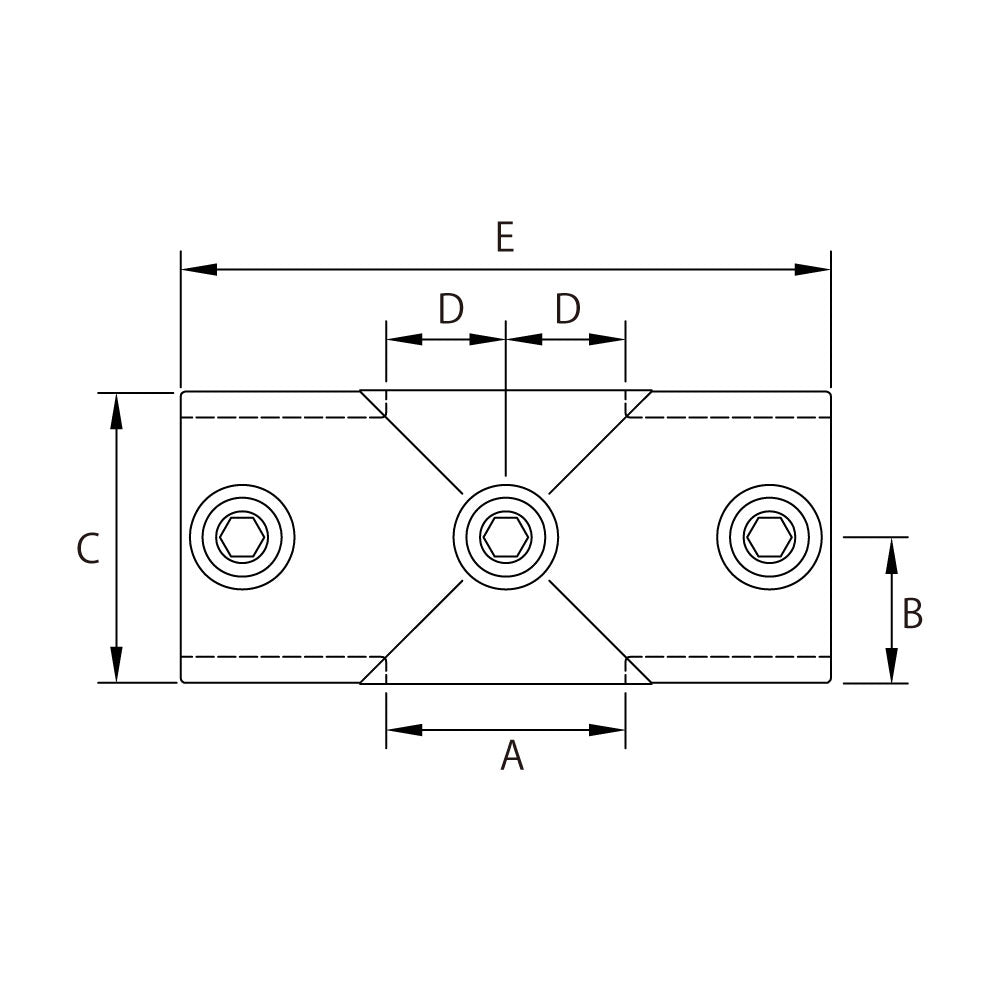

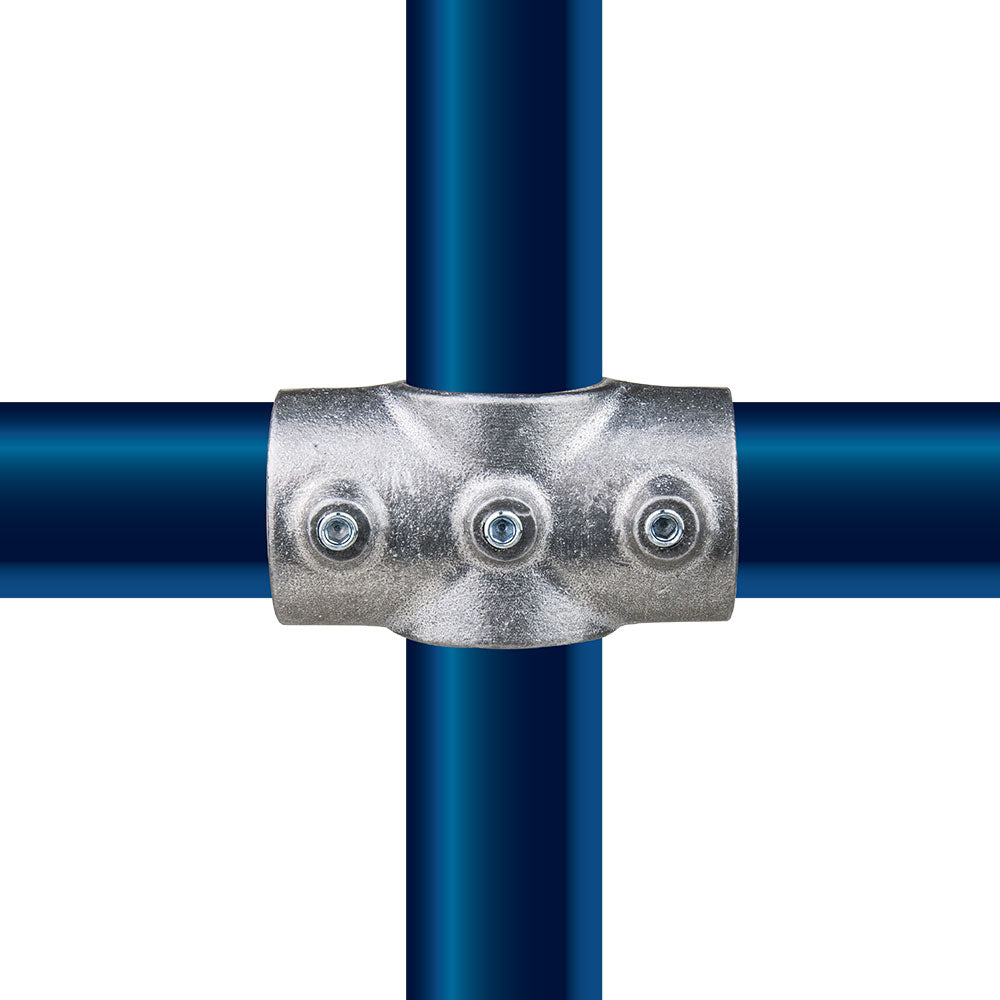

The KPC-A1207E Two Socket Cross is part of KUPO's A535 aluminum-magnesium alloy slip-on pipe clamp family for 48.30 mm outside diameter tube. It creates intersecting bays with two through-sockets and two perpendicular branch sockets, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld pipe structure that can be installed with a standard hex key.
Why It Matters
A cross fitting keeps a pipe grid organized in one body instead of several stacked connectors. This alloy version keeps the intersection lighter and polished for visible structures.
Key Features
Four-way crossover layout creates intersecting bays in pipe-frame structures.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for grid frames, exhibition bays, retail displays, guardrail intersections, scenic structures, playground or recreational venue frames, and outdoor-friendly display systems.
Compatibility
Fits 48.30 mm (1.90") tube for Schedule 40 nominal pipe. The related KPC-A1407E version fits 42.40 mm (1.66") tube.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Is this for a simple tee branch?
No. It is for a four-way intersection with in-line through sockets plus perpendicular branch sockets.
Which tube size does this version fit?
This A1200-series version fits 48.30 mm outside diameter tube. The A1400-series sister version fits 42.40 mm tube.
