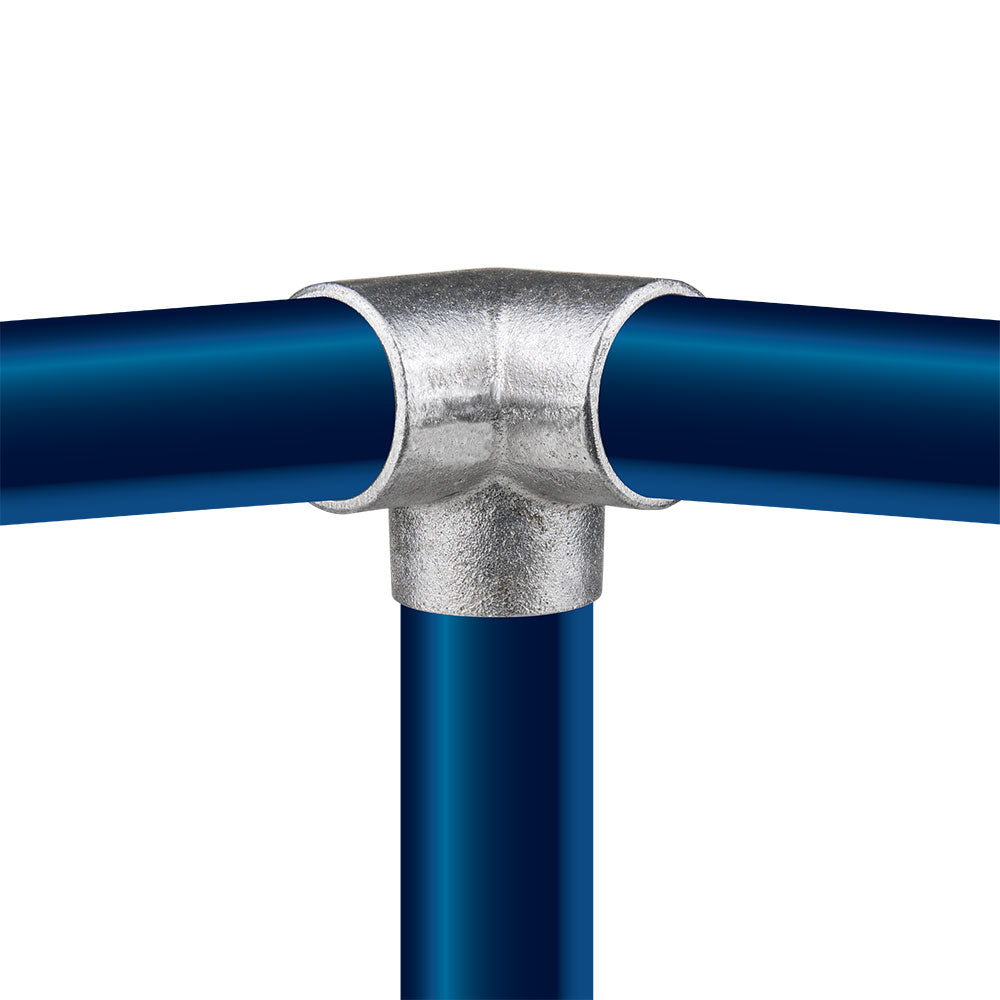

The KPC-A1209 3 Way 90° is part of KUPO's A535 aluminum-magnesium alloy slip-on pipe clamp family for 48.30 mm outside diameter tube. It connects three pipes meeting at right angles for cube-frame corners, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld pipe structure that can be installed with a standard hex key.
Why It Matters
A cube corner defines the whole display case or frame. This fitting keeps three axes square in a lighter alloy body with a polished corrosion-resistant finish.
Key Features
Three-way right-angle body connects three pipes at a cube or display-case corner.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for cube frames, display cases, shop installations, exhibition structures, amusement environments, lightweight guardrails, and modular pipe frames.
Compatibility
Fits 48.30 mm (1.90") tube for Schedule 40 nominal pipe. The related KPC-A1409 version fits 42.40 mm (1.66") tube.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
How is this different from a 90° elbow?
The elbow joins two pipes. This fitting joins three pipes meeting at right angles.
Which tube size does this version fit?
This A1200-series version fits 48.30 mm outside diameter tube. The A1400-series sister version fits 42.40 mm tube.
