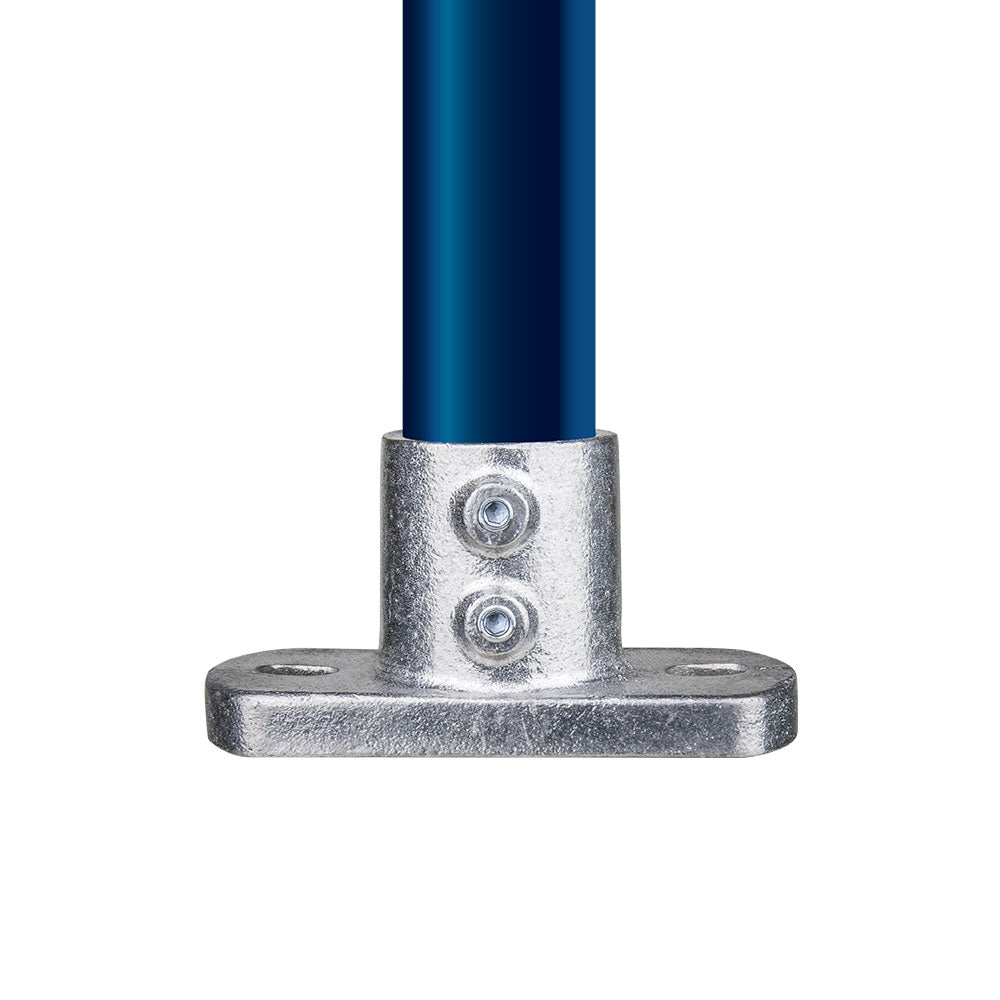

The KPC-A1246 Railing Base Flange is an A535 aluminum-magnesium alloy slip-on pipe clamp for 48.30 mm (1.90") outside diameter tube. It anchors a vertical pipe to a deck or step for handrail and guardrail applications, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Railing posts need a base that reads as part of the rail system, not just a generic pipe mount. This flange is shaped around that handrail and guardrail use case.
Key Features
Specialized railing base flange anchors vertical pipe for handrail and guardrail work.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for railing posts, guardrail bases, deck or step-mounted pipe, access routes, recreational venues, exhibition structures, and outdoor-friendly handrail systems.
Compatibility
Fits 48.30 mm (1.90") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1446 version fits the companion tube size in the same KPC-A family.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Is this just a general base flange?
It is a base flange, but it is specifically positioned for railing and guardrail applications.
Which tube size does this version fit?
This version fits 48.30 mm (1.90") outside diameter tube. Check the sister model if your structure uses the companion KPC-A tube size.
