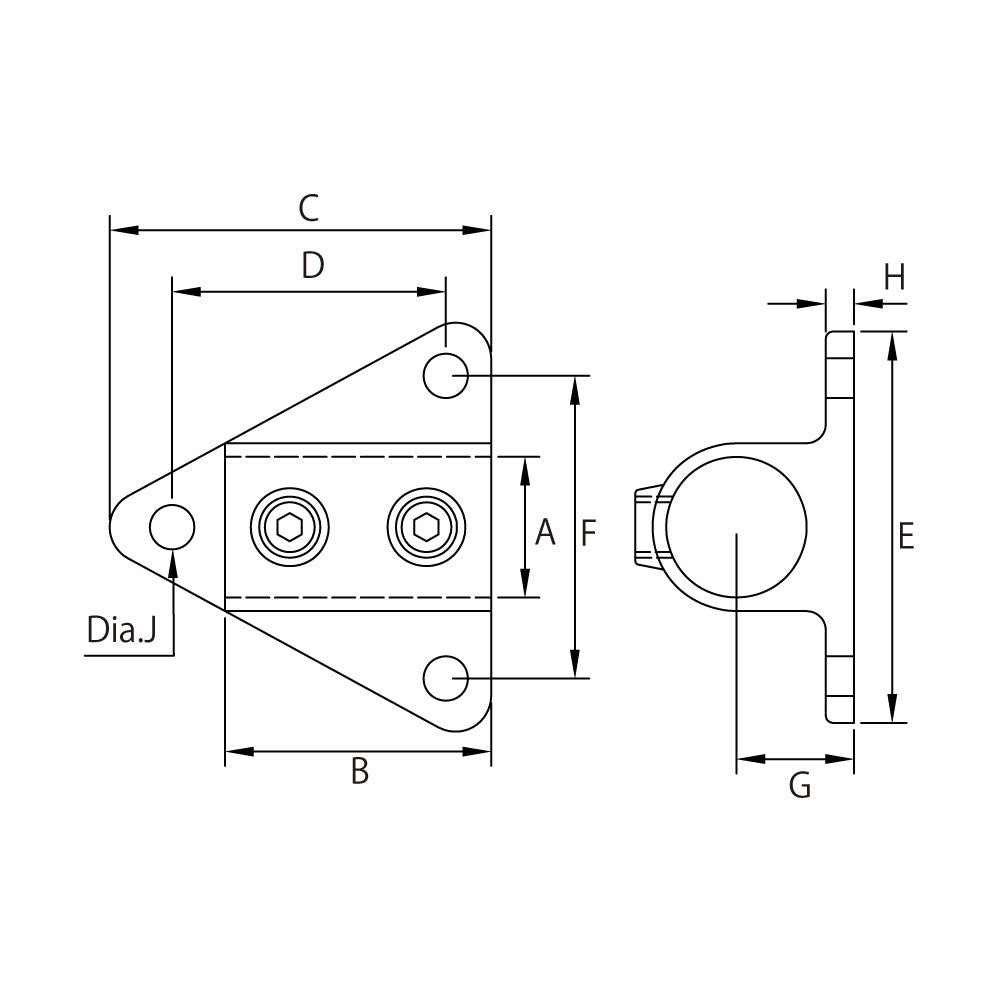

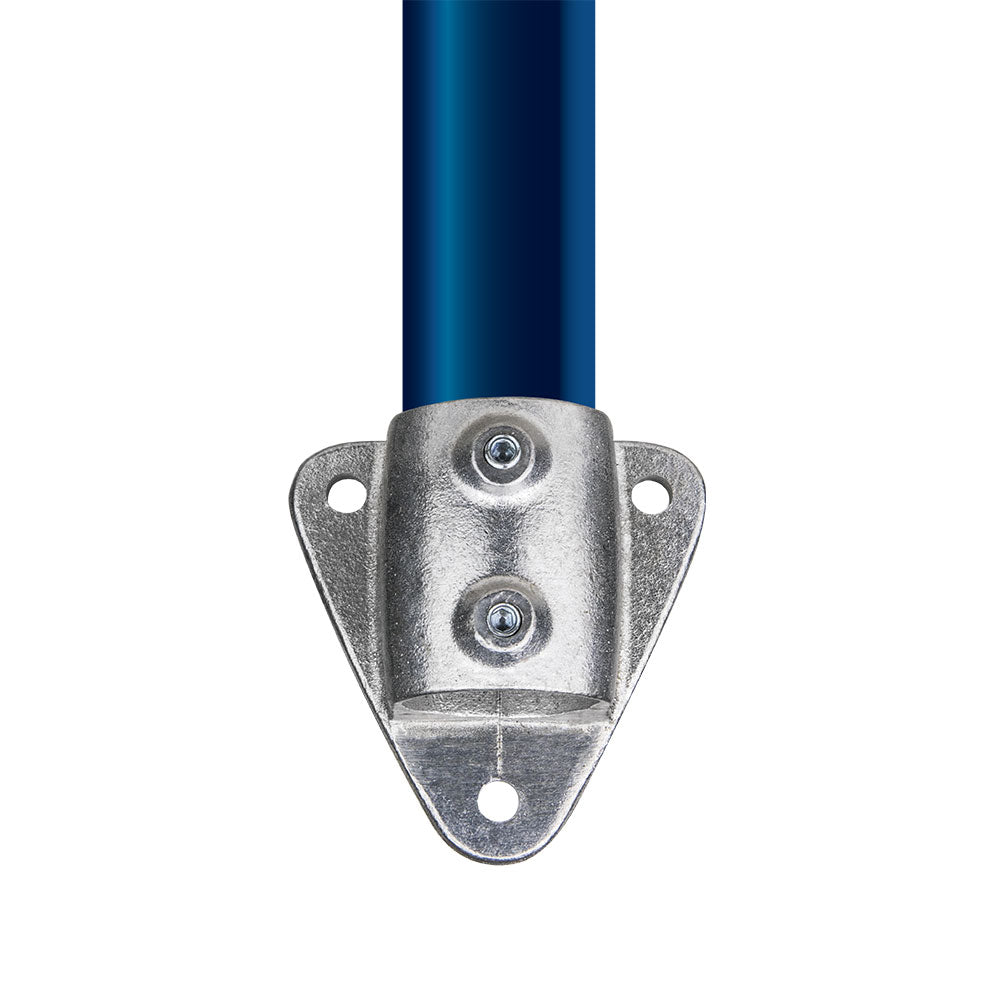

The KPC-A1250 Side Palm Fixing is an A535 aluminum-magnesium alloy slip-on pipe clamp for 48.30 mm (1.90") outside diameter tube. It fixes a pipe parallel to a wall or panel surface using a flat side palm, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Sometimes the pipe needs to sit cleanly against a surface instead of standing away from it. This side palm fitting makes that close mounting path straightforward.
Key Features
Flat palm anchors to wood, panel, or machine-screw mounting surfaces while the saddle clamps the pipe.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for wall-supported rails, panel-mounted pipe, shelf frames, retail displays, signage structures, restaurant fit-outs, and pipework that needs a close side fixing.
Compatibility
Fits 48.30 mm (1.90") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1450 version fits the companion tube size in the same KPC-A family.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Does the pipe sit parallel to the wall?
Yes. The side palm fixing is meant for holding pipe parallel to a wall, panel, or similar surface.
Which tube size does this version fit?
This version fits 48.30 mm (1.90") outside diameter tube. Check the sister model if your structure uses the companion KPC-A tube size.
