Overview

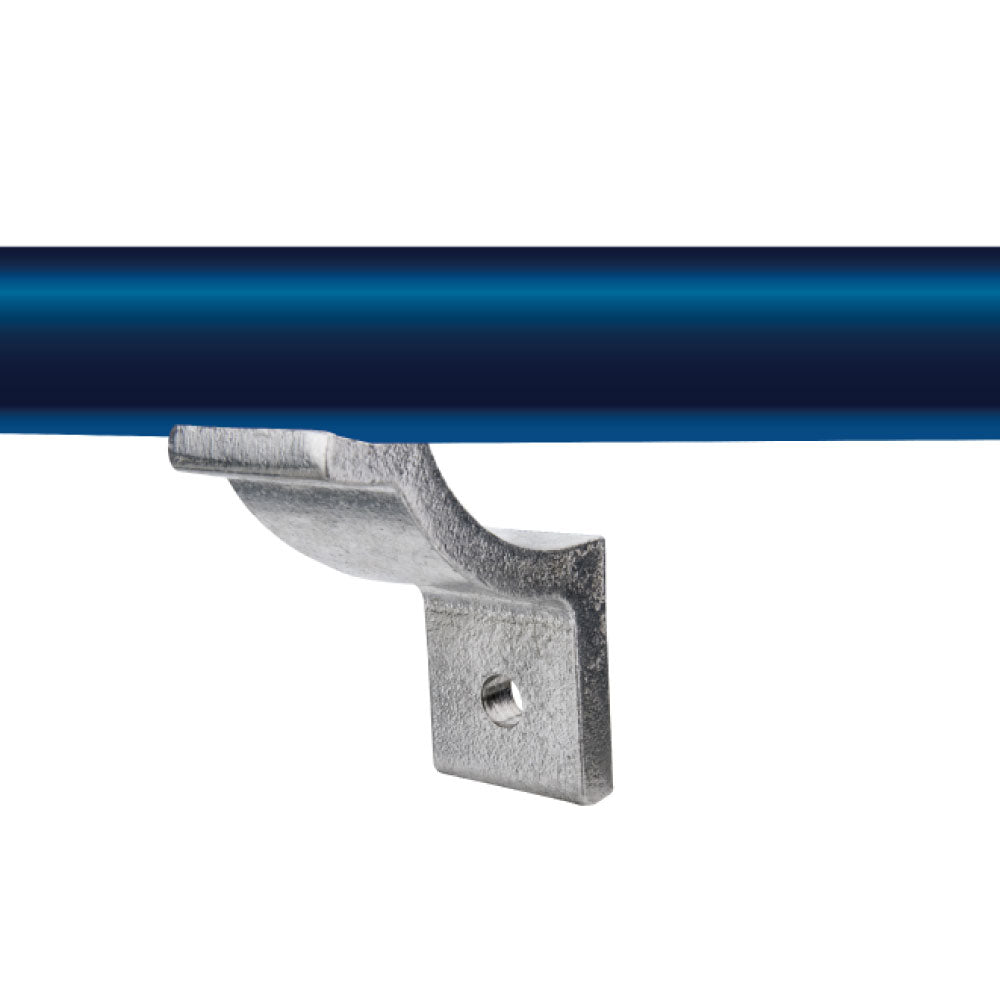

The KUPO KPC-A1282A Handrail Bracket is an aluminum-magnesium alloy fitting for 48.3 mm outside diameter pipe, matching 1-1/2" nominal Schedule 40 pipe. It is made for handrails, guardrails, display structures, venue builds, and tubular installations.
Why It Matters
This fitting is part of the 48.3 mm Schedule 40 pipe family, and that size should stay clear. KPC-A1282A gives installers a polished corrosion-resistant bracket that can be installed with a hex key and recessed galvanized steel grub screws, without welding or specialist labor.
Key Features
- Fits 48.3 mm outside diameter pipe, matching 1-1/2" nominal Schedule 40 pipe
- Aluminum-magnesium alloy body offers corrosion resistance, low weight, and a clean polished appearance
- 3/8" recessed grub screw supports secure installation
- Hex-key installation avoids welding and helps simplify on-site assembly
- Nominal dimension caution is appropriate because cast fitting dimensions may vary slightly
Additional Technical Notes
- Fastener: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
- Application: Handrail, guardrail, display, venue, and tubular structure applications
Applications
Use it for handrails, guardrails, display structures, film-industry builds, playgrounds, venues, retail installations, and tubular frameworks using 48.3 mm pipe.
Compatibility
This model is for 48.3 mm outside diameter pipe only. Do not list it as a 42.4 mm fitting.
