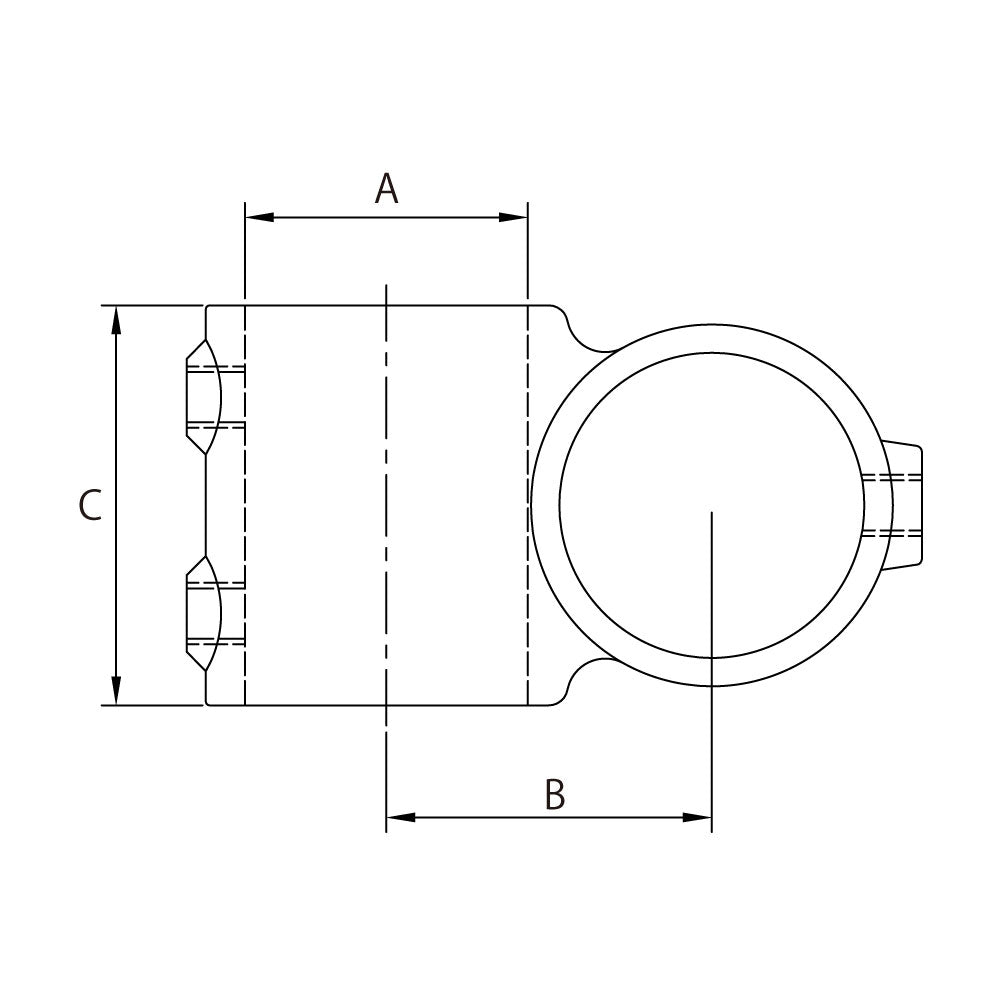

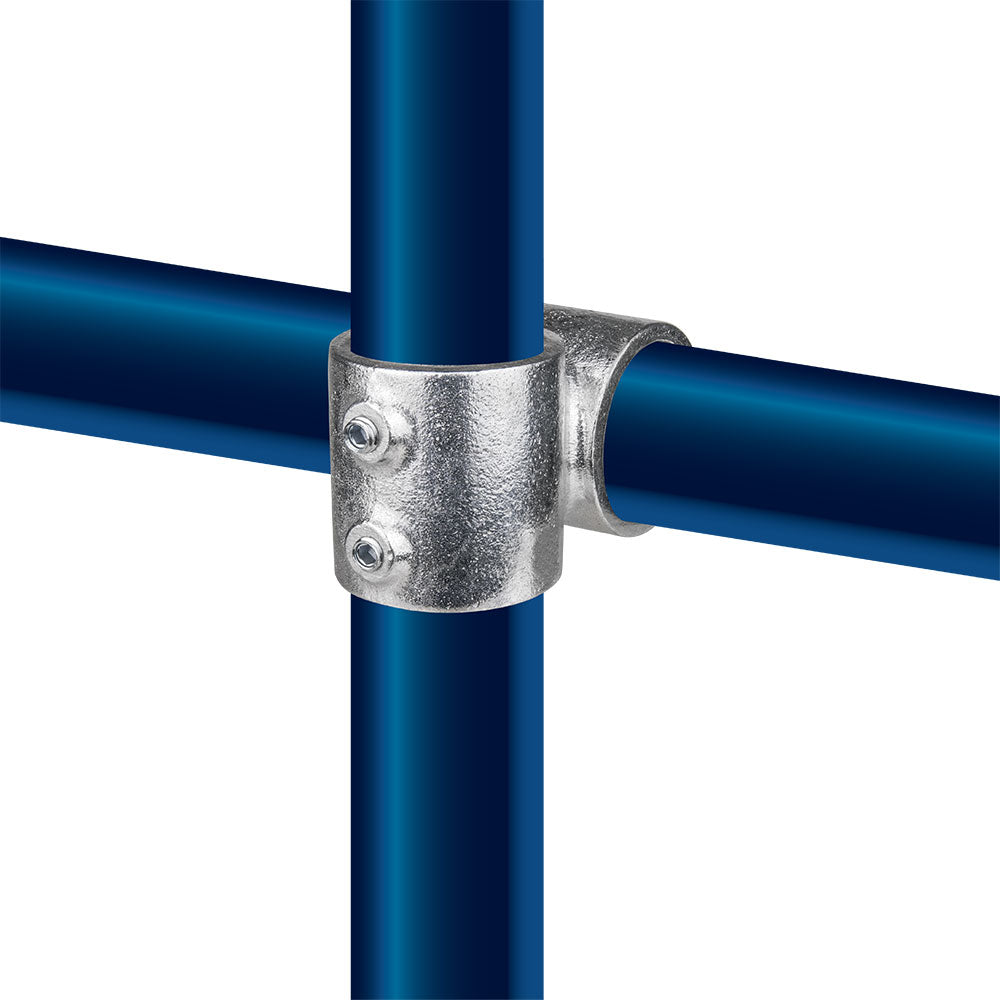

The KPC-A1412 90? Crossover is an A535 aluminum-magnesium alloy slip-on pipe clamp for 42.40 mm (1.66") outside diameter tube. It lets two pipes pass each other at right angles in a non-coplanar joint, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Cross-bracing and intersecting frames can require one pipe to pass another cleanly. This alloy crossover keeps that right-angle pass-over in a single polished fitting.
Key Features
Non-coplanar 90° crossover lets two pipes pass at right angles in one joint.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for cross-bracing, intersecting display frames, guardrails, exhibition builds, pipe grids, outdoor structures, and visual retail frames.
Compatibility
Fits 42.40 mm (1.66") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1212 version fits the companion tube size in the same KPC-A family.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Is this a tee or a pass-over fitting?
It is a pass-over fitting. Two pipes cross at right angles without becoming a simple tee branch.
Which tube size does this version fit?
This version fits 42.40 mm (1.66") outside diameter tube. Check the sister model if your structure uses the companion KPC-A tube size.
