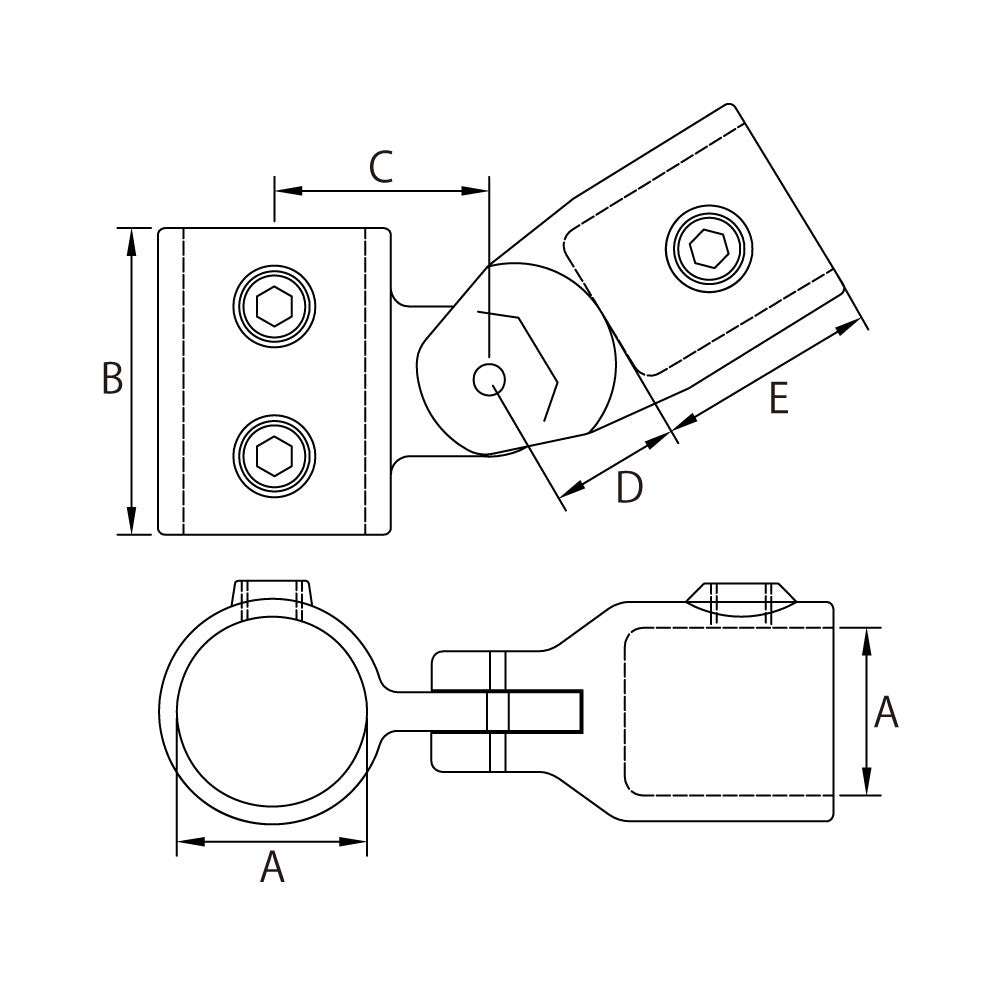

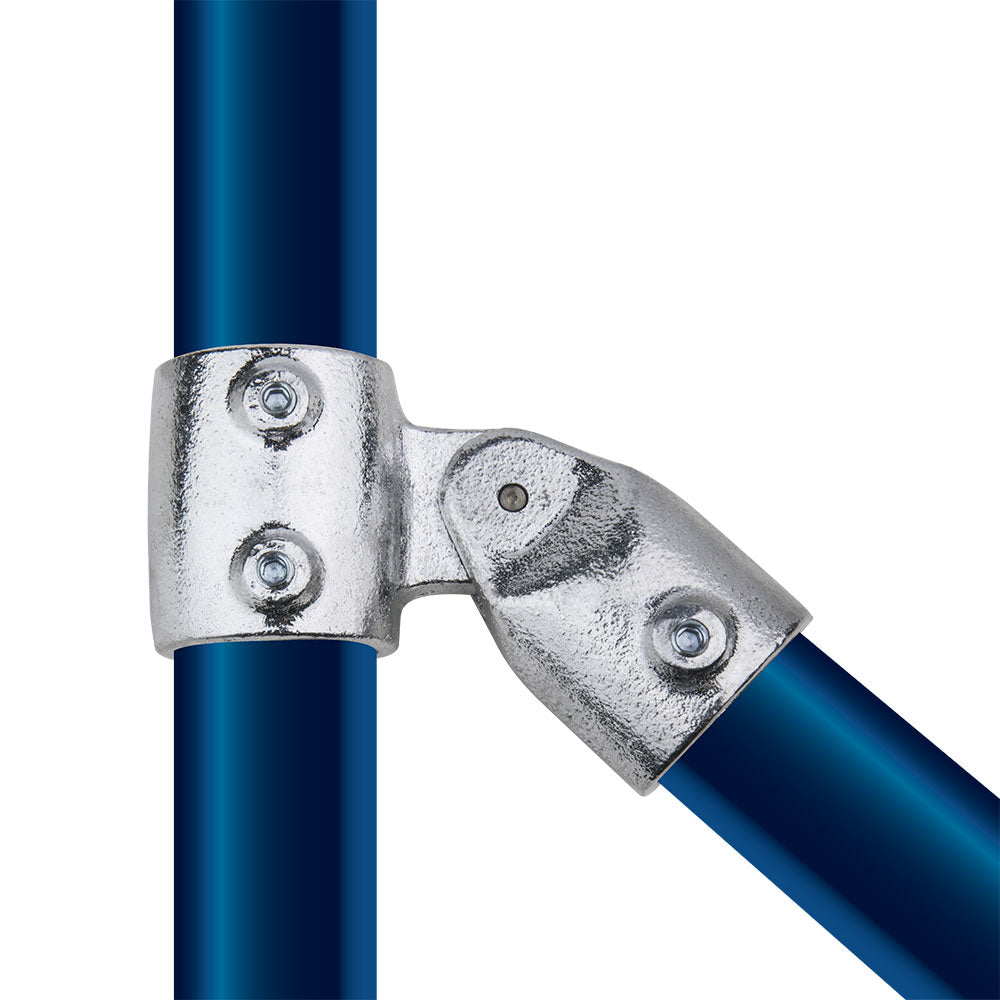

The KPC-A1417ADJ Swivel Elbow / Tee is an A535 aluminum-magnesium alloy slip-on pipe clamp for 42.40 mm (1.66") outside diameter tube. It pairs with the matching male tab to create an articulating adjustable-angle joint, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Diagonal bracing and non-square frames need a joint that can articulate before it is locked. This body forms the socket side of that adjustable alloy joint.
Key Features
Swivel elbow and tee body pairs with the matching male tab for adjustable angle work.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the pipe securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for diagonal bracing, non-square display frames, architectural pipe geometry, scenic structures, guardrails, and installations where the final angle is set on site.
Compatibility
Fits 42.40 mm (1.66") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1217ADJ version fits the companion tube size in the same KPC-A family.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting, not one of the cast-iron KPC pipe clamps.
Does this work by itself as the full swivel joint?
It is the swivel elbow and tee body and is designed to pair with the matching male tab to complete the articulating joint.
Which tube size does this version fit?
This version fits 42.40 mm (1.66") outside diameter tube. Check the sister model if your structure uses the companion KPC-A tube size.
