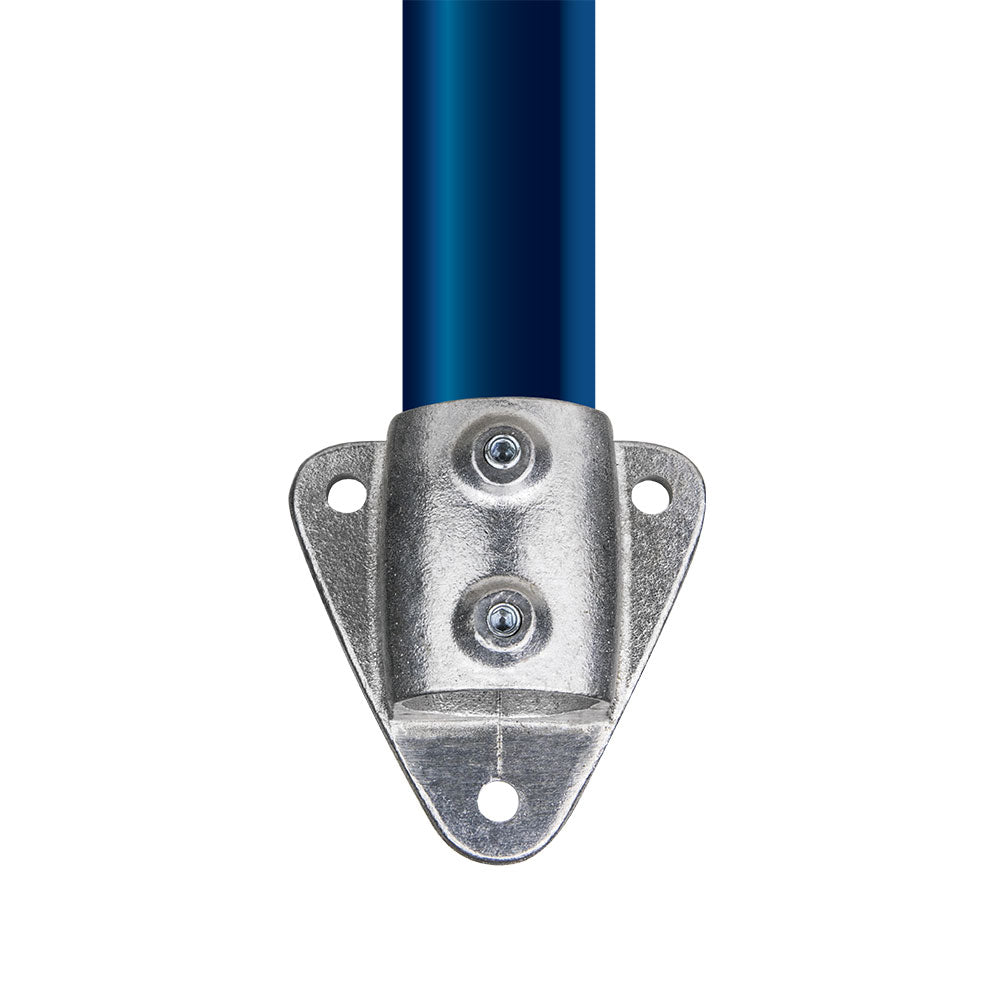

The KPC-A1450 Side Palm Fixing is an A535 aluminum-magnesium alloy slip-on pipe clamp for 42.40 mm (1.66") outside diameter tube. It fixes tube parallel to a wall or panel surface using a flat side palm, using 3/8" galvanized steel recessed grub screws with reverse knurled cup points for a no-weld structure that installs with a standard hex key.
Why It Matters
Sometimes the tube needs to sit cleanly against a surface instead of standing away from it. This side palm fitting makes that close mounting path straightforward.
Key Features
Flat palm anchors to wood, panel, or machine-screw mounting surfaces while the saddle clamps the tube.
A535 aluminum-magnesium alloy keeps the fitting lightweight and corrosion resistant for outdoor or harsh environments.
3/8" galvanized steel recessed grub screws with reverse knurled cup points hold the tube securely.
Standard hex-key installation avoids welding, specialist labor, and permanent fabrication.
Additional Technical Notes
Set Screws: 3/8" galvanized steel recessed grub screw with reverse knurled cup point
Applications
Use for wall-supported rails, panel-mounted tube, shelf frames, retail displays, signage structures, restaurant fit-outs, and pipework that needs a close side fixing.
Compatibility
Fits 42.40 mm (1.66") outside diameter tube for Schedule 40 nominal pipe. The related KPC-A1250 version fits 48.30 mm tube.
Frequently Asked Questions
Is this part of the aluminum-magnesium clamp family?
Yes. It is an A535 aluminum-magnesium alloy slip-on fitting for lightweight, corrosion-resistant pipe structures.
Does the tube sit parallel to the wall?
Yes. The side palm fixing is meant for holding tube parallel to a wall, panel, or similar surface.
Which tube size does this version fit?
This A1400-series version fits 42.40 mm outside diameter tube. The A1200-series sister version fits 48.30 mm tube.
