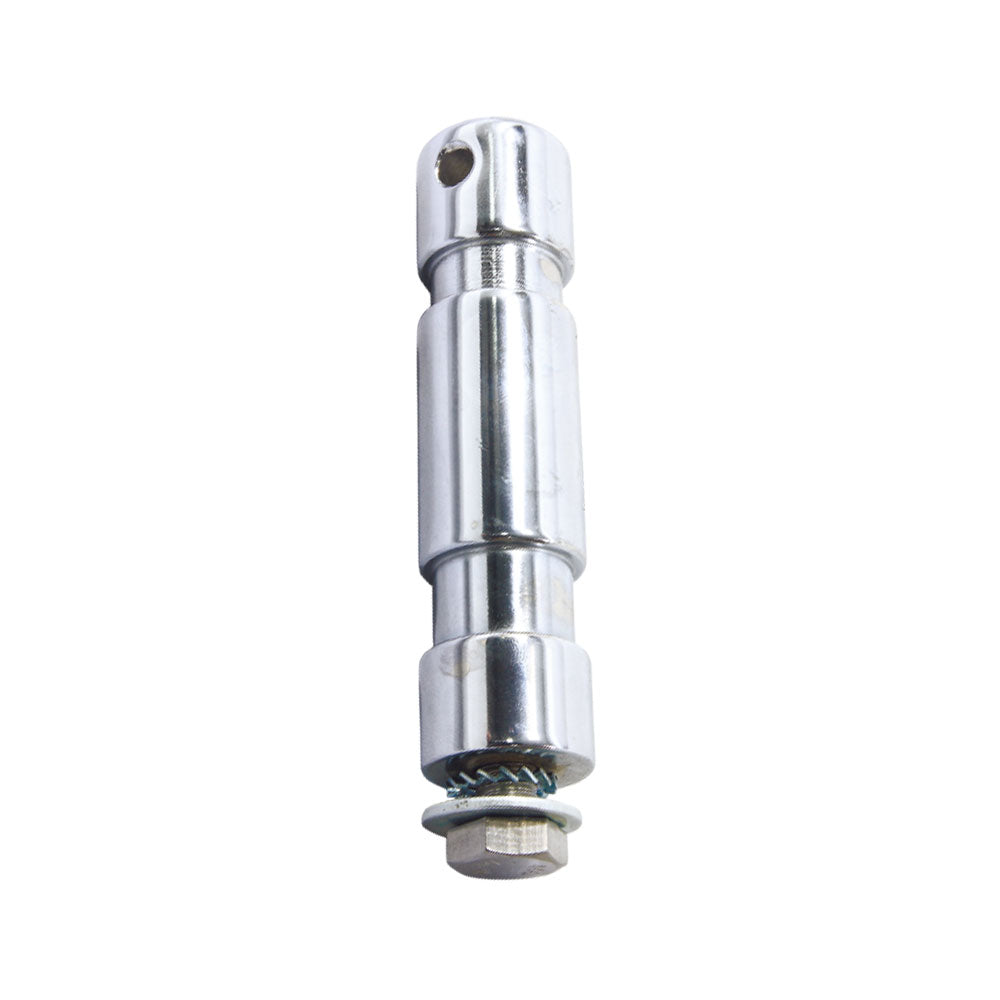

The KUPO KS-034 is a solid chrome-plated steel 28 mm TV spigot tapped for an M10 screw with washer. It is designed for mounting a lighting fixture on a yoke and placing the assembly directly into a stand or TV clamp with a 28 mm receiver.
Why It Matters
This is the tapped M10 version of the robust 28 mm spigot family. KS-034 gives the fixture a stable junior / TV-style interface, with an additional safety-pin hole for another retention point when the receiving hardware supports it.
Key Features
28 mm TV spigot fits junior receivers, stands, and TV clamps
Tapped M10 screw with washer supports compatible yoke mounting
Additional safety-pin hole provides another retention point when supported
Chrome-plated steel construction gives the adapter a robust professional feel

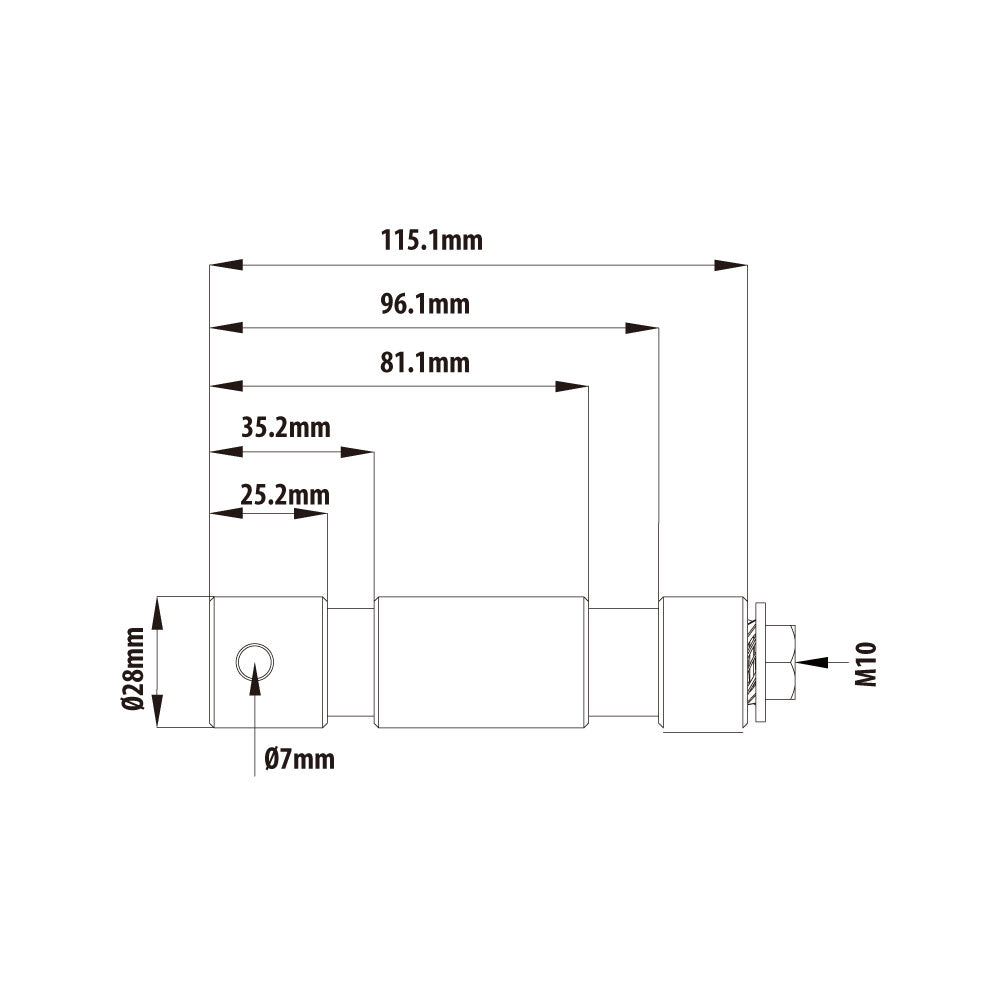

125.3 mm length and 500 g weight suit heavier fixture adapter use
Applications
Use it for professional lighting fixtures that need an M10 tapped 28 mm TV spigot for direct yoke-to-stand or TV clamp mounting.
Compatibility
KS-034 is the M10 tapped version. KS-034-T is the 1/2"-13 threaded sister model.
Frequently Asked Questions
What thread is KS-034 tapped for?
It is tapped for an M10 screw with washer.
Does it have a safety-pin hole?
Yes. The specification lists an additional hole for a safety pin.
How is it different from KS-034-T?
KS-034 is M10. KS-034-T is the 1/2"-13 version.
