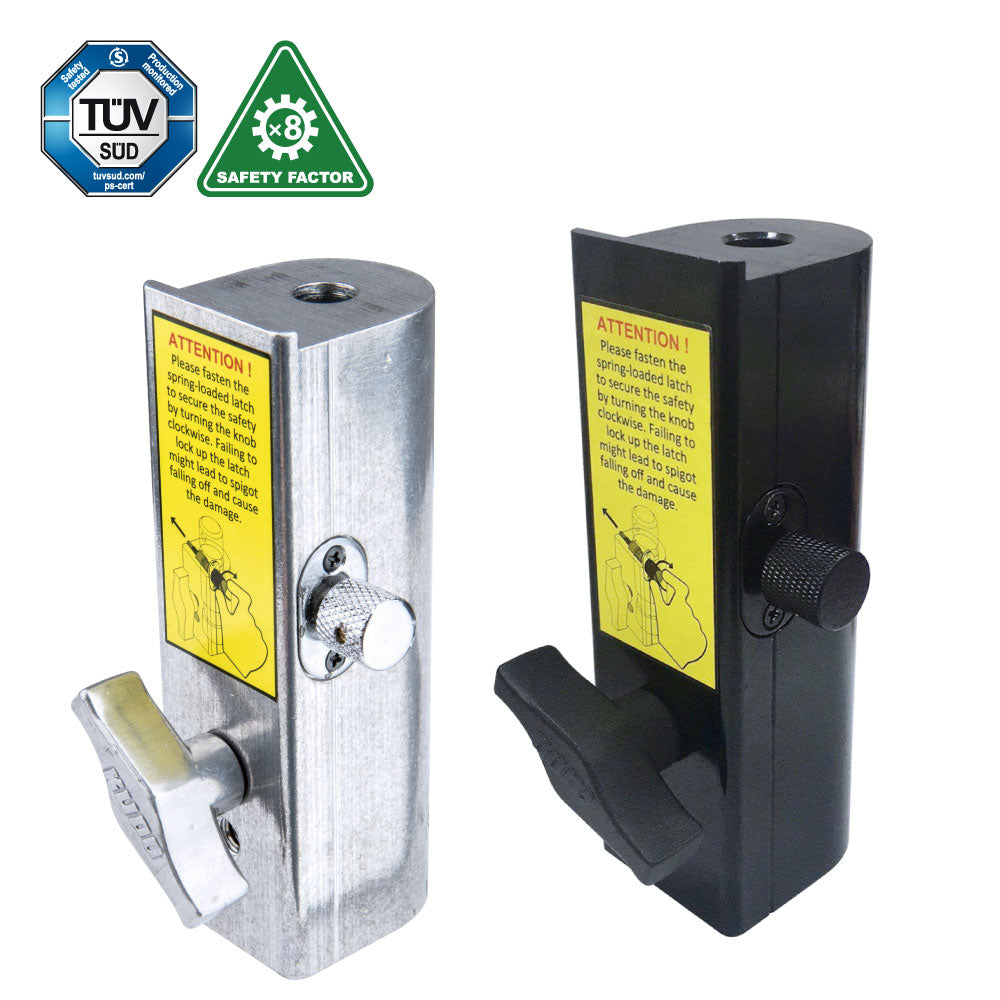

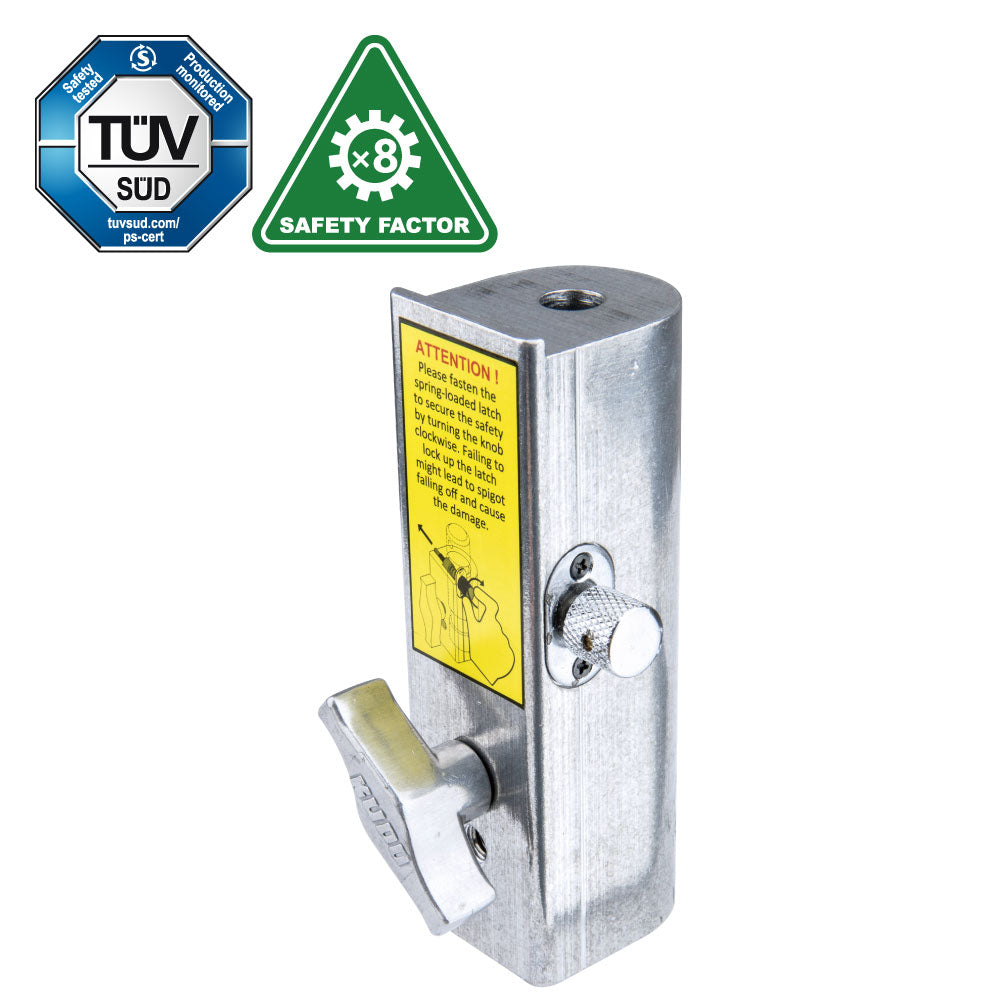

The KS-089 Universal TV Quick Receiver accepts 28 mm DIN and EURO spigots used on many TV and studio lighting fixtures. A spring latch engages as the spigot enters the receiver, then the locking knob adds positive secondary security for fast fixture swaps on grids, truss, and studio clamps.
Why It Matters
Studio changeovers reward hardware that is fast without feeling casual. This receiver bridges clamp inventory and 28 mm spigotted fixtures with a clear latch-and-knob workflow crews can repeat all day.
Key Features
100 kg Working Load Limit (WLL) supports demanding TV and studio fixture use.
Spring latch plus locking knob gives a quick mount with secondary locking.
28 mm DIN and EURO receiver fits the common spigot format used on many studio luminaires.
700 g steel construction adds useful capacity without much extra mass.
Applications
Use for TV studios, theaters, entertainment venues, grid systems, truss rigs, and lighting packages where 28 mm spigotted fixtures are mounted and swapped frequently.
Compatibility
Designed for 28 mm DIN and EURO spigots and compatible lighting clamps for grid or truss diameters from 2" up to 60 mm; mount thread is M10.
Frequently Asked Questions
Will it accept a 28 mm TV spigot?
Yes. It is engineered for 28 mm DIN and EURO spigots used on many TV and studio fixtures.
Is the spring latch the only safety?
No. The spring latch catches the spigot, and the locking knob adds a second positive lock.
What kind of clamp does it pair with?
It is built to pair with compatible lighting clamps for grid or truss diameters from 2" up to 60 mm.
