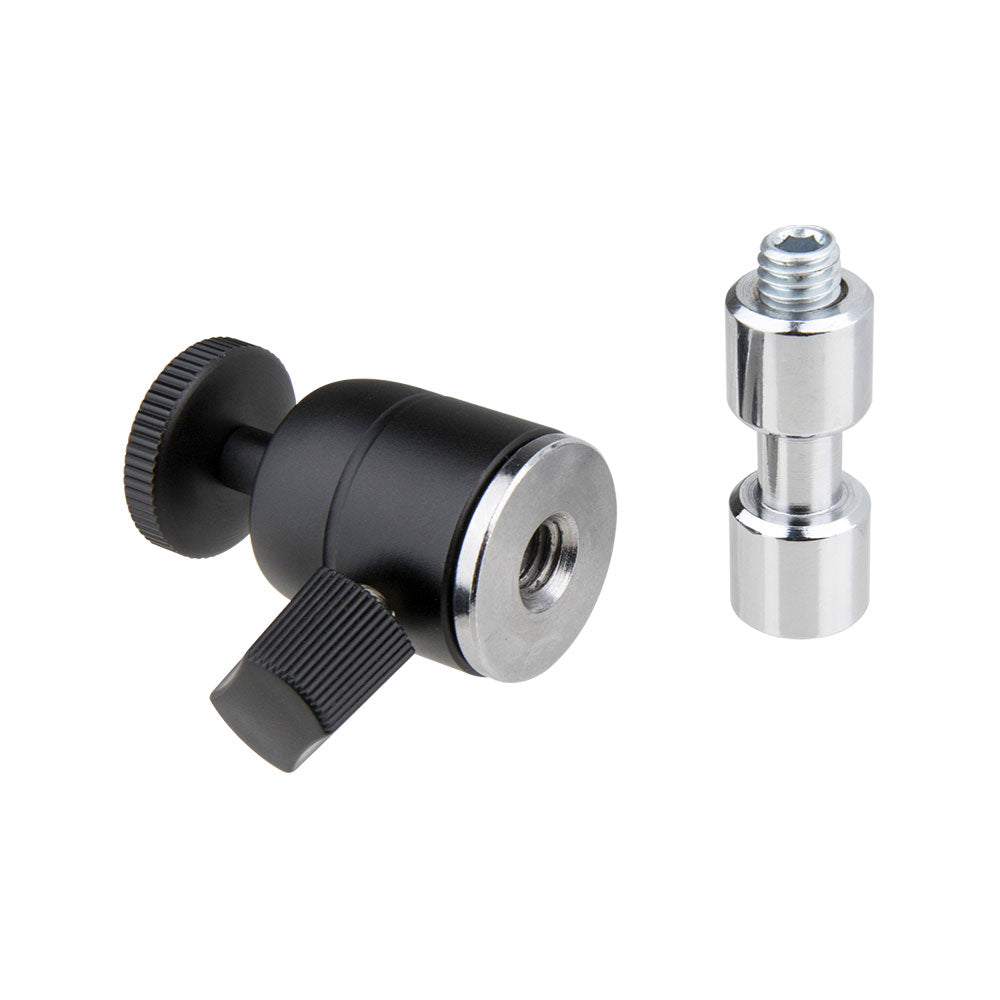

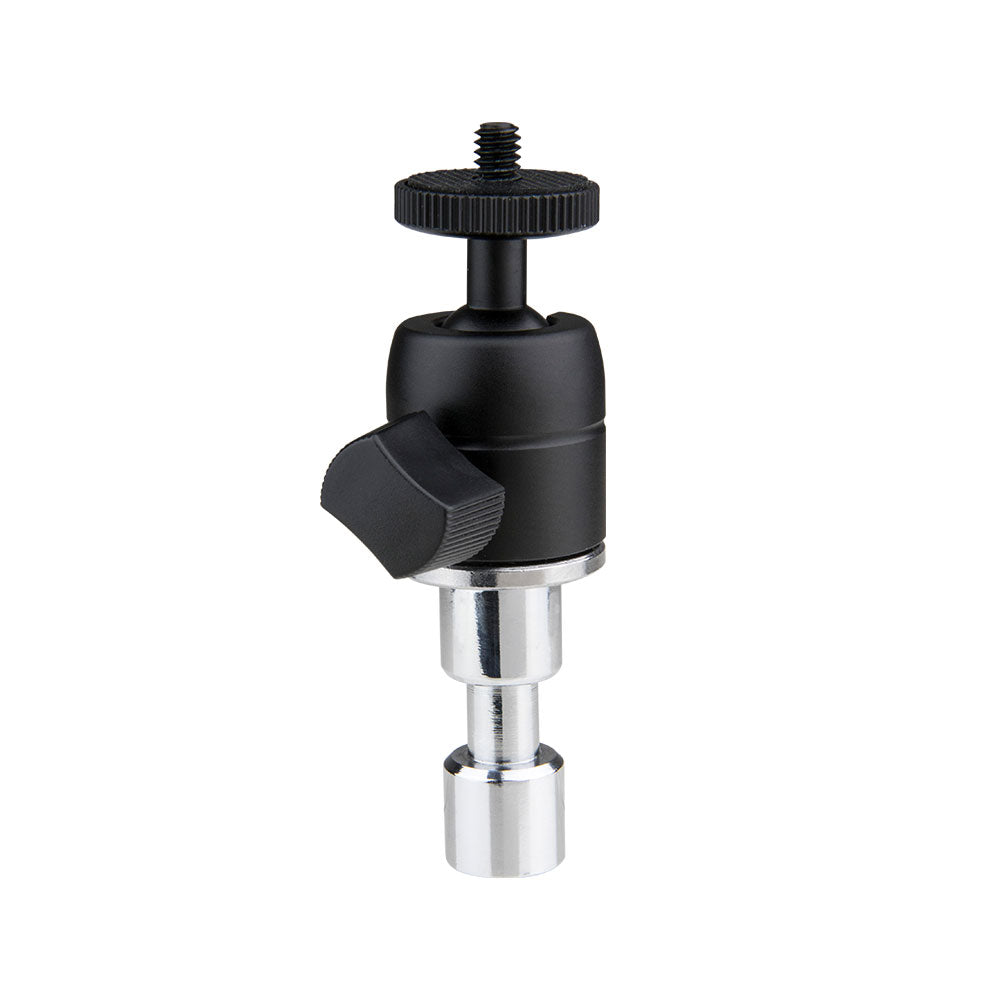

The KUPO KS-CB09 is a mini ball head with a 17 mm DABO spigot for Japanese-type 17 mm receivers. It provides all-direction ball movement and a 90° tilt groove for positioning small cameras or accessories.
Why It Matters
Small camera and accessory mounts often need subtle angle changes in tight spaces. KS-CB09 keeps the 17 mm receiver context intact while adding a one-action ball head and standard 1/4"-20 mounting interfaces on top and bottom.
Key Features
17 mm DABO spigot suits Japanese-type 17 mm receivers
One-action knob loosens the ball head for all-direction movement
Extra groove allows 90° tilt in one direction
Top 1/4"-20 male thread includes a 27.3 mm round plate
Bottom includes a 1/4"-20 female thread with the 17 mm spigot
Applications

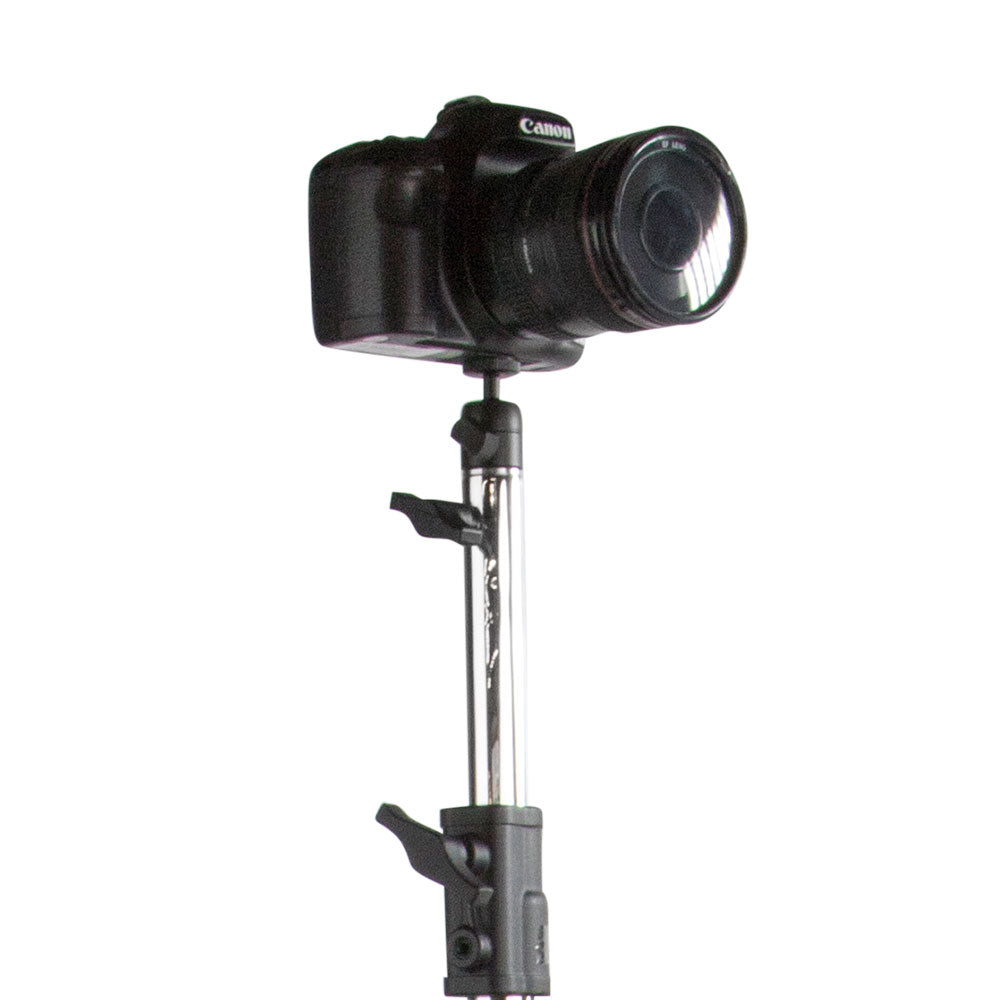

Use it for small cameras, compact accessories, and specialty 17 mm receiver setups that need quick angle adjustment in studio or location work.
Compatibility
Designed primarily for Japanese-type 17 mm receivers, with 1/4"-20 male top and 1/4"-20 female bottom interfaces.
Frequently Asked Questions
What does the 17 mm DABO spigot fit?
It is designed primarily for Japanese-type 17 mm receivers.
Can the ball head tilt 90°?
Yes. An extra groove allows 90° tilt in one direction.
What thread is on the top plate?
The top interface is a 1/4"-20 male thread with a 27.3 mm round plate.
