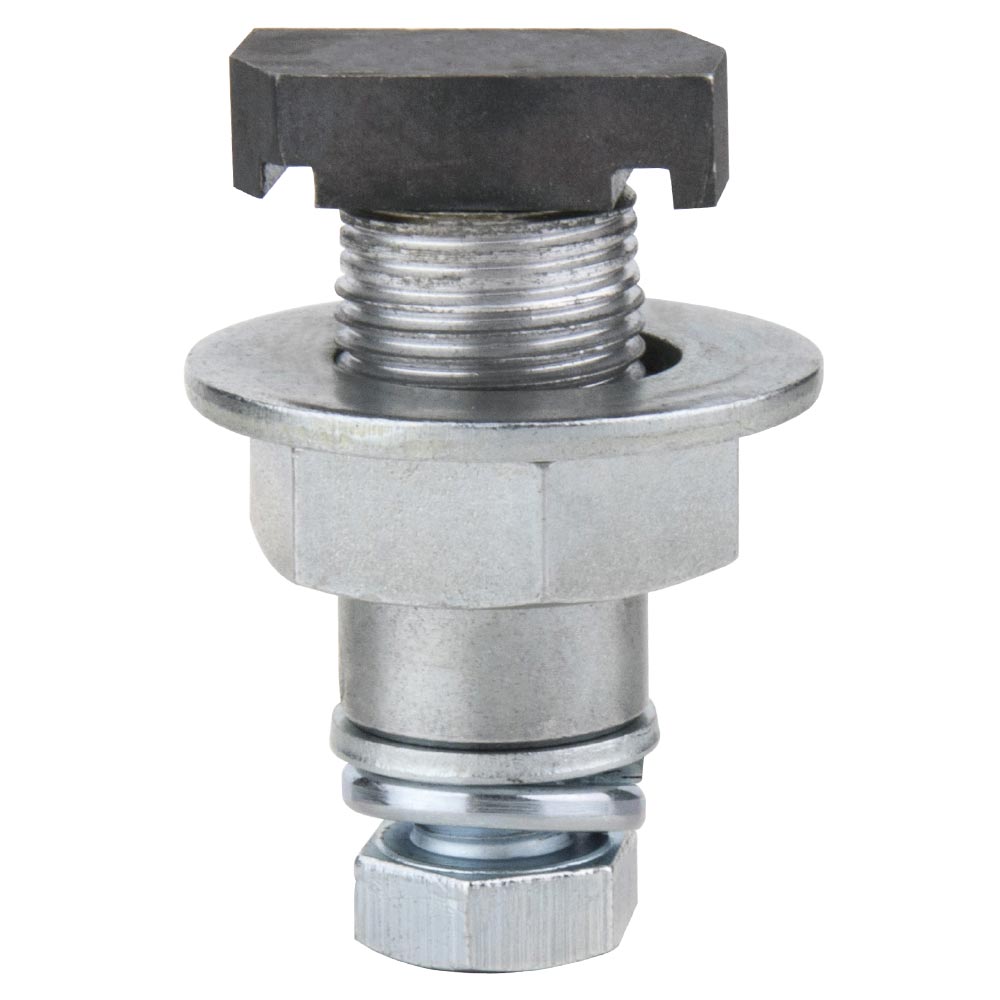

The KUPO KT-056 is a strut channel adapter for hanging a fixture or pipe from a standard 1-5/8" wide strut channel. It uses a welded grooved top piece that inserts into the channel and rotates into position, then locks down with the large hex nut so the load point can be set quickly along the track.
Why It Matters
Strut channel is useful because it is adjustable, but only if the hanger is quick to place and secure once positioned. KT-056 gives crews a simple 220 kg Working Load Limit (WLL) adapter with a 1/2"-13 nut and bolt for attaching compatible hardware.
Key Features
Fits standard 1-5/8" wide strut channel for common venue and install track systems
Grooved top piece inserts into the channel and rotates 90° for fast placement
220 kg Working Load Limit (WLL) supports fixture or pipe hanging within the rated setup
Zinc plated steel construction resists wear in repeated installation work
Supplied 1/2"-13 nut and bolt gives a straightforward attachment point
Applications
Use it for hanging fixtures, pipe, or compatible hardware from strut channel in theatres, studios, venues, broadcast spaces, and fixed installation environments.
Compatibility
Designed for standard 1-5/8" wide strut channel. Use with compatible hardware attached through the supplied 1/2"-13 nut and bolt.
Frequently Asked Questions
How does KT-056 lock into the strut channel?

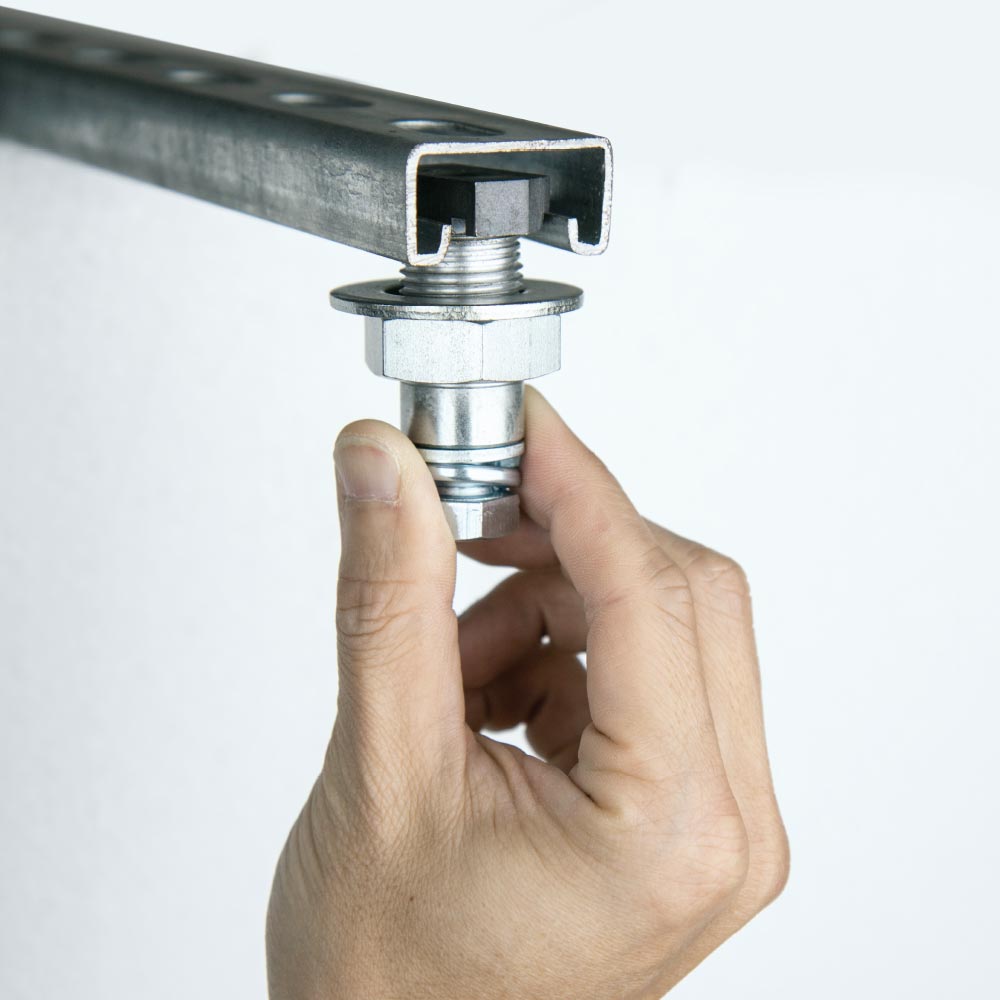

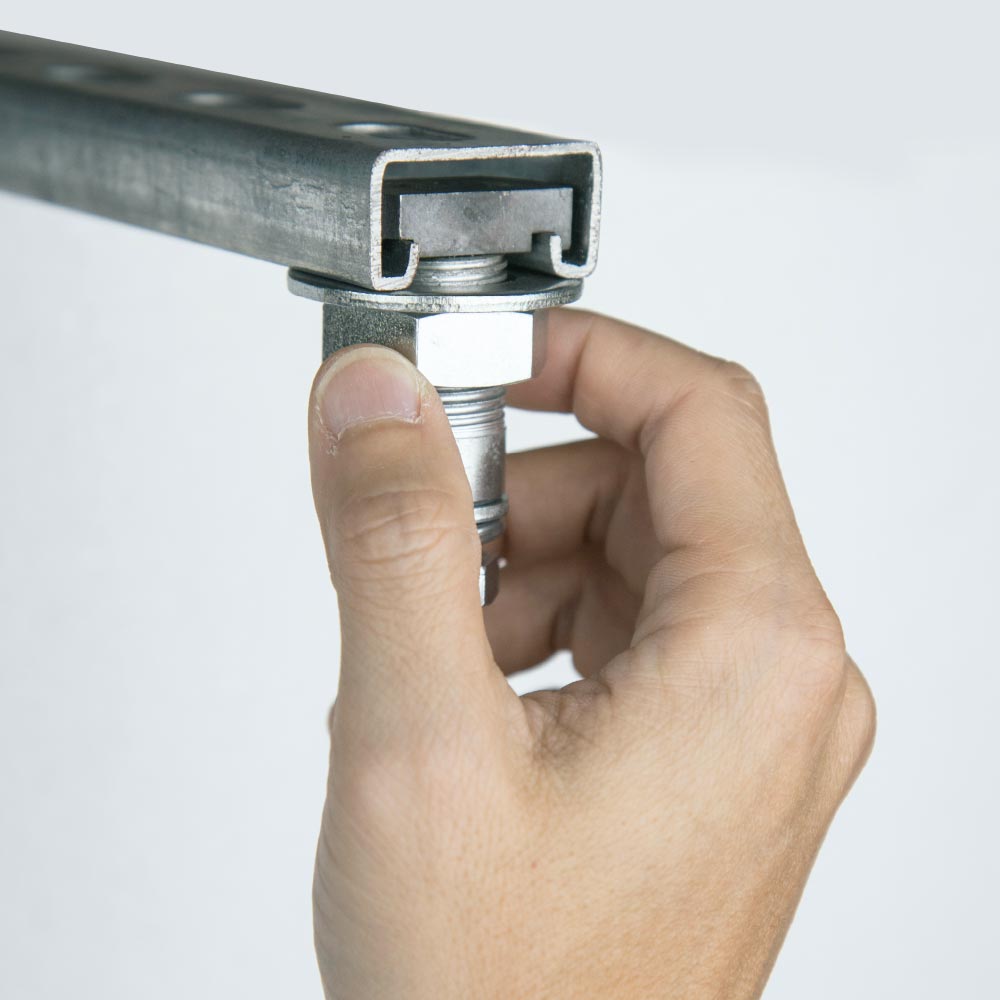

Insert the adapter into the channel, rotate it 90°, then tighten the large hex nut to lock it in place.
Is the WLL 200 kg or 220 kg?
Use 220 kg (440 lb). The specification note says the specification confirms 220 kg where older text had an internal contradiction.
What attachment does this version include?
KT-056 includes a 1/2"-13 nut and bolt for attaching compatible fixture or pipe hardware.
