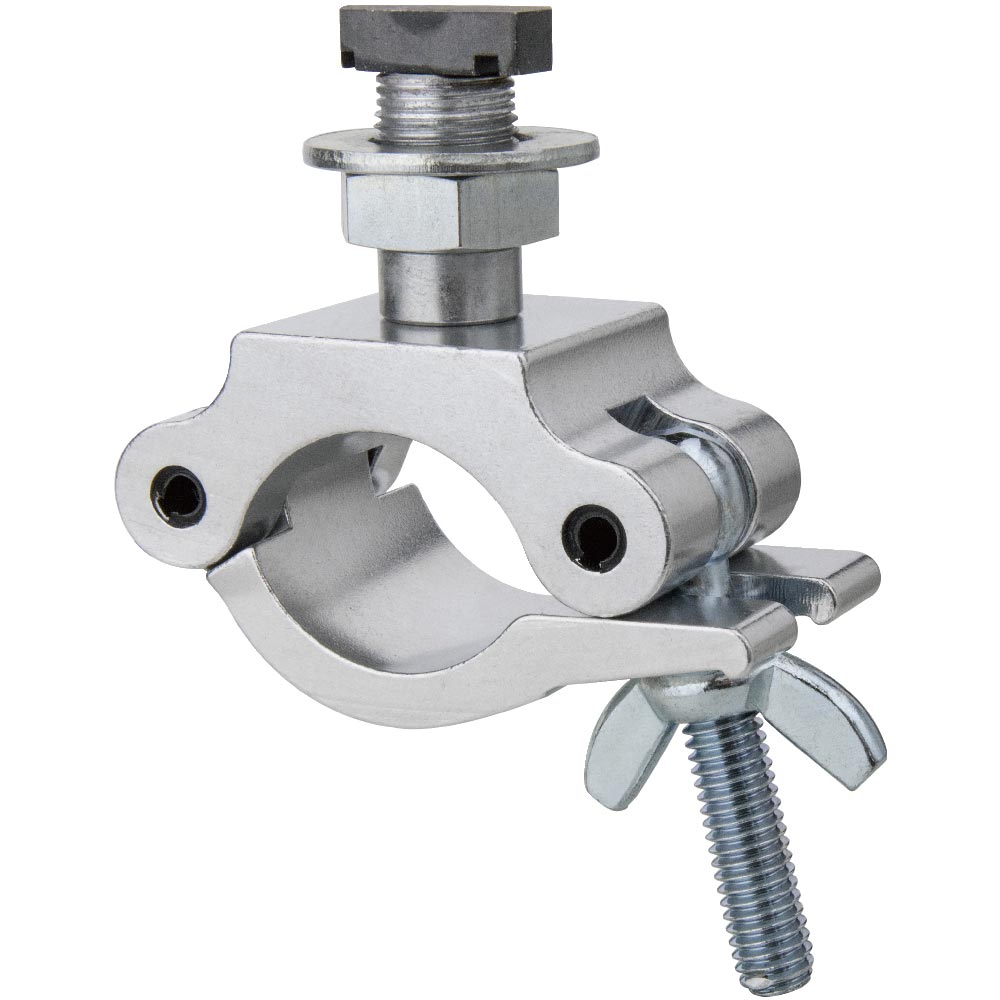

The KUPO KT-057 is a strut channel adapter with an integrated half coupler for 2" (50 mm) tube. It lets a pipe be hung from standard 1-5/8" wide strut channel while retaining the quick placement behavior of the KT adapter family.
Why It Matters
When the end goal is pipe support, using a version with the coupler already built in removes extra parts from the rig. KT-057 combines the strut-channel locking piece and tube clamp into one rated adapter, which keeps installs cleaner and faster to inspect.
Key Features
Integrated half coupler fits 2" (50 mm) tube for direct pipe hanging from strut channel
Grooved channel insert rotates into the track and locks with the large hex nut
220 kg Working Load Limit (WLL) gives a clear rating for the adapter assembly
Zinc plated steel and aluminum construction balances durability with manageable weight
Useful for positioning pipe runs along a channel without drilling new fixed points
Applications
Use it for pipe hanging, lighting pipe support, venue grids, studio installations, and temporary structures that need a 2" tube mounted from strut channel.
Compatibility

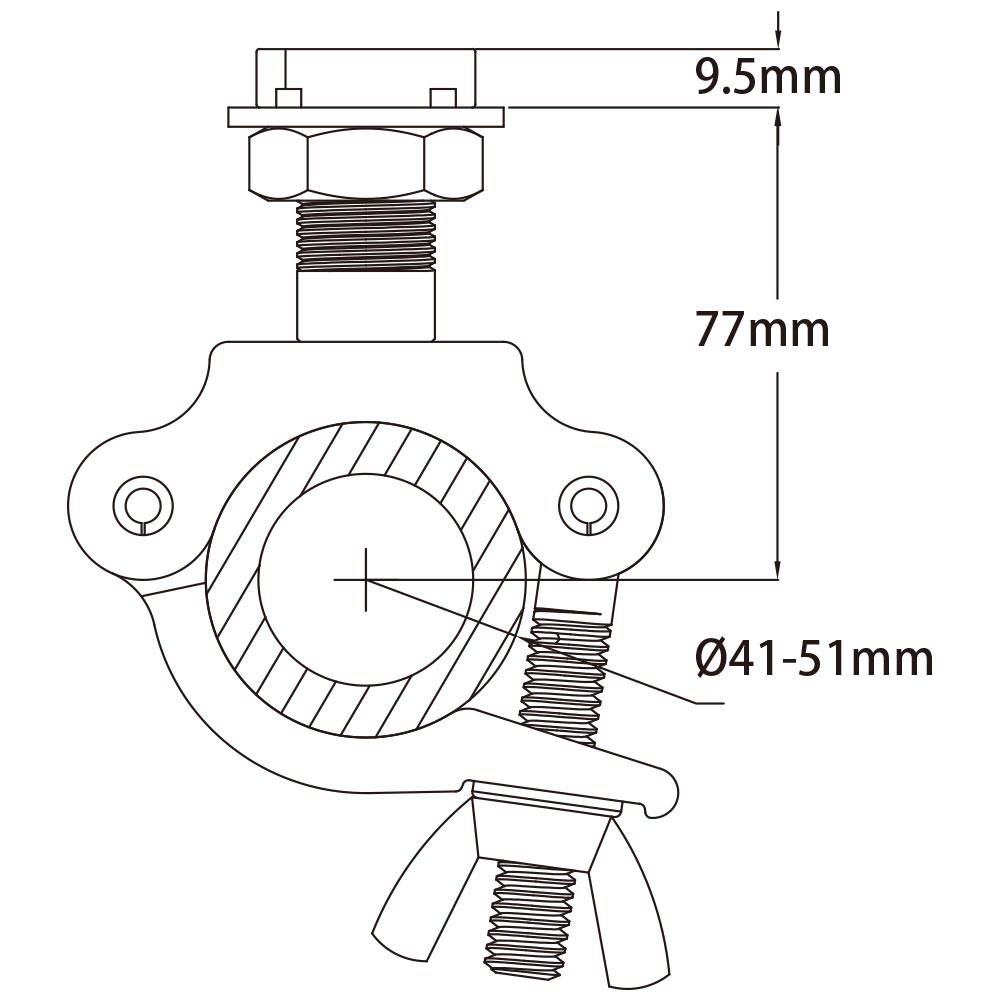

Fits standard 1-5/8" wide strut channel and includes a half coupler for 2" (50 mm) tube.
Frequently Asked Questions
What is the difference between KT-056 and KT-057?
KT-056 provides a 1/2"-13 nut and bolt. KT-057 adds a half coupler for 2" (50 mm) tube, so it is the better choice when the load is a pipe.
Does this fit normal strut channel?
Yes. It is intended for standard 1-5/8" wide strut channel.
Can the pipe position be adjusted later?
Yes, once unloaded and loosened properly, the adapter can be repositioned along the strut channel and locked again.
