Overview

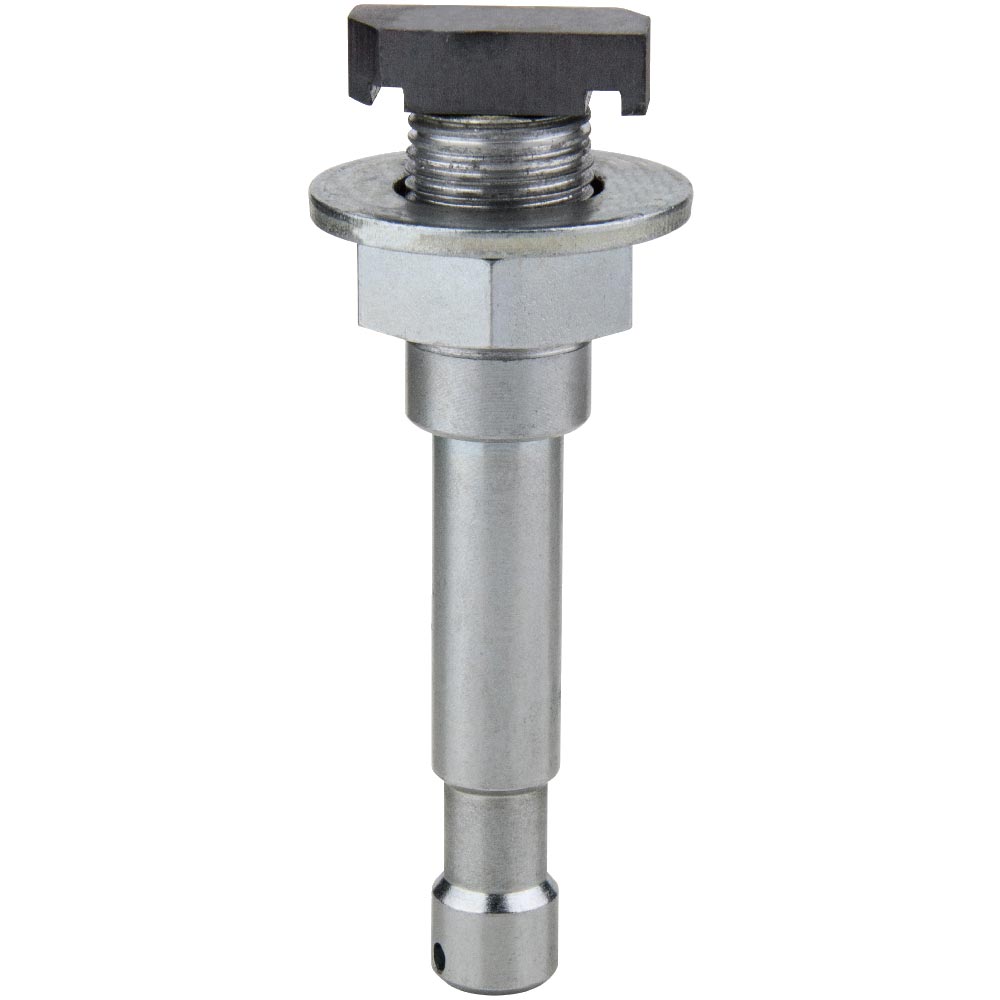

The KUPO KT-058 is a strut channel adapter with a 16 mm baby stud for mounting compatible fixtures or accessories from a standard 1-5/8" wide strut channel. It gives small lighting and grip equipment a direct baby-pin mounting point on channel-based overhead or wall systems.
Why It Matters
Many smaller fixtures do not need a pipe coupler or a large yoke point. KT-058 gives those fixtures a familiar 16 mm baby stud at the strut channel, keeping the installation simple and reducing the stack of adapters between the channel and the light.
Key Features
- 16 mm baby stud provides a direct mounting point for compatible baby-receiver fixtures and accessories

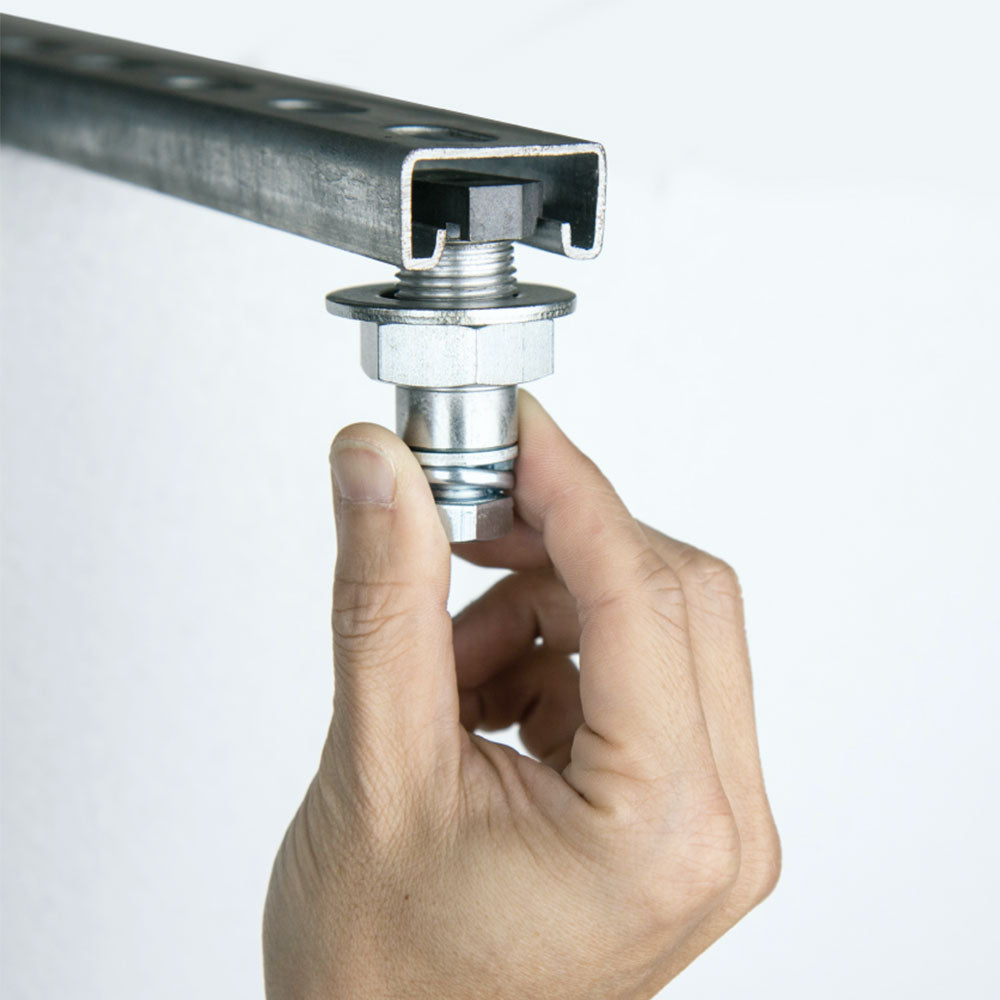

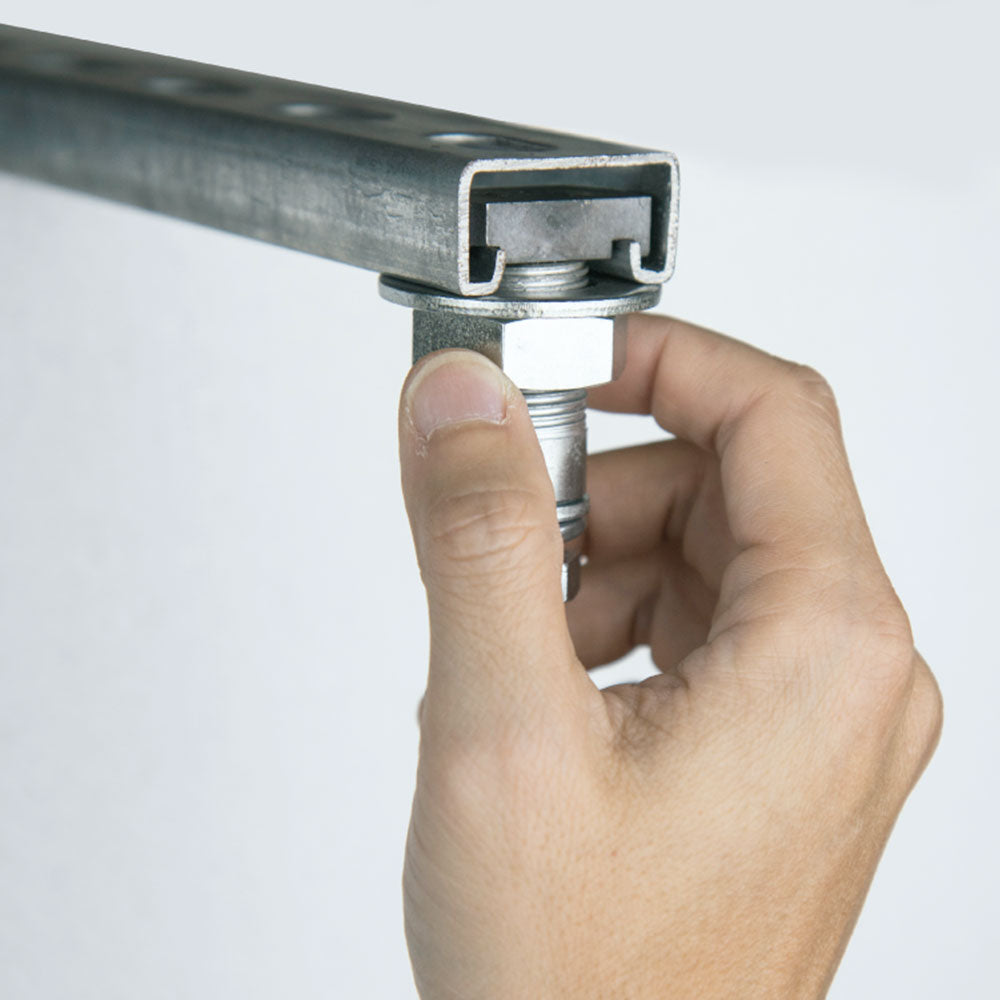

- Grooved top piece inserts into strut channel and rotates 90° for fast positioning
- 220 kg listed loading value gives clear capacity for the adapter body when used correctly
- Zinc plated steel construction suits repeated installation and venue use
- Compact 300 g body keeps the channel attachment tidy for smaller fixtures
Applications
Use it for mounting baby-receiver fixtures, small accessories, practical lights, or lightweight hardware from strut channel in studios, stages, and installation spaces.
Compatibility
Designed for standard 1-5/8" wide strut channel and equipment that accepts a 16 mm baby stud. Older text shows a 200 kg line, but the corrected family value is 220 kg (440 lb).
