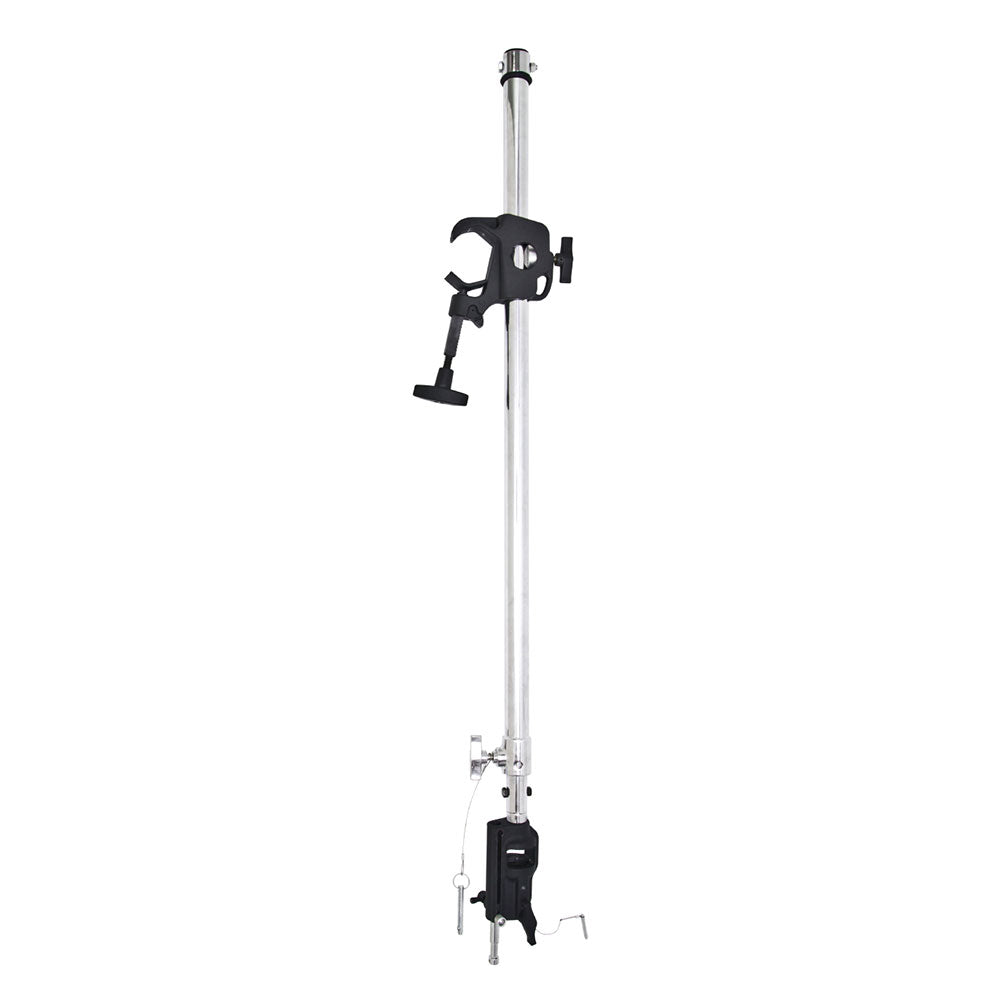

The KTHU-0510 Long Telescopic Hanger with Universal Head suspends lighting fixtures and equipment overhead while keeping the floor below clear. Built from chrome-plated steel, it clamps to 25-55 mm tubes with KUPO's patented quick-release clamp and extends through a 5 feet to 10 feet (152.4 cm to 304.8 cm) working range for overhead positioning.
Why It Matters
The universal head is for crews who do not want to choose between baby-pin and junior-receiver fixtures before the hang. It provides both interfaces on one head, with different load limits for each.
Key Features

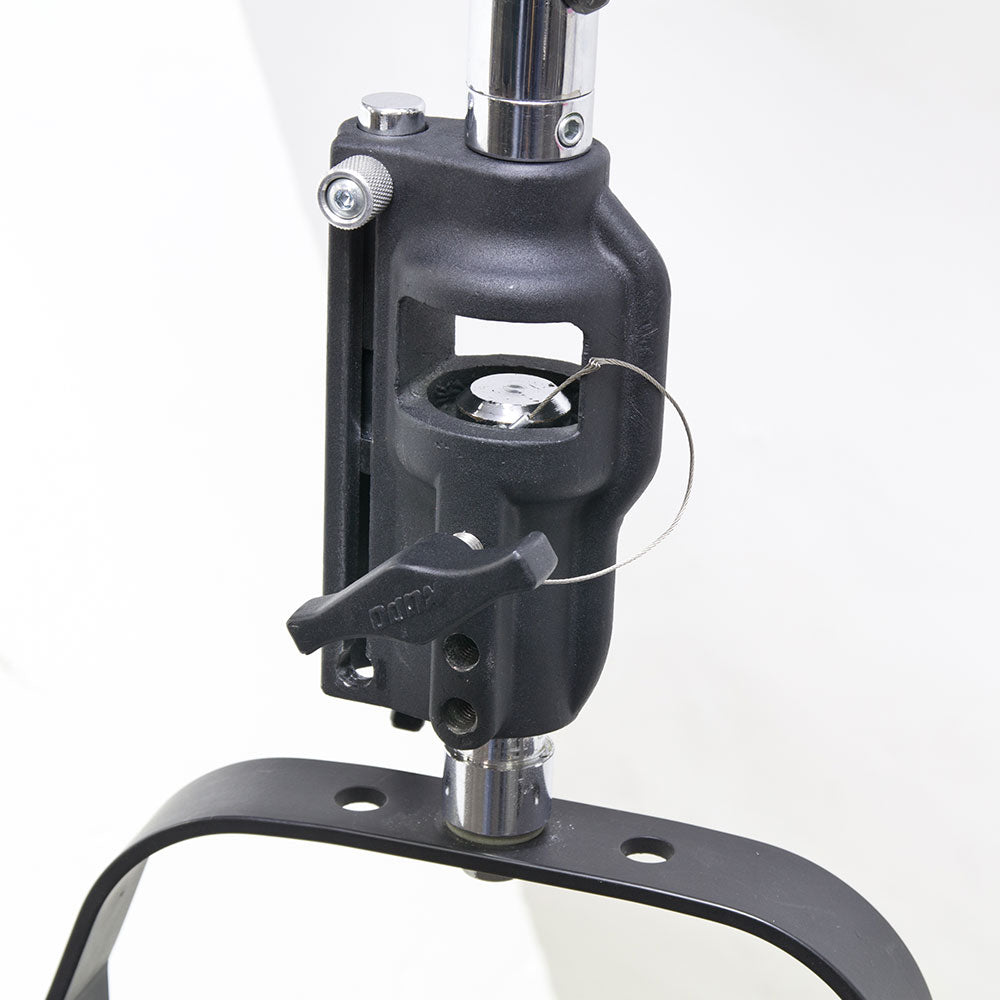

Universal head provides both a 5/8" (16 mm) baby pin and a 28 mm junior receiver.
40 kg (88 lb) Working Load Limit (WLL) supports junior-receiver or stirrup-head fixture use.

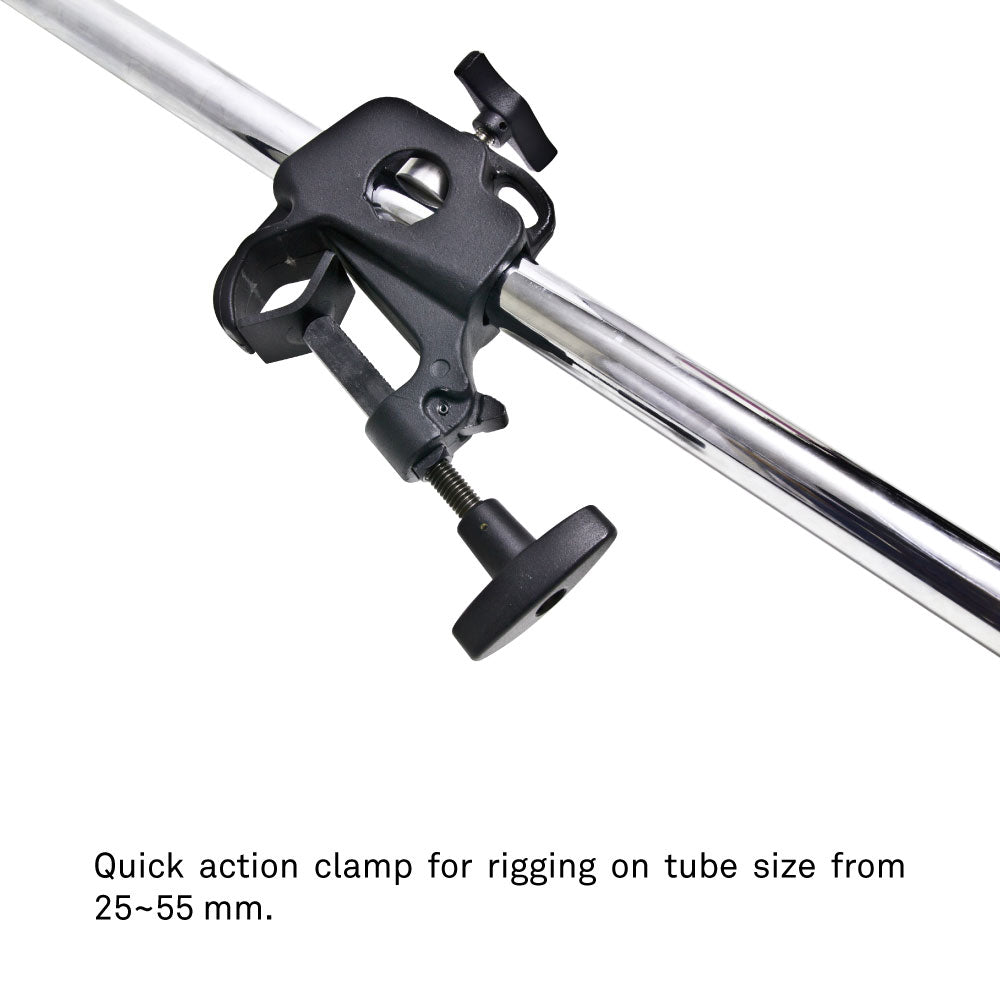

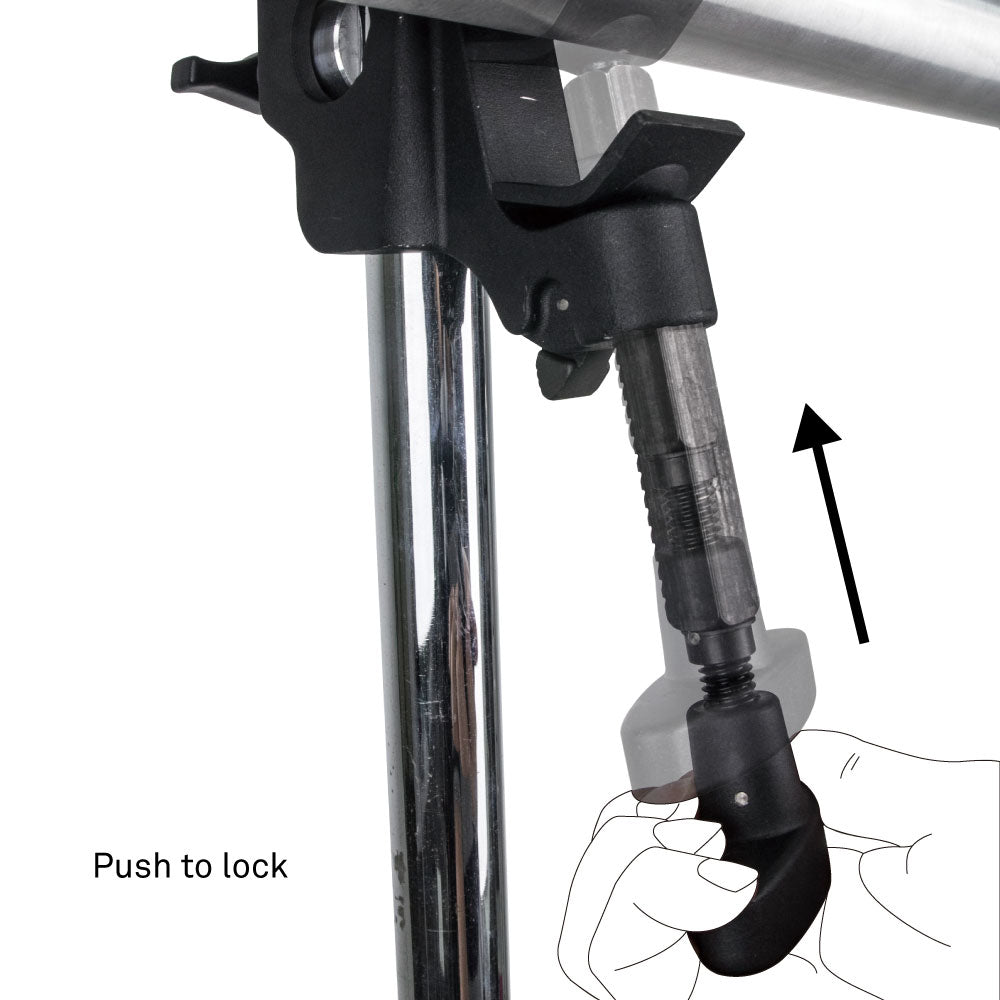

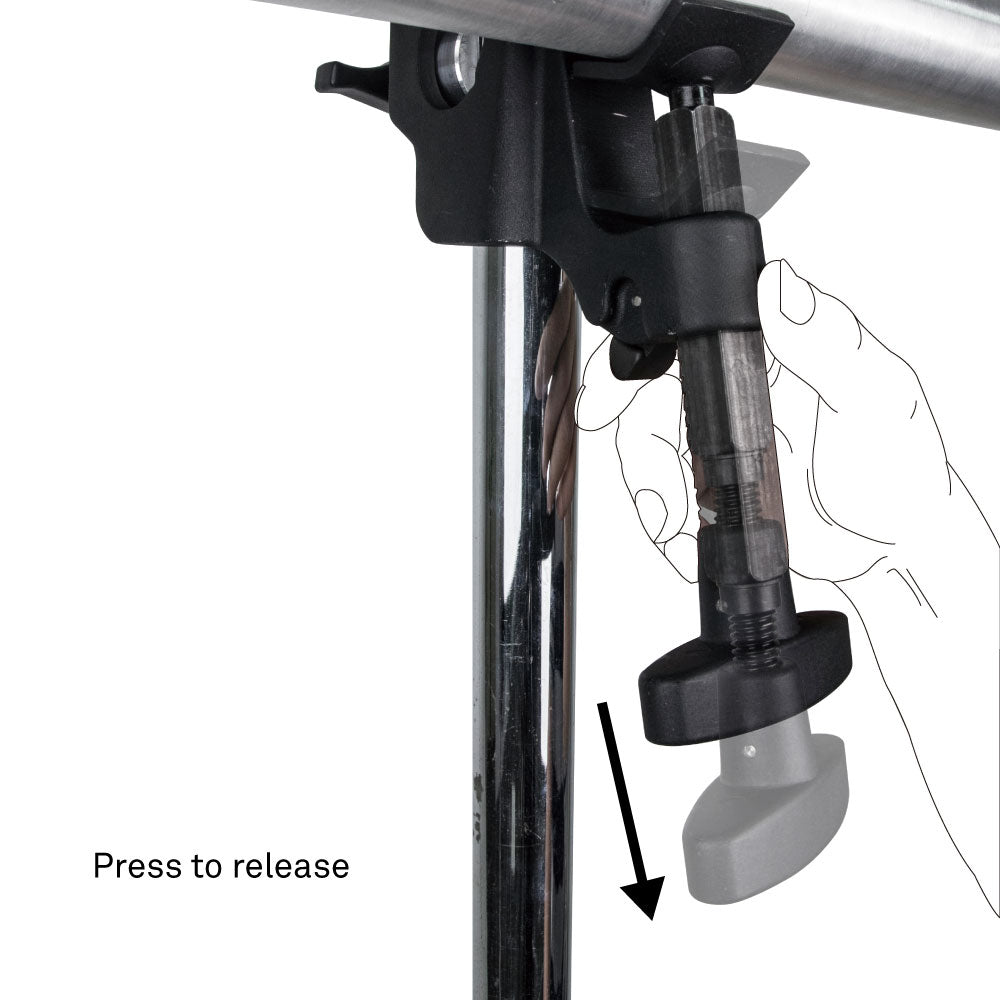

Patented quick-release clamp grips 25-55 mm tube with push-to-lock operation.

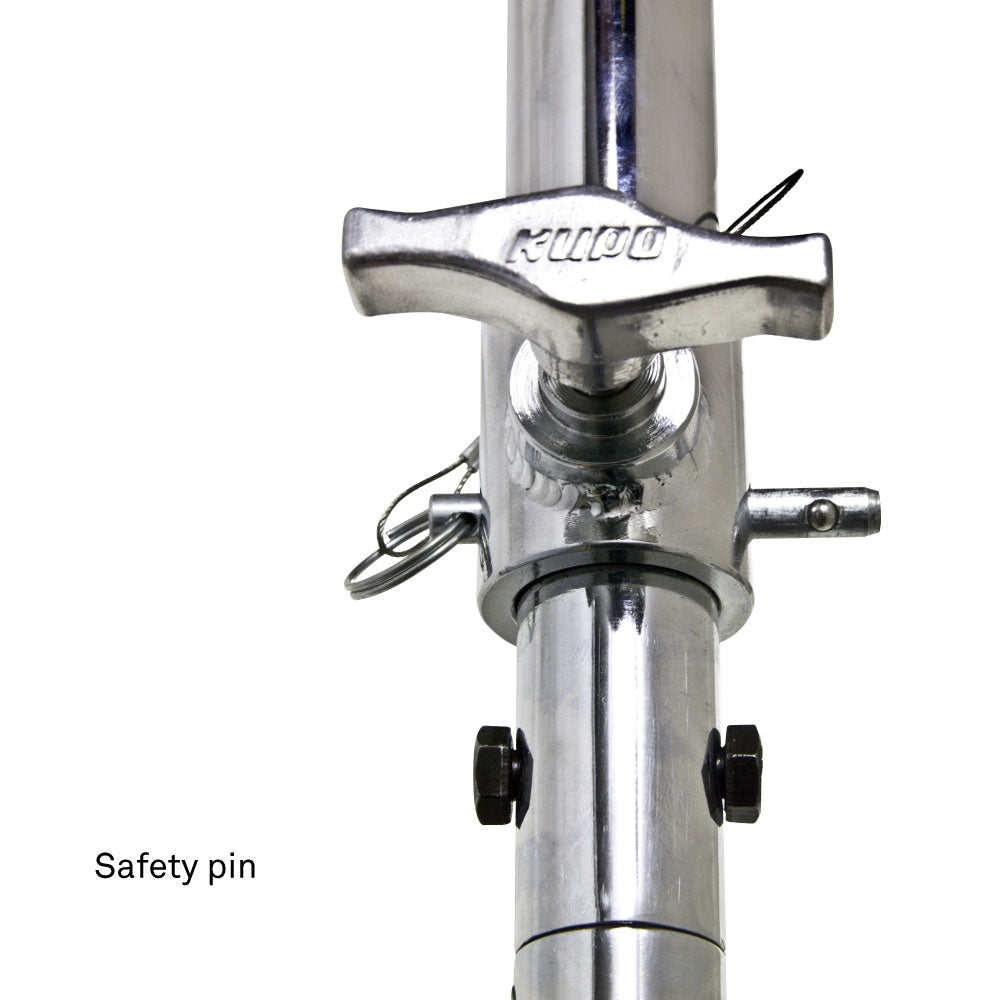

Safety pin prevents the riser from slipping during overhead use.
Applications
Use for overhead lighting positions, studio grids, theatrical hangs, venue installations, temporary production rigs, and situations where floor stands would block movement or sightlines.
Compatibility
Head includes a 5/8" baby pin rated to 10 kg and a 28 mm junior receiver rated to 40 kg; clamp fits 25-55 mm tube.
Frequently Asked Questions
What tube size can the clamp grip?
The patented quick-release clamp grips tubes from 25 mm to 55 mm.
When should I choose the universal head?
Choose the universal head when the fixture may use either a 16 mm baby pin or a 28 mm junior receiver.
What keeps the riser from slipping?
A safety pin prevents the telescoping riser from slipping during use.
