Product Description
Overview

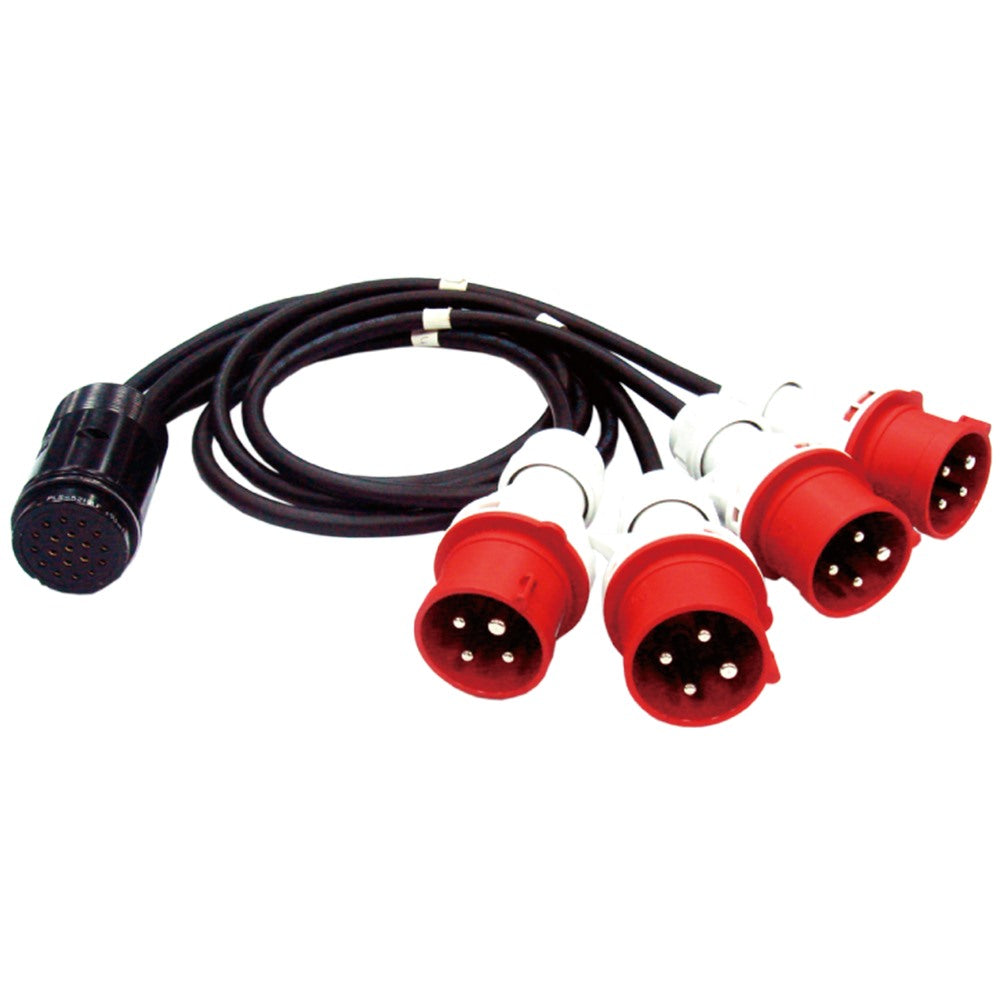

The KUPO MCA-0419P-5 is a 0.5 m 4-channel fan-in cable set for hoist power and control distribution, using 4 °C x 2.5 mm² per channel and industrial-grade connectors. It helps crews convert between individual CEE motor lines and multipin controller infrastructure without hardwiring on site.
Why It Matters
MCA-0419P-5 is the Soca 19-pin fan-in version, useful when four individual motor tails need to enter the Soca-based controller or multicore world used on many touring racks.
Key Features
- 4-channel fan-in format supports organized motor cable distribution from one compact cable set.
- 4 °C x 2.5 mm² per channel gives each motor line dedicated conductors for L1, L2, L3, and ground.
- 4 x CEE 3P+E male to Soca 19-pin female connector layout matches the listed controller and breakout direction.
- 0.5 m length keeps the adapter close to the controller or breakout point instead of adding excess cable bulk.
Additional Technical Notes
- Cable Application: Fan-in connection from individual CEE hoist circuits to Soca 19-pin multicore system
Applications
Use for entertainment hoist power and control distribution in touring rigs, theatres, ballrooms, arenas, production shops, and venue motor-control systems.
Compatibility
Use where four CEE 3P+E male motor lines need to fan into a Soca 19-pin female connection.
Frequently Asked Questions
Is this a long motor cable
No. This is a short 0.5 m cable set used for fan-in or fan-out conversion near the controller or breakout point.
How many motor channels does it handle
It handles 4 channels, with 4 °C x 2.5 mm² per channel.
Why use a fan-in or fan-out cable set
It lets crews adapt between individual CEE motor lines and multipin controller infrastructure without hardwiring the system on site.
