Overview

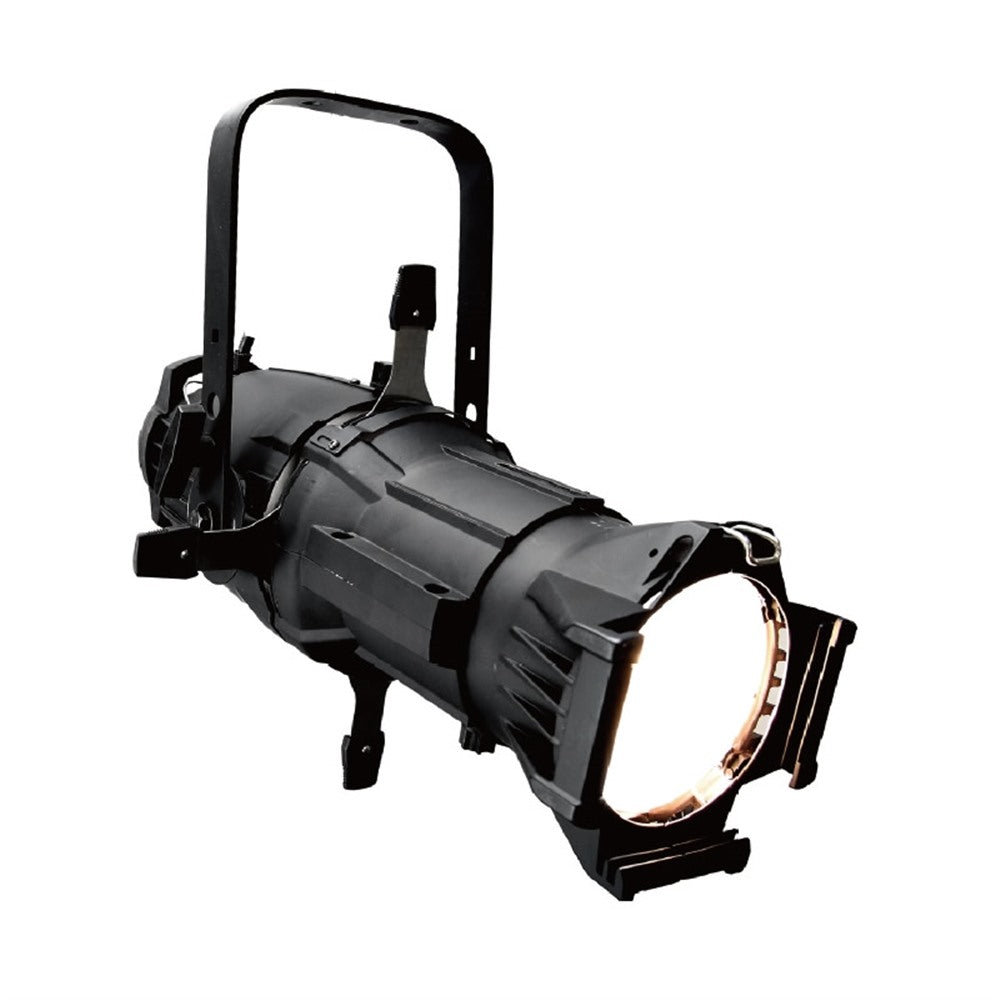

The ML-7550B is a KUPO Megalite ellipsoidal spotlight supplied with a 50° lens tube for controlled theatrical projection. It uses a 575 W or 750 W HPL-style lamp, die-cast aluminum alloy body, dichroic-coated cold mirror reflector, aspherical front lens, four stainless steel shutters, and accessory slots compatible with major-brand iris and gobo workflows.
Why It Matters
The 50° tube is for close-in wide coverage, where field diameter and soft area fill are more important than long-throw punch.
Key Features
- 50° lens tube gives the fixture a specific field size for throw distance and coverage planning.
- 575 W or 750 W lamp compatibility keeps the fixture in the familiar tungsten-halogen profile spotlight class.
- Dichroic-coated glass reflector sends visible light forward while managing infrared heat toward the rear.
- Four stainless steel shutters provide clean framing for specials, architecture, lecterns, and stage areas.
- 100 cm 3 C x 1.5 mm² silicon rubber cable and non-reflective matt black body suit theatre inventory use.
Additional Technical Notes
- Lens Tube: 50°, interchangeable family includes 19°, 26°, 36°, and 50°

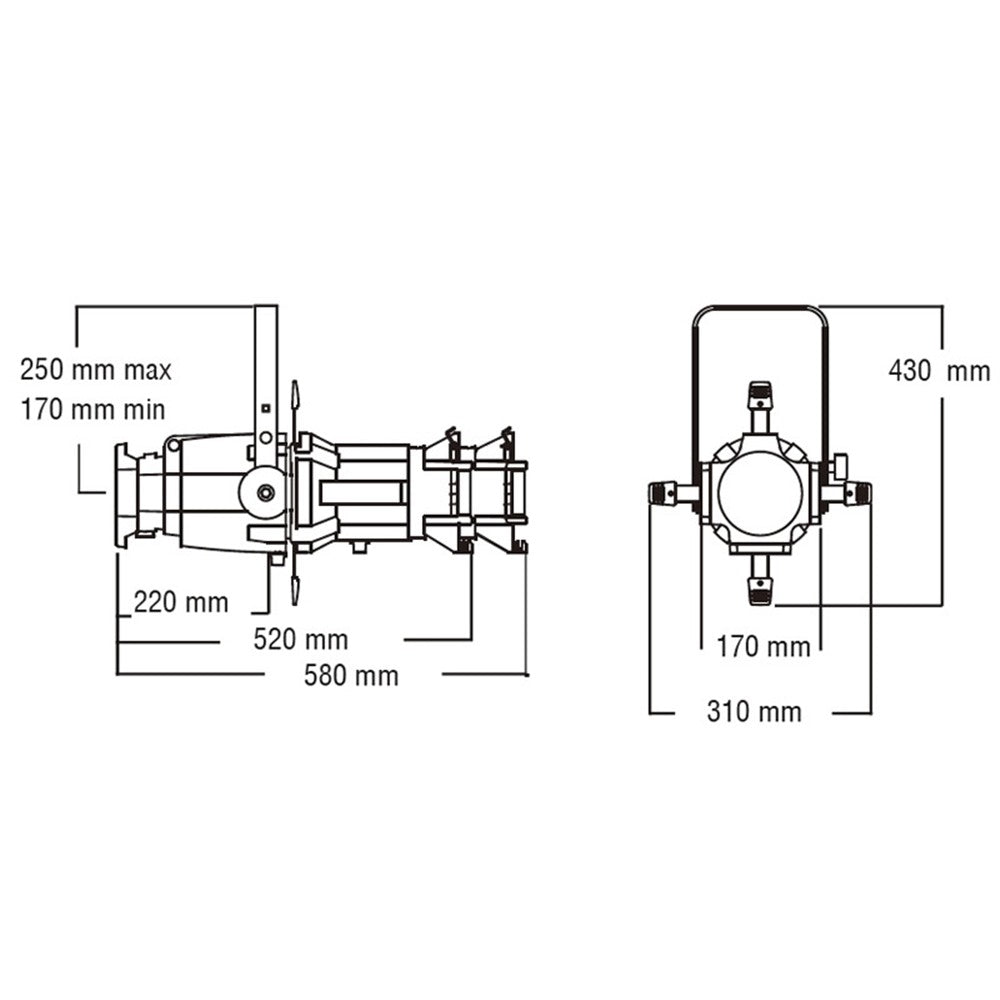

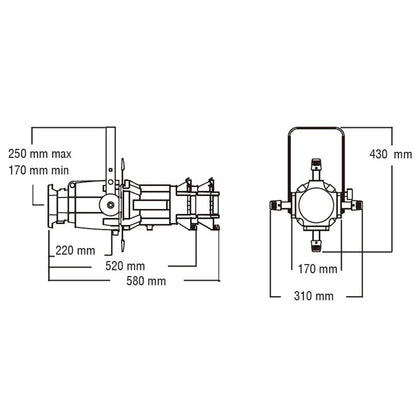

- Dimensions: 520(L) x 220(W) x 310(H) mm; lens tube extends 170-250 mm
Applications
A practical profile spotlight for theatres, schools, venues, rental inventories, houses of worship, and performance spaces that need shutter cuts, gobo projection, and predictable lens tube choices.
Compatibility
Uses interchangeable 19, 26, 36, and 50° Megalite lens tubes; pattern and iris slots are dimensionally compatible with major-brand accessories.
