The KUPO PB-6042SC-B Classic Light Bar is built for conventional dimmer-fed lighting rigs that need a tough bar and clean breakout points. A 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly its stiffness, while the cast aluminum termination box protects the connector area in touring, theatre, and rental environments.
Why It Matters
This 4+2 Aerobar layout gives four primary tails along the bar and two additional circuits broken out at the bar end, which is useful when the hang needs a little more circuit placement flexibility than a straight 4-circuit bar. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, giving electricians ready-to-terminate tails for the fixtures they want to hang on the bar.
Key Features
4+2-circuit Aerobar Classic Light Bar for conventional dimmer-fed fixture distribution

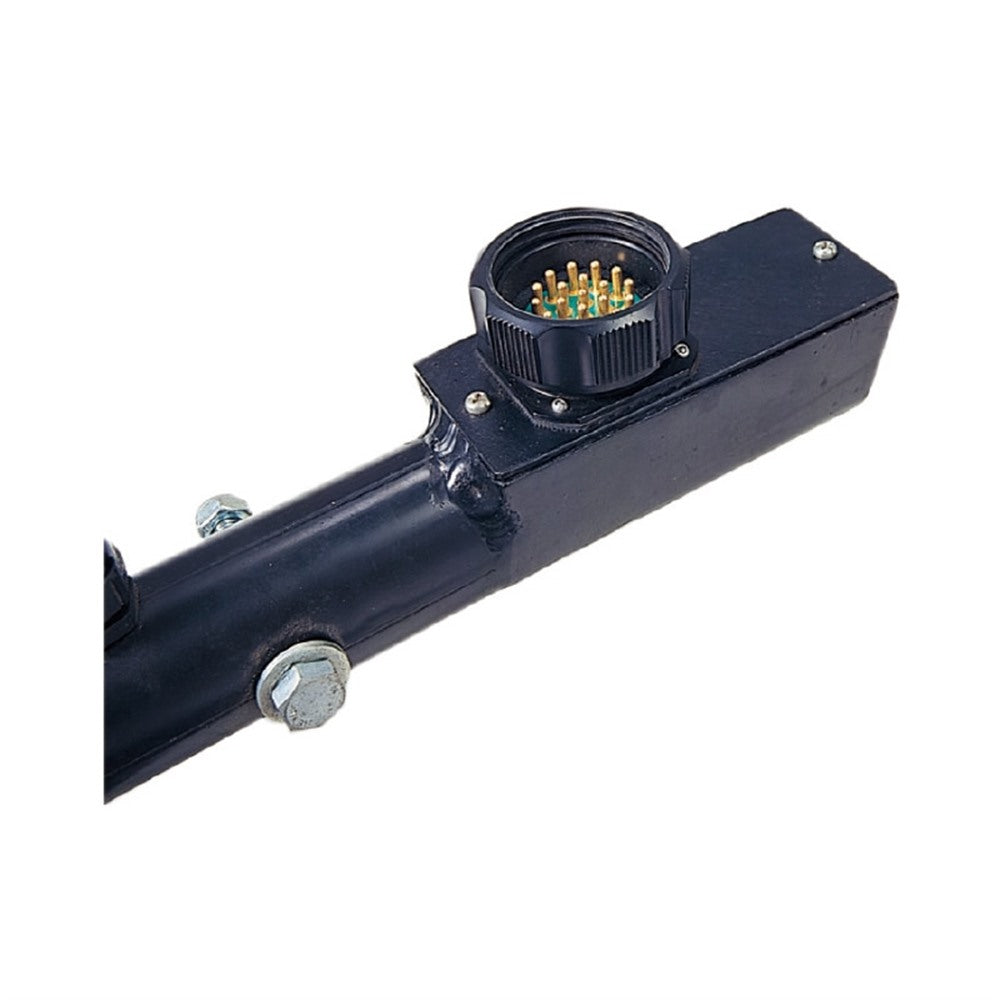

19-pin chassis, Socapex 419 compatible with 4 x 65 cm tails + 2 bar-end circuits
3 C x 1.5 mm² / 16 AWG silicone cable on each 65 cm flying tail

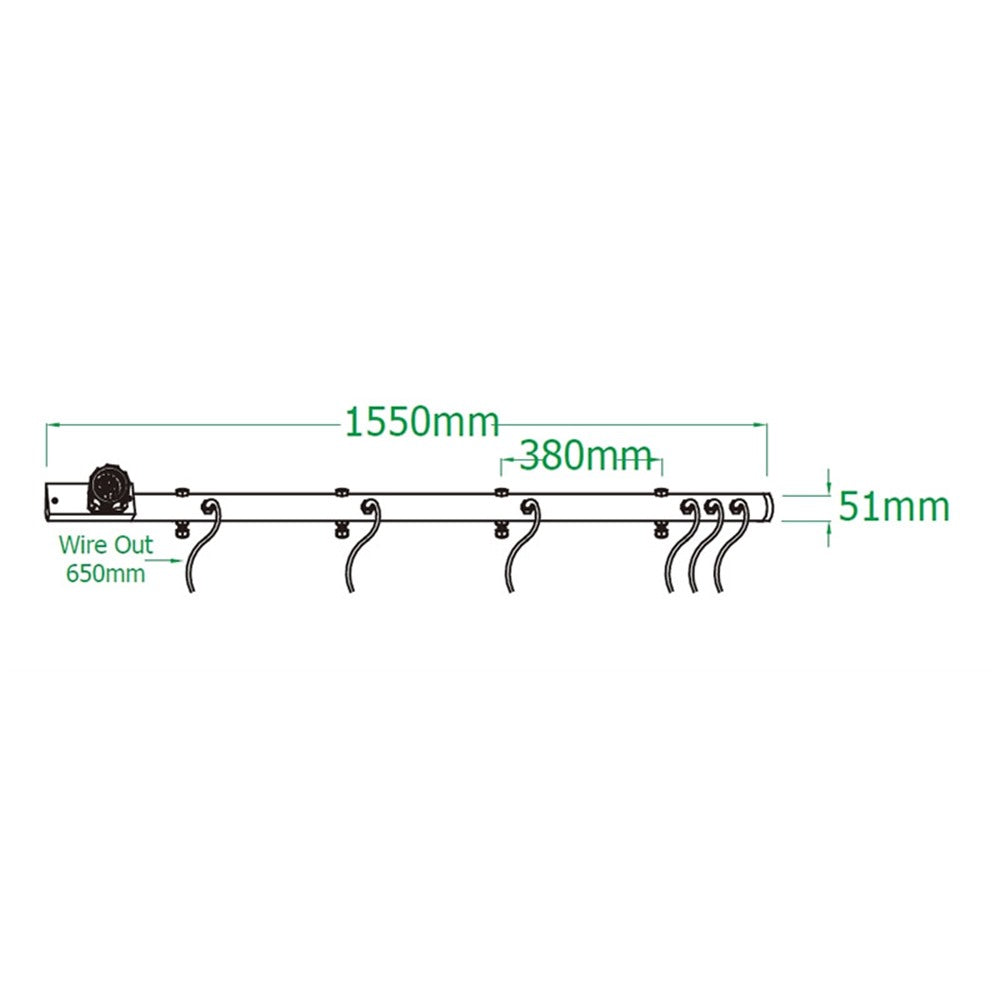

51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box
Black finish, black anodized aluminum finish keeps the bar visually quiet in truss and tour-pack positions
Applications
PB-6042SC-B is suited to touring lighting bars, truss positions, theatres, rental packages, stage rigs, and conventional fixture hangs where multiple dimmer-fed circuits need to break out cleanly along one bar.
Compatibility
Use PB-6042SC-B with Socapex 419 compatible 19-pin feeder systems and dimmer-driven fixtures that match the circuit design.
Frequently Asked Questions
What connector style does PB-6042SC-B use?
It uses a Socapex 419 compatible 19-pin chassis input.
What are the flying tails for?
The 65 cm flying tails provide circuit breakouts that can be terminated into the dimmer-driven fixtures chosen for the rig.
Why choose the black finish?
Black is useful when the bar should stay visually quiet around truss, black stages, and touring packages.
