The KUPO PB-604SC-B Classic Light Bar is built for conventional dimmer-fed lighting rigs that need a tough bar and clean breakout points. A 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly its stiffness, while the cast aluminum termination box protects the connector area in touring, theatre, and rental environments.
Why It Matters
This 19-pin version is the straightforward four-circuit choice for Socapex-style feeder systems that do not need the extra bar-end circuits of the 4+2 Aerobar layout. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, giving electricians ready-to-terminate tails for the fixtures they want to hang on the bar.
Key Features
4-circuit Classic Light Bar for conventional dimmer-fed fixture distribution

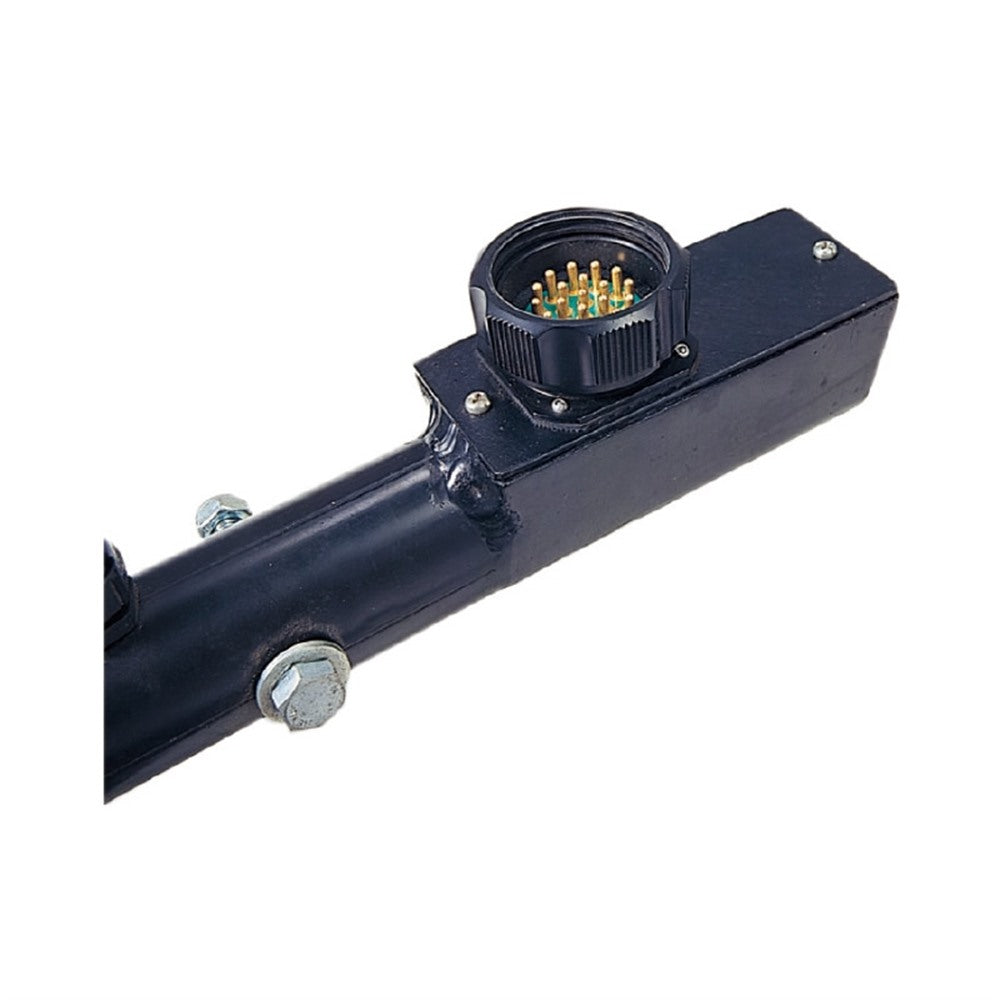

19-pin chassis, Socapex 419 compatible with 4 x 65 cm flying tails
3 C x 1.5 mm² / 16 AWG silicone cable on each 65 cm flying tail

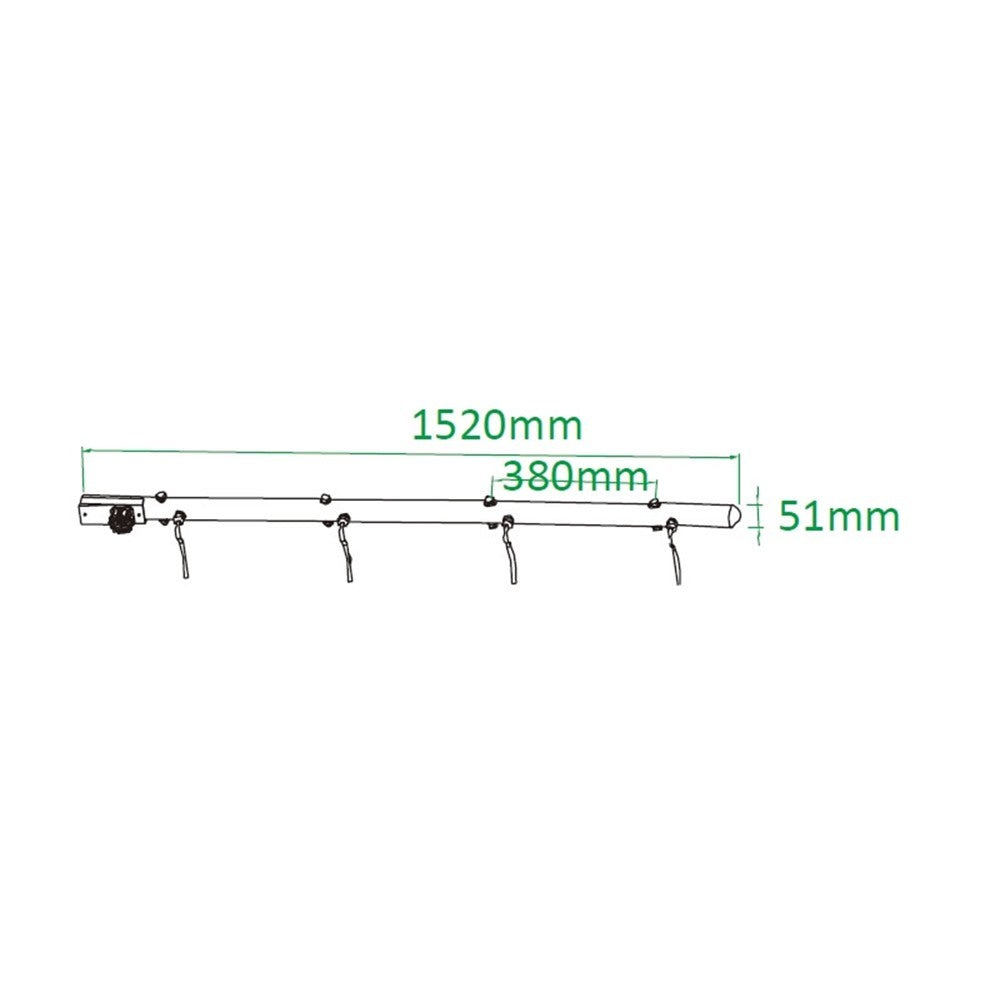

51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box with a 1520 mm bar length
Black finish, black anodized aluminum finish keeps the bar visually quiet in truss and tour-pack positions
Applications
PB-604SC-B is suited to touring lighting bars, truss positions, theatres, rental packages, stage rigs, and conventional fixture hangs where multiple dimmer-fed circuits need to break out cleanly along one bar.
Compatibility
Use PB-604SC-B with Socapex 419 compatible 19-pin feeder systems and dimmer-driven fixtures that match the four-circuit layout.
Frequently Asked Questions
What connector style does PB-604SC-B use?
It uses a Socapex 419 compatible 19-pin chassis connector as the input.
What are the flying tails for?
The 65 cm flying tails provide circuit breakouts that can be terminated into the dimmer-driven fixtures chosen for the rig.
Why choose the black finish?
Black is useful when the bar should stay visually quiet around truss, black stages, and touring packages.
