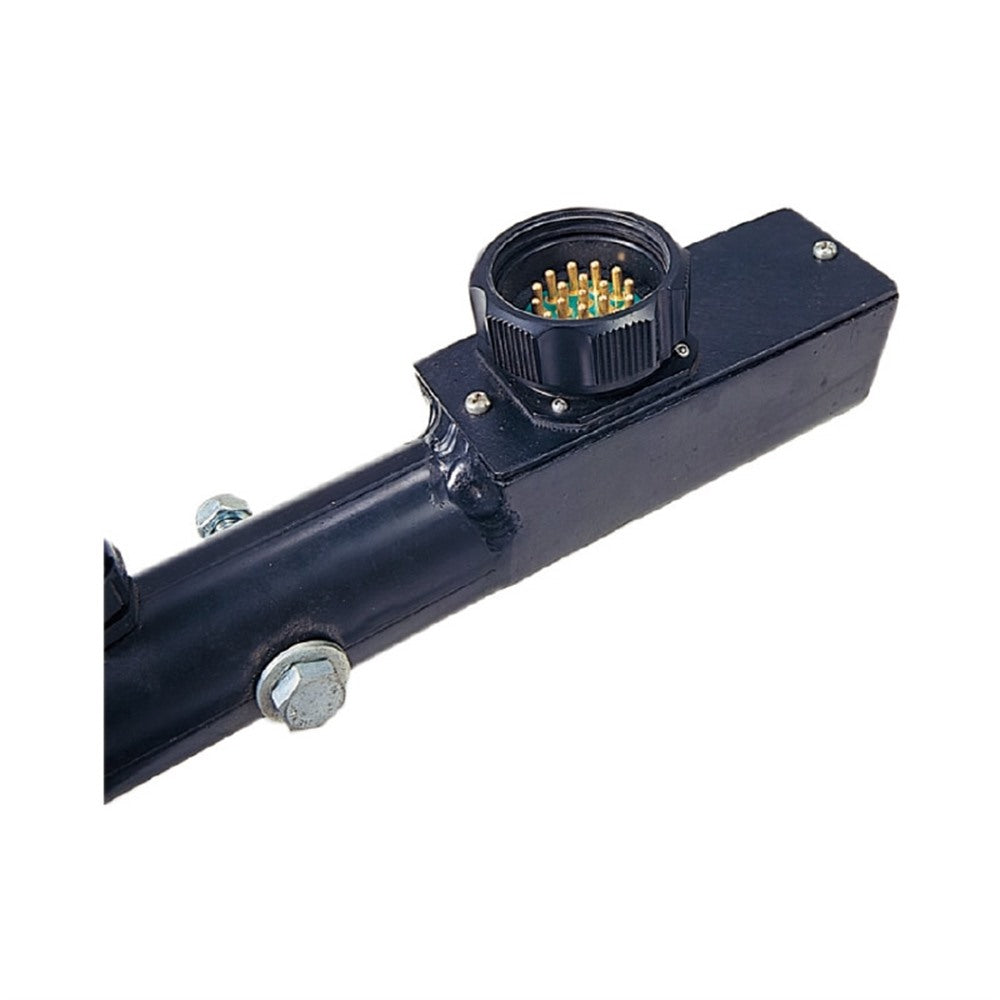

The KUPO PB-604SC-P Classic Light Bar is built for conventional dimmer-fed lighting rigs that need a tough bar and clean breakout points. A 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly its stiffness, while the cast aluminum termination box protects the connector area in touring, theatre, and rental environments.
Why It Matters
This polished 19-pin bar keeps the four-circuit layout direct and familiar for Socapex-style dimmer feeds while giving visible rigs a brighter finish. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, giving electricians ready-to-terminate tails for the fixtures they want to hang on the bar.
Key Features
4-circuit Classic Light Bar for conventional dimmer-fed fixture distribution
19-pin chassis, Socapex 419 compatible with 4 x 65 cm flying tails
3 C x 1.5 mm² / 16 AWG silicone cable on each 65 cm flying tail

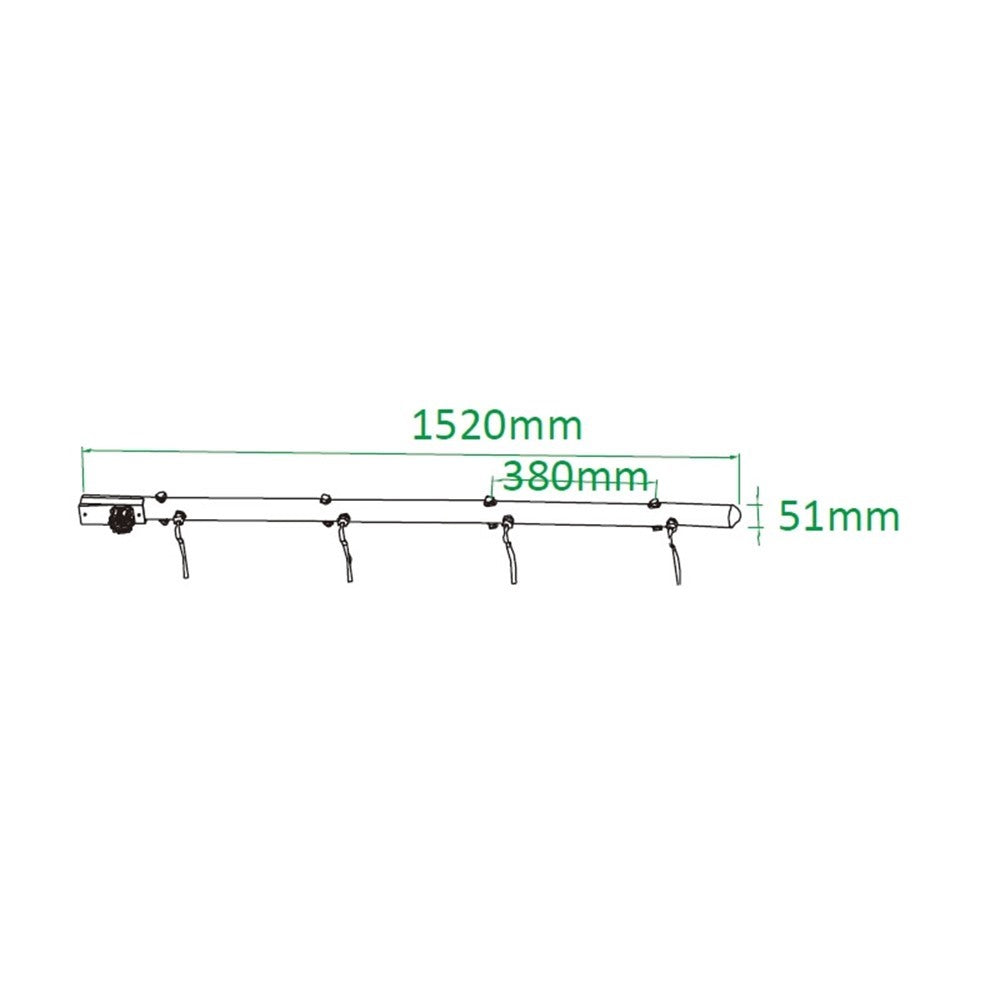

51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box with a 1520 mm bar length
Polish finish, polished anodized aluminum finish suits visible rigs where a brighter hardware look is preferred
Applications
PB-604SC-P is suited to touring lighting bars, truss positions, theatres, rental packages, stage rigs, and conventional fixture hangs where multiple dimmer-fed circuits need to break out cleanly along one bar.
Compatibility
Use PB-604SC-P with Socapex 419 compatible 19-pin feeder systems and dimmer-driven fixtures that match the four-circuit layout.
Frequently Asked Questions
What connector style does PB-604SC-P use?
It uses a Socapex 419 compatible 19-pin chassis connector as the input.
What are the flying tails for?
The 65 cm flying tails provide circuit breakouts that can be terminated into the dimmer-driven fixtures chosen for the rig.
Why choose the polished finish?
The polished finish is useful when the bar is visible and a brighter anodized aluminum look fits the rig.
