Overview
The KUPO PB-604VSC-P DMX Lighting Bar combines power and control distribution for modern lighting rigs. Across its 1528 mm aluminum alloy bar, four versatile socket positions each provide CEE form 16 A female outlet for fixture power and 5-pin XLR DMX in / thru for control data.
Why It Matters
LED and DMX-controlled fixtures often need clean power and a short, tidy control path at the same time. PB-604VSC-P reduces separate cable dressing around short hangs by bringing Powerlead main input/output, per-outlet power, and per-outlet DMX connectors onto one bar.
Key Features
- 4-way DMX Lighting Bar with CEE form 16 A female outlet at each outlet position
- 20 A Powerlead / Neutrik PowerCon compatible main input and output
- 5-pin XLR DMX in / thru provided per outlet

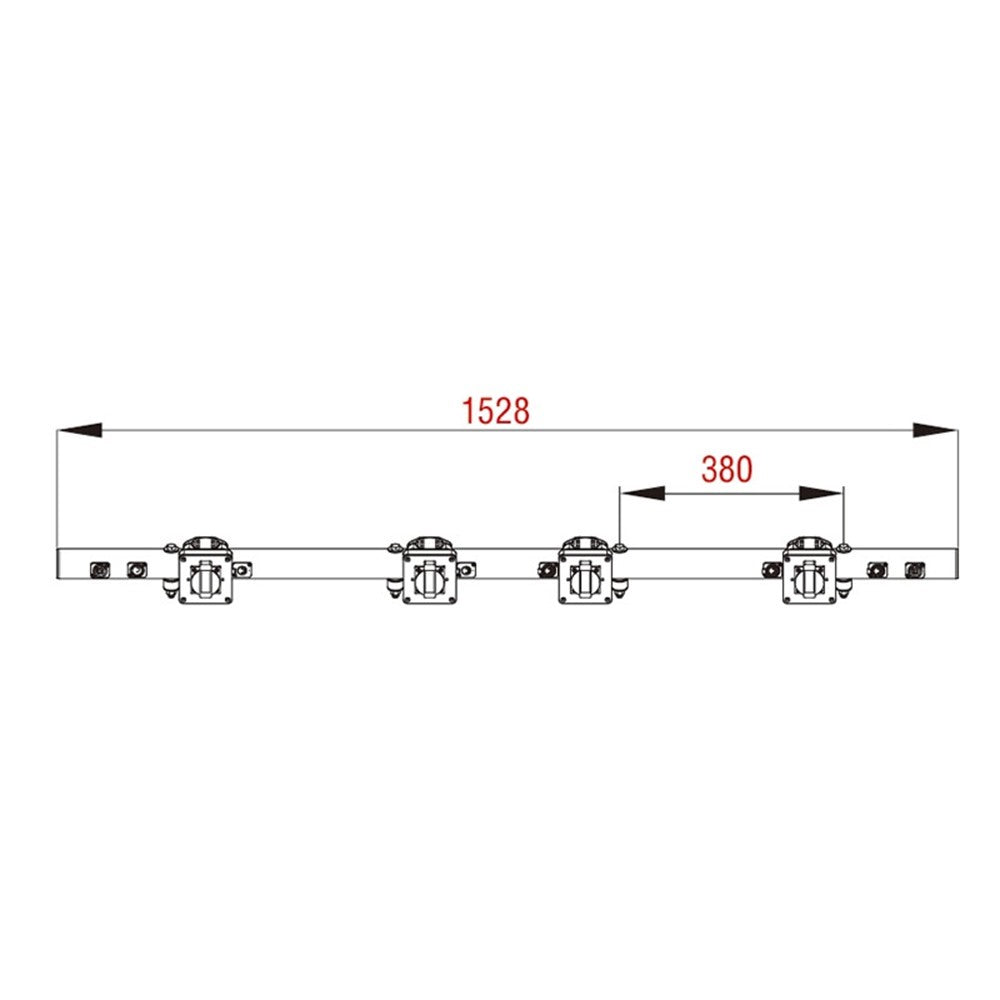

- 51 mm diameter x 3.25 mm wall aluminum alloy tube, 1528 mm length
- Polish finish, polished anodized finish gives the bar a brighter hardware presence on visible rigs
Applications
PB-604VSC-P is suited to LED stage lighting, DMX fixture hangs, theatre bars, truss-mounted short hangs, rental packages, and venues that want a cleaner combined power and data path for four fixtures.
Compatibility
Use PB-604VSC-P with 20 A Powerlead / Neutrik PowerCon compatible main power connections, CEE form 16 A female outlet fixture plugs, and 5-pin XLR DMX cabling.
