Overview

The KUPO PB-6062SC-P Classic Light Bar is built for conventional dimmer-fed lighting rigs that need a tough bar and clean breakout points. A 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly its stiffness, while the cast aluminum termination box protects the connector area in touring, theatre, and rental environments.

Why It Matters

The polished pass-through version is useful when six circuits need to break out from the bar and the feeder path continues onward to another bar. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, giving electricians ready-to-terminate tails for the fixtures they want to hang on the bar.

Key Features

• 6-circuit Classic Light Bar with input/output pass-through for conventional dimmer-fed fixture distribution
• 19-pin male chassis connector, Socapex 419 compatible with 19-pin female chassis connector plus 6 x 65 cm flying tails
• 3 C x 1.5 mm² / 16 AWG silicone cable on each 65 cm flying tail

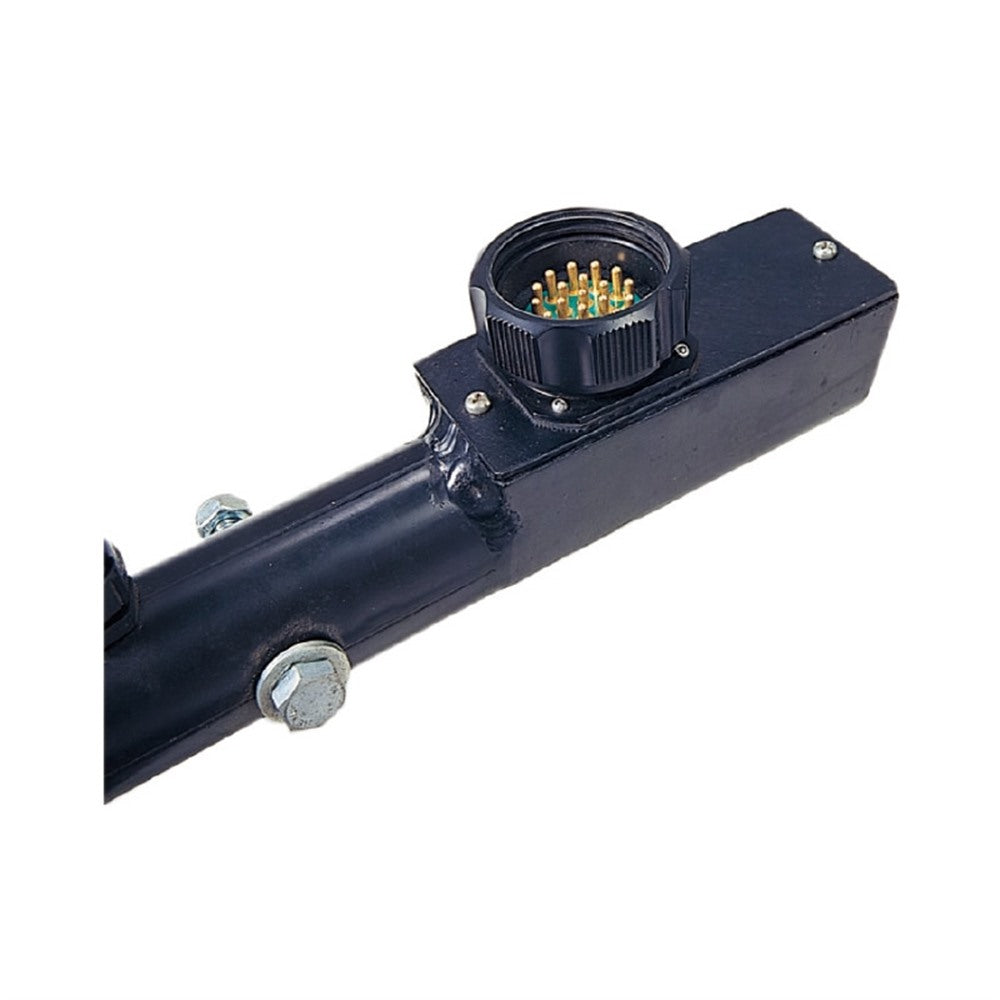

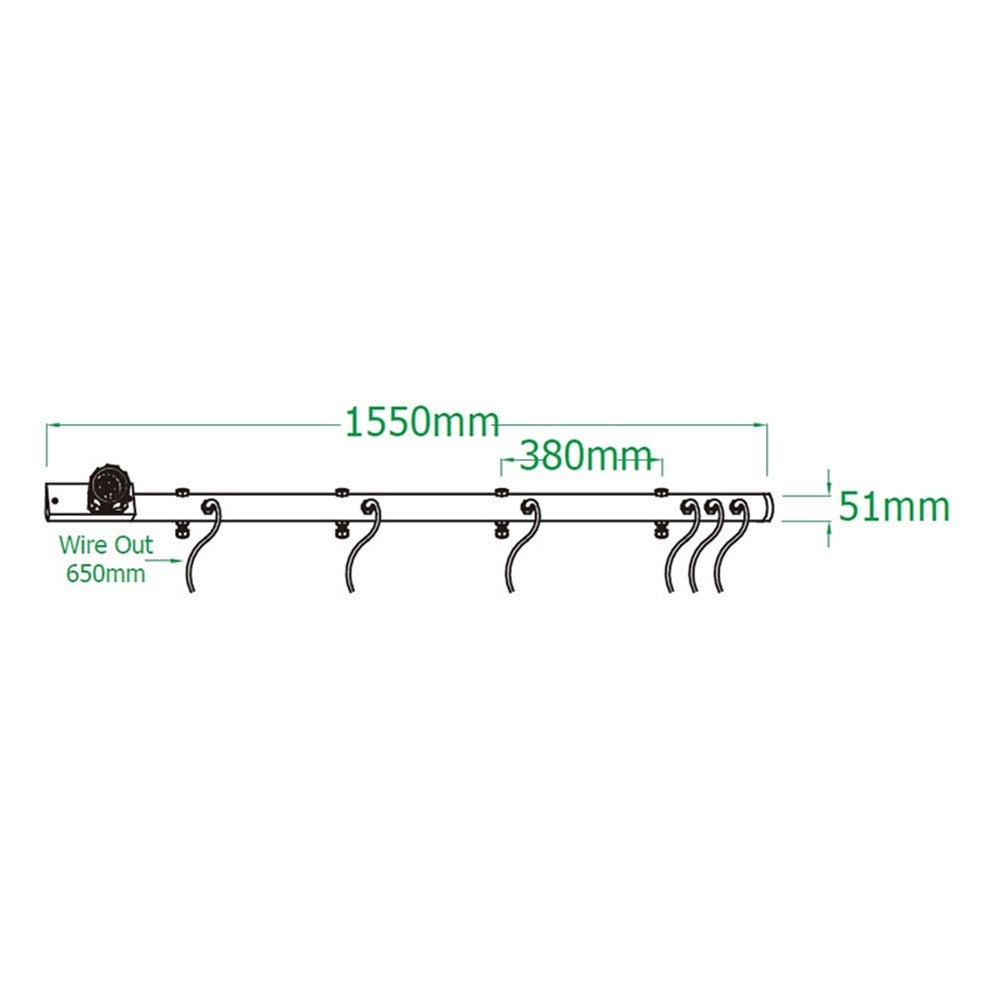

• 51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box
• Polish finish, polished anodized aluminum finish suits visible rigs where a brighter hardware look is preferred

Applications

PB-6062SC-P is suited to touring lighting bars, truss positions, theatres, rental packages, stage rigs, and conventional fixture hangs where multiple dimmer-fed circuits need to break out cleanly along one bar.

Compatibility

Use PB-6062SC-P with Socapex 419 compatible 19-pin feeder systems where male input and female pass-through output are required.
