The KUPO PB-606HC-P Classic Light Bar is made for conventional dimmer-fed lighting positions that need a rugged six-circuit bar. Its 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly real stiffness, while the cast aluminum termination box protects the input side during touring, theatre, rental, and stage handling.
Why It Matters
The polished 16-pin version suits systems standardized around 16-pin feeder hardware while giving visible bars a brighter anodized aluminum finish. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, so electricians have practical tails ready for the fixtures and terminations required by the rig.
Key Features
6-Circuit 16-Pin, Polish for conventional dimmer-fed fixture distribution

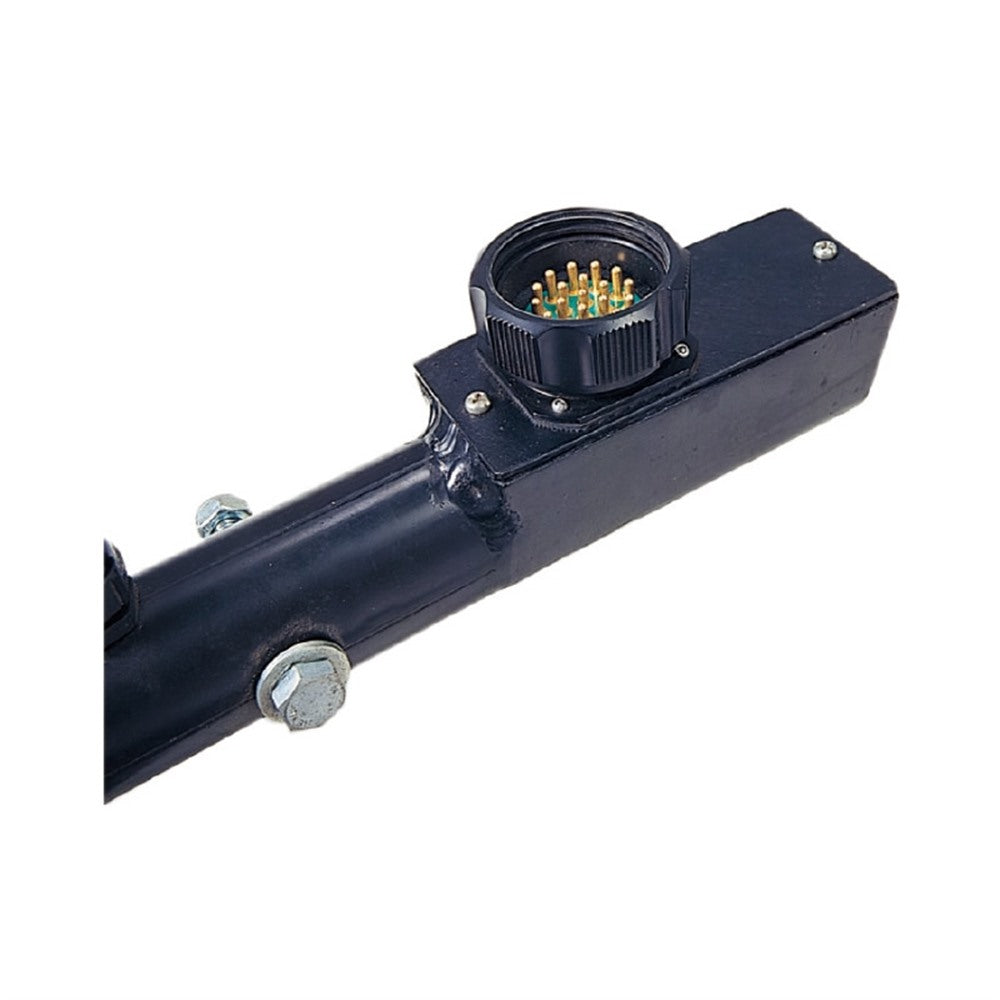

16-pin male chassis connector with 6 x 65 cm flying tails
Six 65 cm flying tails using 3 C x 1.5 mm² / 16 AWG silicone cable

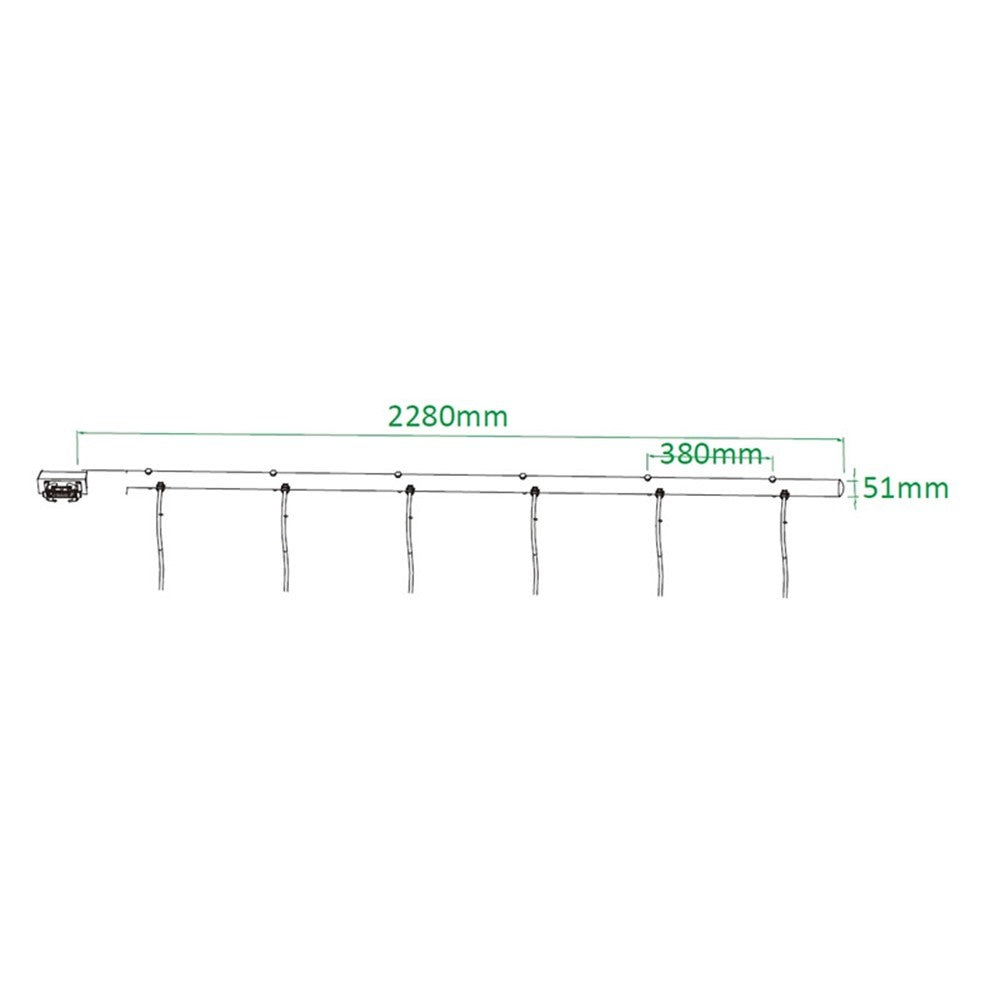

51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box
Polish finish, polished anodized aluminum for visible hardware positions
Applications
PB-606HC-P is suited to theatres, touring rigs, truss-mounted fixture rows, rental packages, and stage power layouts where six conventional lighting circuits need to break out cleanly along one bar.
Compatibility
Use PB-606HC-P with compatible feeder systems for 16-pin male chassis connector and dimmer-driven fixtures that match the six-circuit breakout arrangement.
Frequently Asked Questions
What input connector does PB-606HC-P use?
It uses a 16-pin male chassis connector as the input.
Is this bar for DMX-controlled fixtures?
This Classic Light Bar family is described for conventional dimmer-fed installations rather than self-addressed LED rigs.
What are the flying tails used for?
The 65 cm tails provide the circuit breakouts that can be terminated into the selected dimmer-driven fixtures.
