Overview

The KUPO PB-606SC-P Classic Light Bar is made for conventional dimmer-fed lighting positions that need a rugged six-circuit bar. Its 51 mm diameter by 3.8 mm wall aluminum tube gives the assembly real stiffness, while the cast aluminum termination box protects the input side during touring, theatre, rental, and stage handling.

Why It Matters

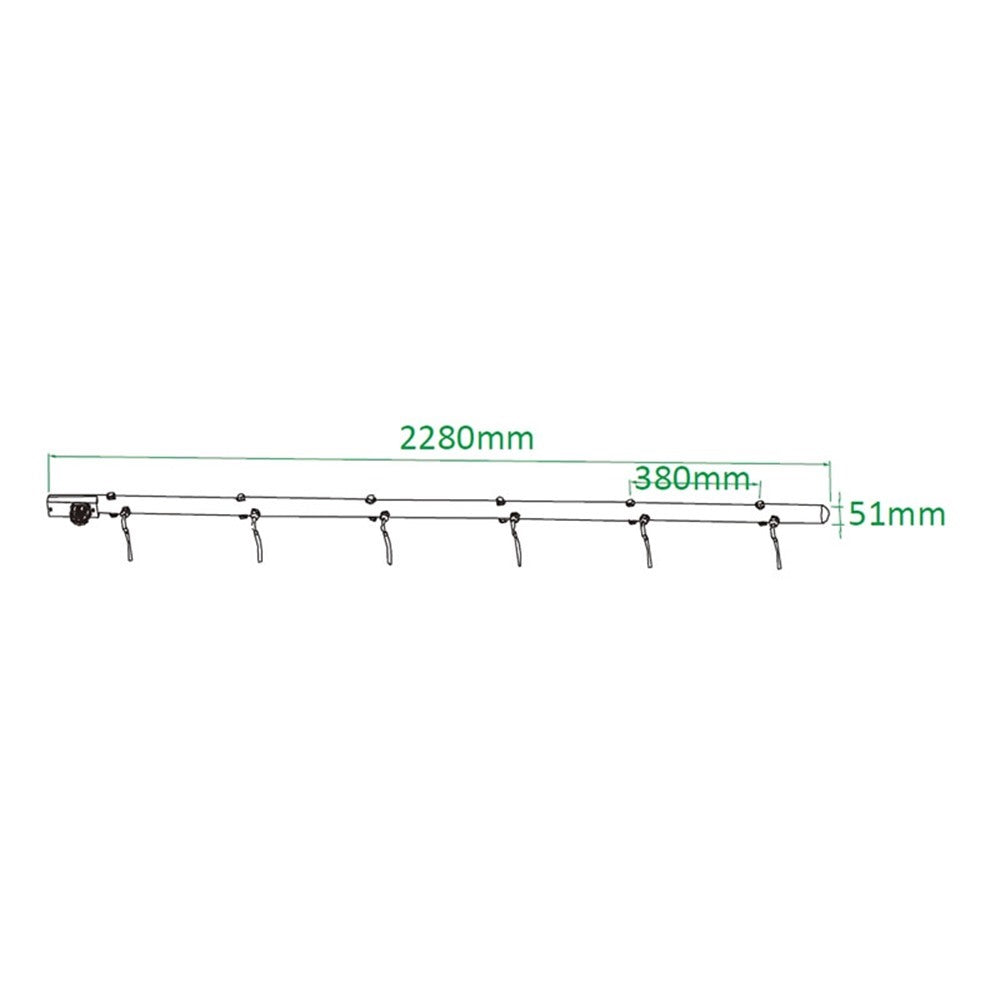

This polished 19-pin version gives six conventional circuits on a 2280 mm bar while matching rigs where the hardware remains visible. Each circuit breaks out through 65 cm of 3 C x 1.5 mm² (16 AWG) silicone cable, so electricians have practical tails ready for the fixtures and terminations required by the rig.

Key Features

• 6-Circuit 19-Pin, Polish for conventional dimmer-fed fixture distribution

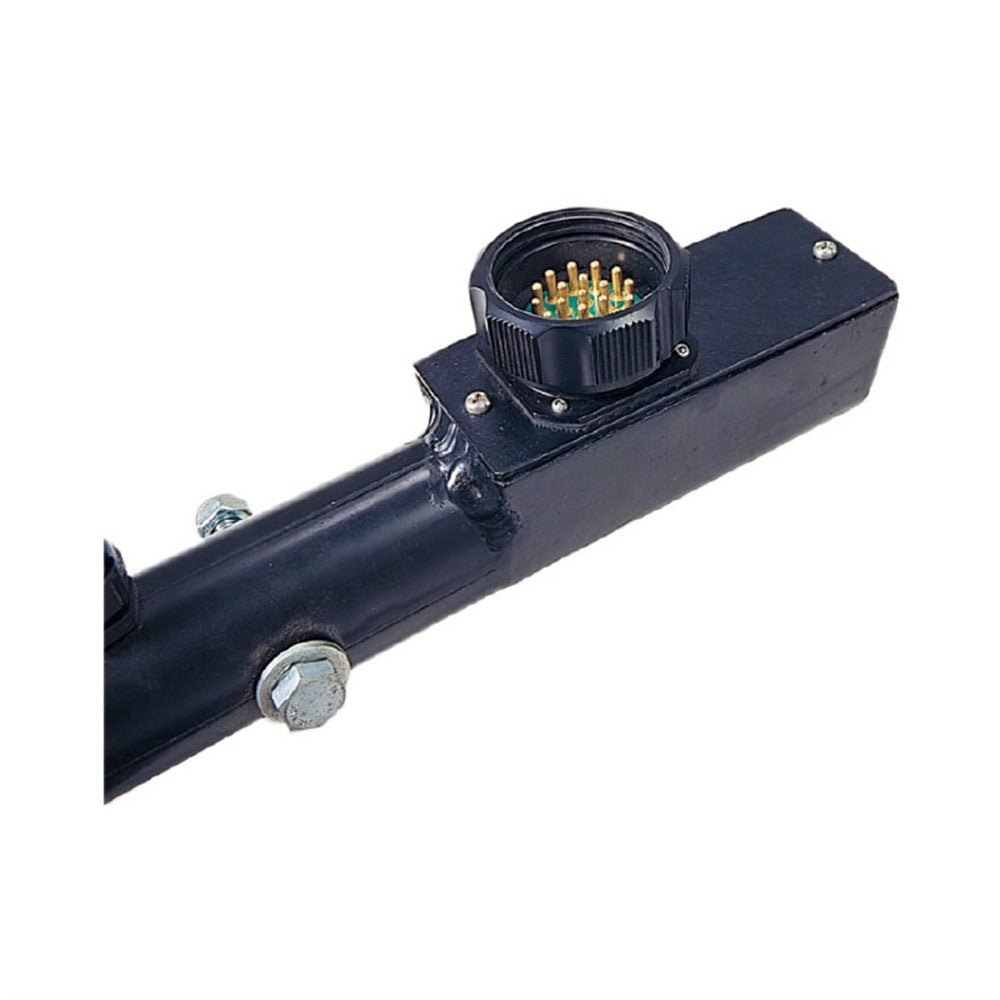

• 19-pin chassis, Socapex 419 compatible with 6 x 65 cm flying tails
• Six 65 cm flying tails using 3 C x 1.5 mm² / 16 AWG silicone cable
• 51 mm diameter x 3.8 mm wall aluminum tube with cast aluminum termination box
• Polish finish, polished anodized aluminum for visible hardware positions

Applications

PB-606SC-P is suited to theatres, touring rigs, truss-mounted fixture rows, rental packages, and stage power layouts where six conventional lighting circuits need to break out cleanly along one bar.

Compatibility

Use PB-606SC-P with compatible feeder systems for 19-pin chassis connector, socapex 419 compatible and dimmer-driven fixtures that match the six-circuit breakout arrangement.
