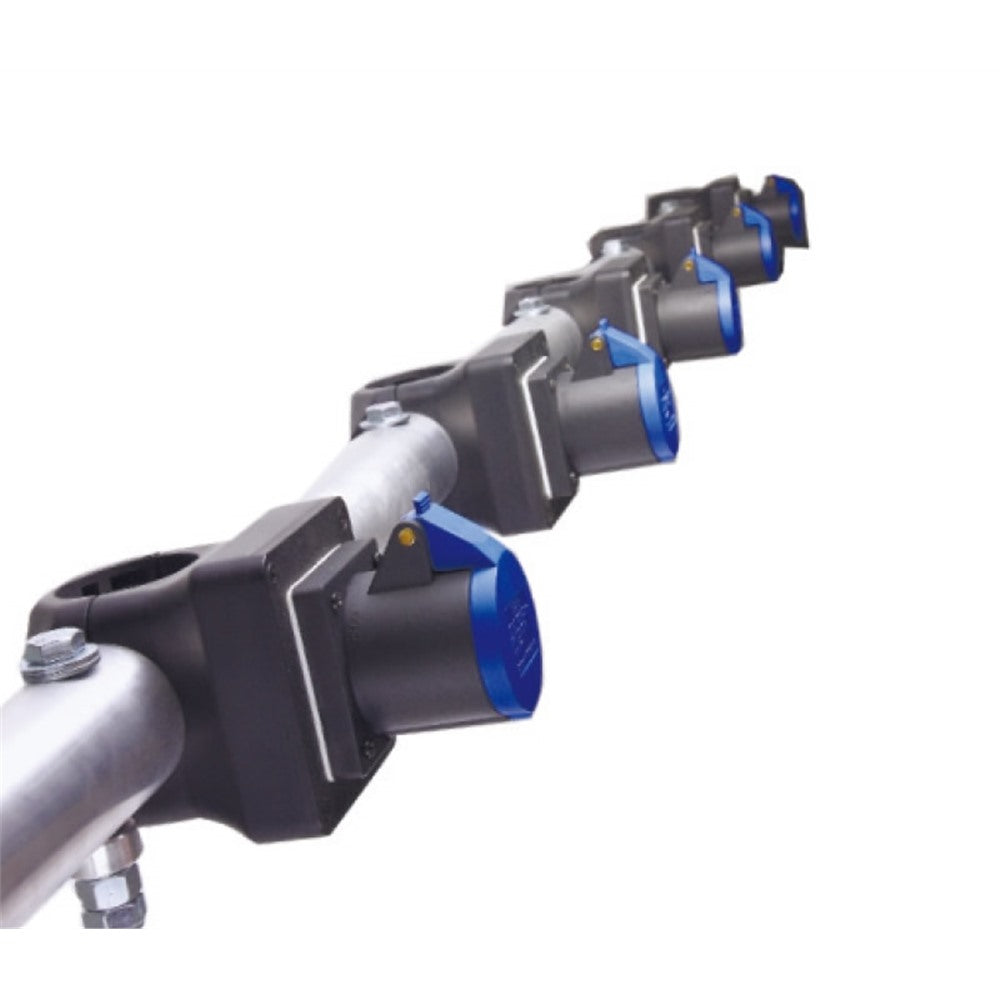

The KUPO PB-606SC-P/VSS PB-606SC Light Bar extends the six-way 19-pin light bar platform with an additional Schuko panel female outlet. The body uses 51 mm diameter by 3.8 mm wall aluminum tubing, giving stage and event crews a rigid distribution bar for truss and venue use.
Why It Matters
This polished version adds Schuko access for mixed connector workflows where the light bar remains visible in the rig. The extra Schuko panel female outlet gives the bar a cross-system feed-through option alongside the six versatile socket outputs, which can simplify mixed fixture or accessory power needs around a lighting position.
Key Features
19-pin Soca panel male input from the PLS-5219 family
Six versatile socket outputs plus one Schuko panel female outlet
Schuko outlet sub-type for cross-system feed-through
51 mm diameter x 3.8 mm wall aluminum tubing
Polished finish for polished visible hardware positions
Applications
PB-606SC-P/VSS is suited to stage junction positions, light bar power distribution, event builds, truss-mounted outlet points, and mixed connector workflows where the six-way PB-606SC bar needs an additional Schuko outlet.
Compatibility
Use PB-606SC-P/VSS with 19-pin Soca / PLS-5219 family feeder systems, compatible versatile socket outputs, and equipment that matches the additional Schuko panel female outlet.
Frequently Asked Questions
What does the Schuko version add?
It adds one Schuko panel female outlet alongside the six versatile socket outputs.
What input does this light bar use?
It uses a 19-pin Soca panel male input from the PLS-5219 connector family.
Is this the same as the standard PB-606SC?
It is based on the PB-606SC light bar platform, but the VSC or VSS variant adds an auxiliary outlet for cross-system feed-through.
