Overview
The KUPO PB-606VSC-P2 DMX Lighting Bar gives six fixture positions a shared power and control path along one 2290 mm bar. Each versatile socket position carries CEE form 16 A female outlet for power and a 5-pin XLR DMX in / thru connection, helping LED and DMX-controlled fixtures stay cleaner on short hangs.
Why It Matters
Six-way bars often sit where separate power and data cabling can become messy fast. By combining 20 A Powerlead compatible main input/output, per-outlet power, and per-outlet DMX connectors, PB-606VSC-P2 gives crews a more organized trunk point for modern lighting rigs.
Key Features
- 6-way DMX Lighting Bar with CEE form 16 A female outlet at each outlet position
- 20 A Powerlead / Neutrik PowerCon compatible main input and output
- 5-pin XLR DMX in / thru provided per outlet

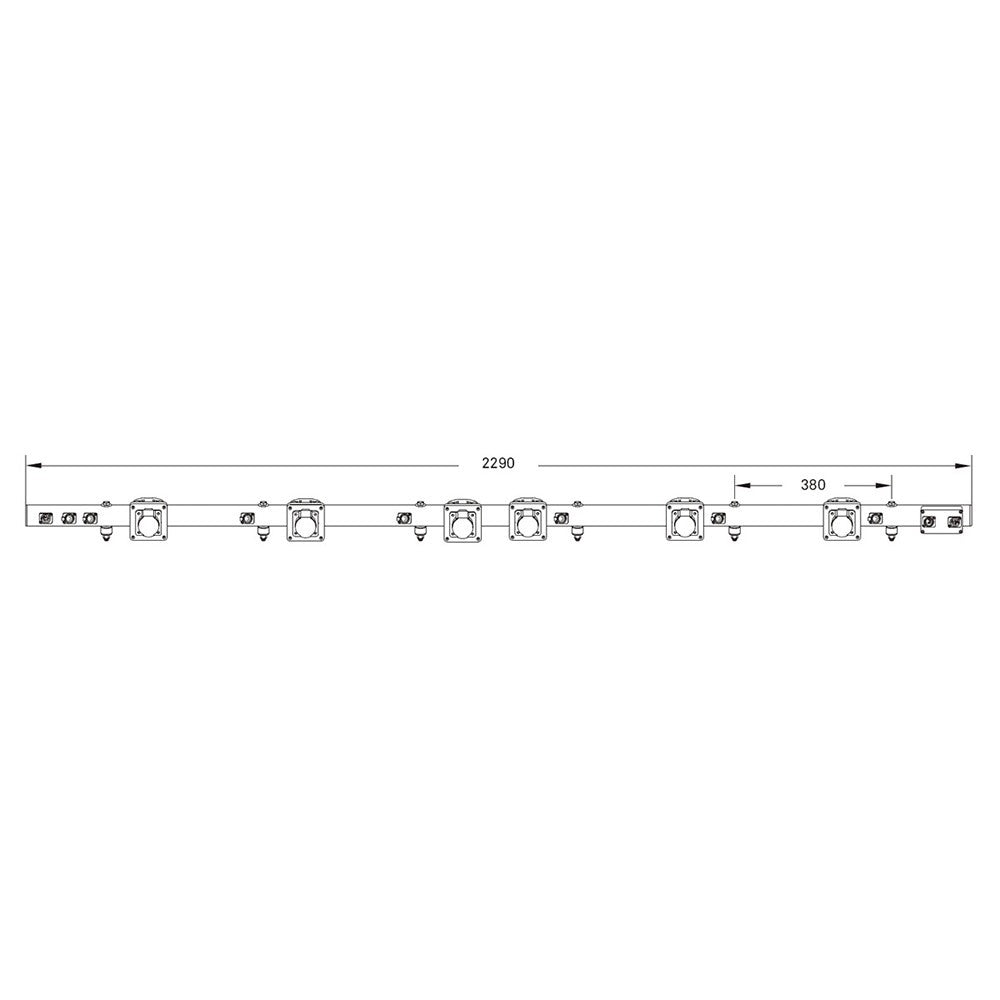

- 51 mm diameter x 3.25 mm wall aluminum alloy tube, 2290 mm length
- Polish finish, polished anodized aluminum for visible hardware positions
Applications
PB-606VSC-P2 is suited to LED fixture rows, DMX stage lighting, theatre bars, truss-mounted short hangs, rental systems, and venues that want six combined power-and-data fixture positions on one bar.
Compatibility
Use PB-606VSC-P2 with 20 A Powerlead / Neutrik PowerCon compatible main power, CEE form 16 A female outlet fixture plugs, and 5-pin XLR DMX cabling.
