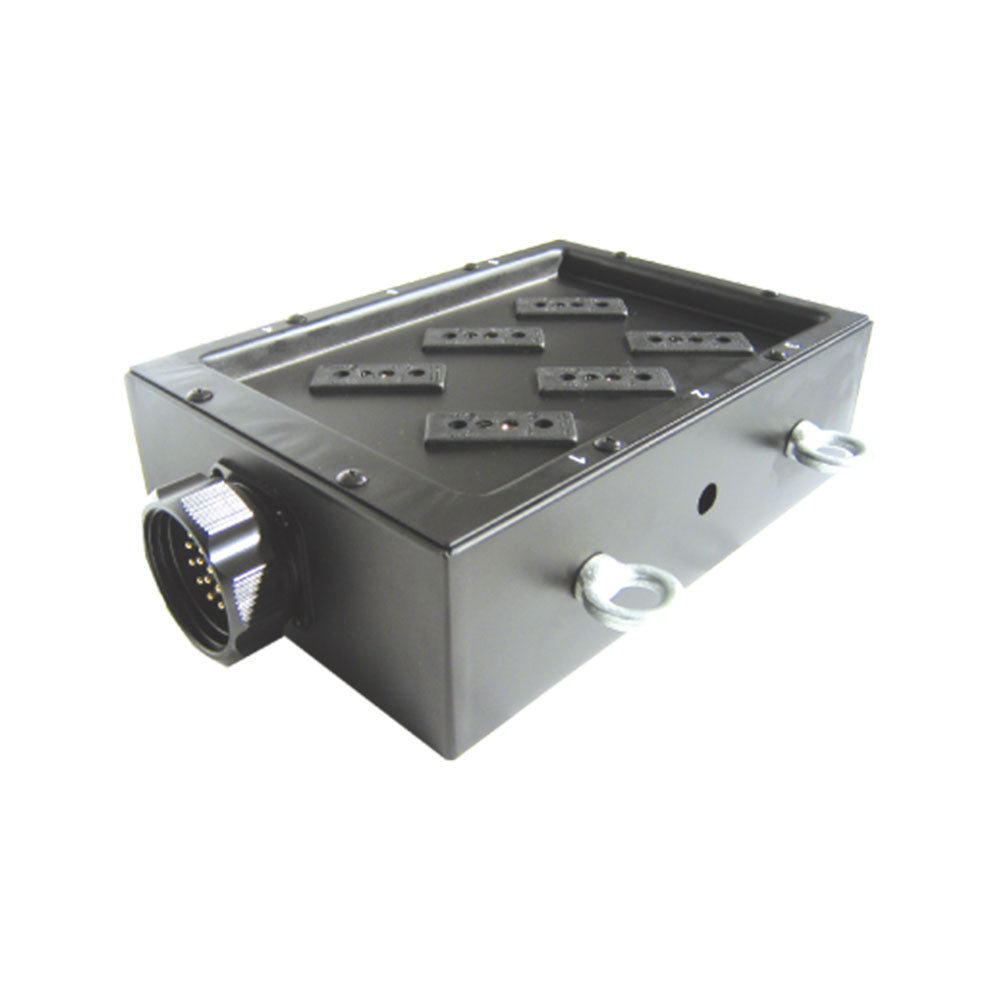

Kupo power distribution boxes are made of 1.2 mm thickness steel sheet. The internal wiring consists of 1.5 mm² / 16 AWG silicone cable. The sinking front panel for a better protection of each connector. The standard 2 hanging rings make rigging easier on truss. Each side with an extra clamp hanging hole to fit limited space. The followings are the range of power distribution boxes, other variations of power distribution boxes are available upon request.
Why It Matters
Distribution boxes need to be readable, rugged, and easy to rig. PDB-001D packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.
Key Features
6 x Stage 3-pin panel female
1 x 19-pin panel male
1 x 19-pin panel female
Specifications
6 x Stage 3-pin panel female
1 x 19-pin panel male
1 x 19-pin panel female
Applications
Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.
Compatibility
Use PDB-001D with KUPO Stage 3-pin branch connectors and the listed 19-pin feeder interface. Match the male/female panel connection correctly, check circuit mapping, and verify the connected fixtures or cables do not exceed the power box rating.
Frequently Asked Questions
What does PDB-001D provide?
PDB-001D provides the connector layout listed in the specifications for a power distribution box application.
Can it be rigged on truss?
The source description notes standard hanging rings and clamp hanging holes for easier truss or limited-space placement.
Are custom variations possible?
The specification notes that other power distribution box variations are available upon request.
