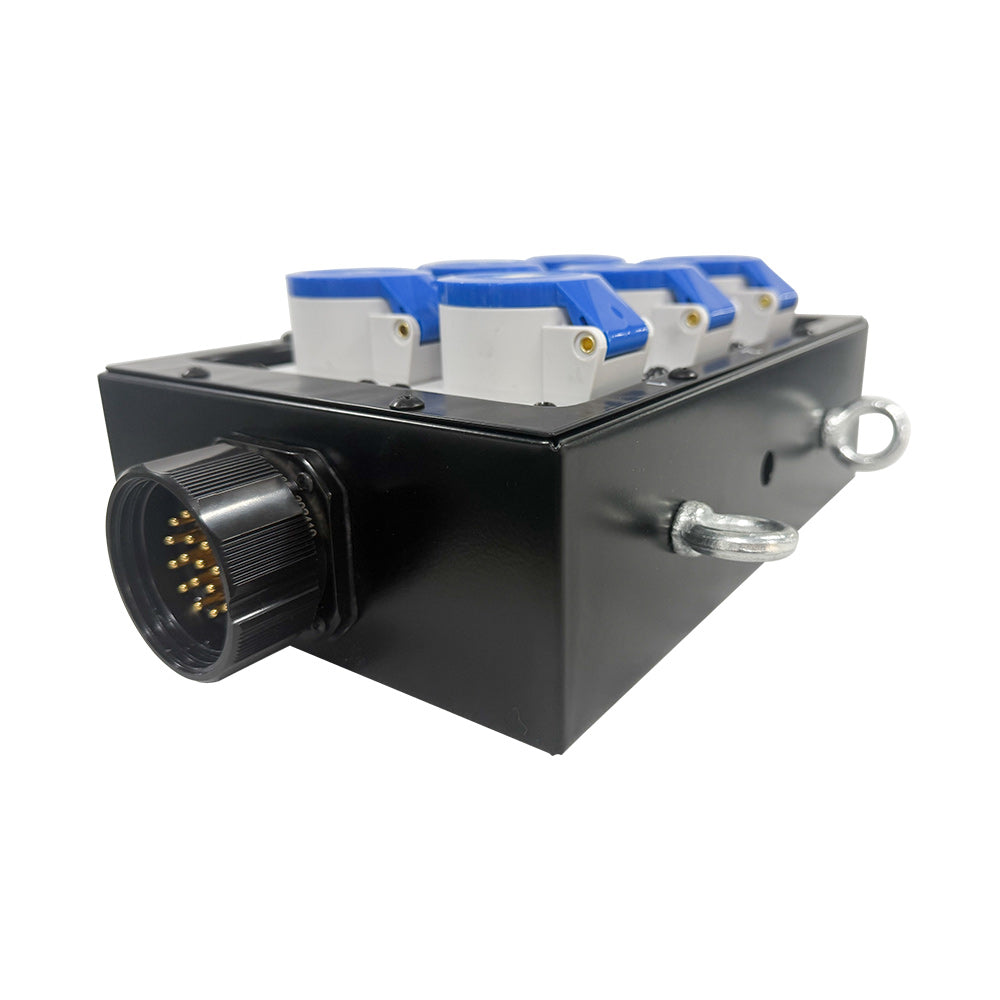

• PDB-004 - Steel Power Box power box product view
  • PDB-004 - Steel Power Box dimension diagram, front dimension diagram

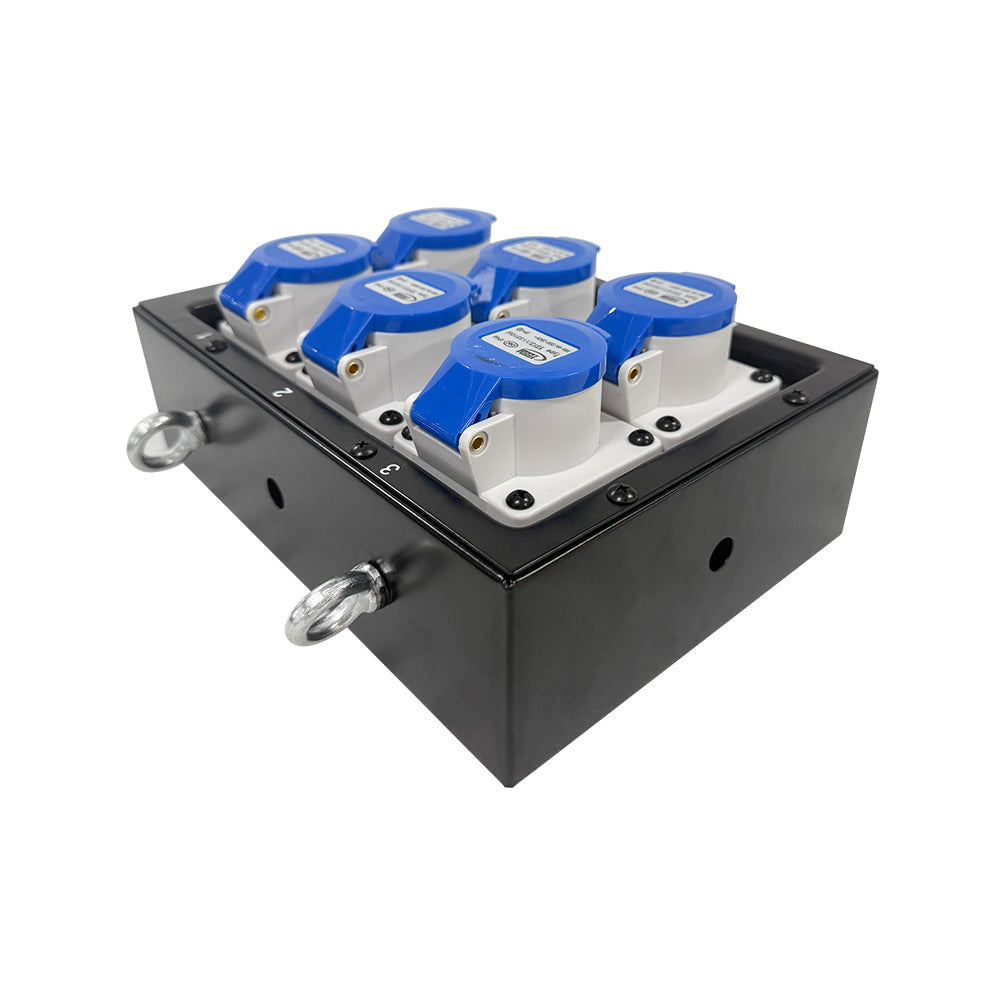

  • PDB-004 - Steel Power Box angled outlet view

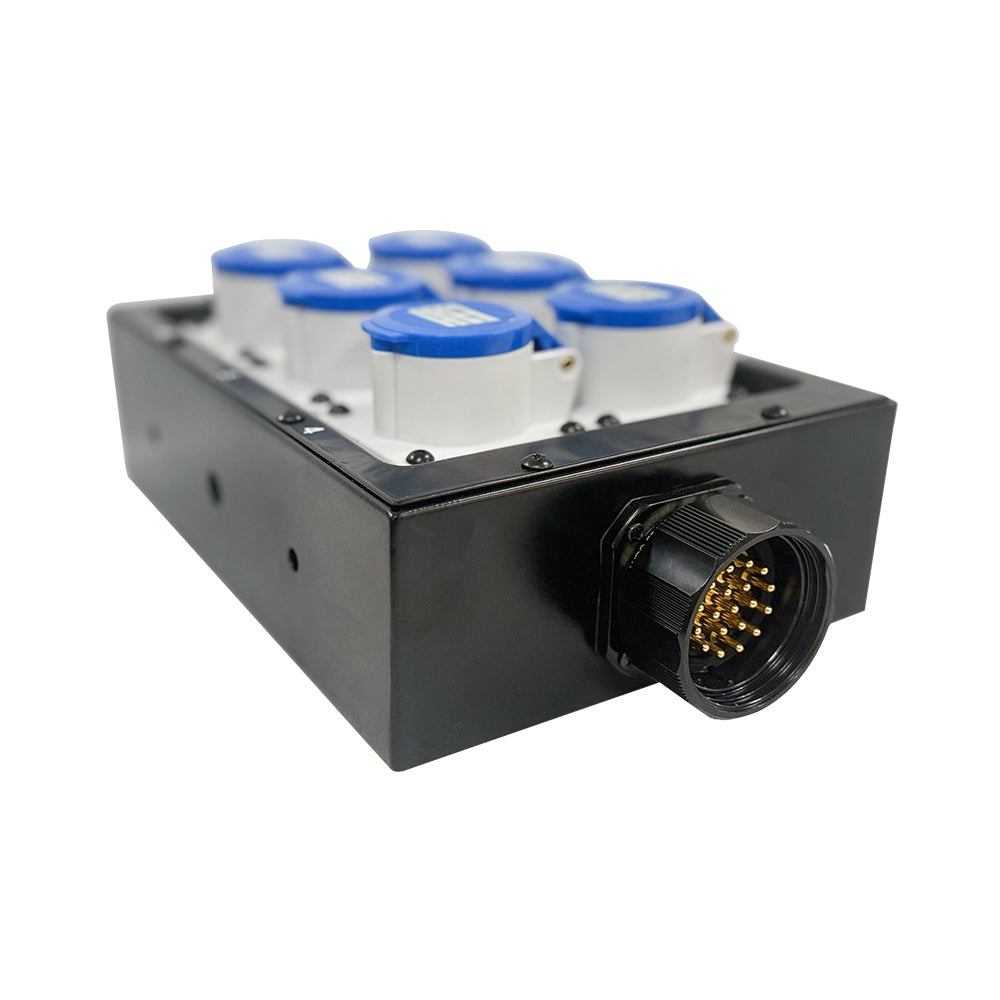

  • PDB-004 - Steel Power Box connector side view

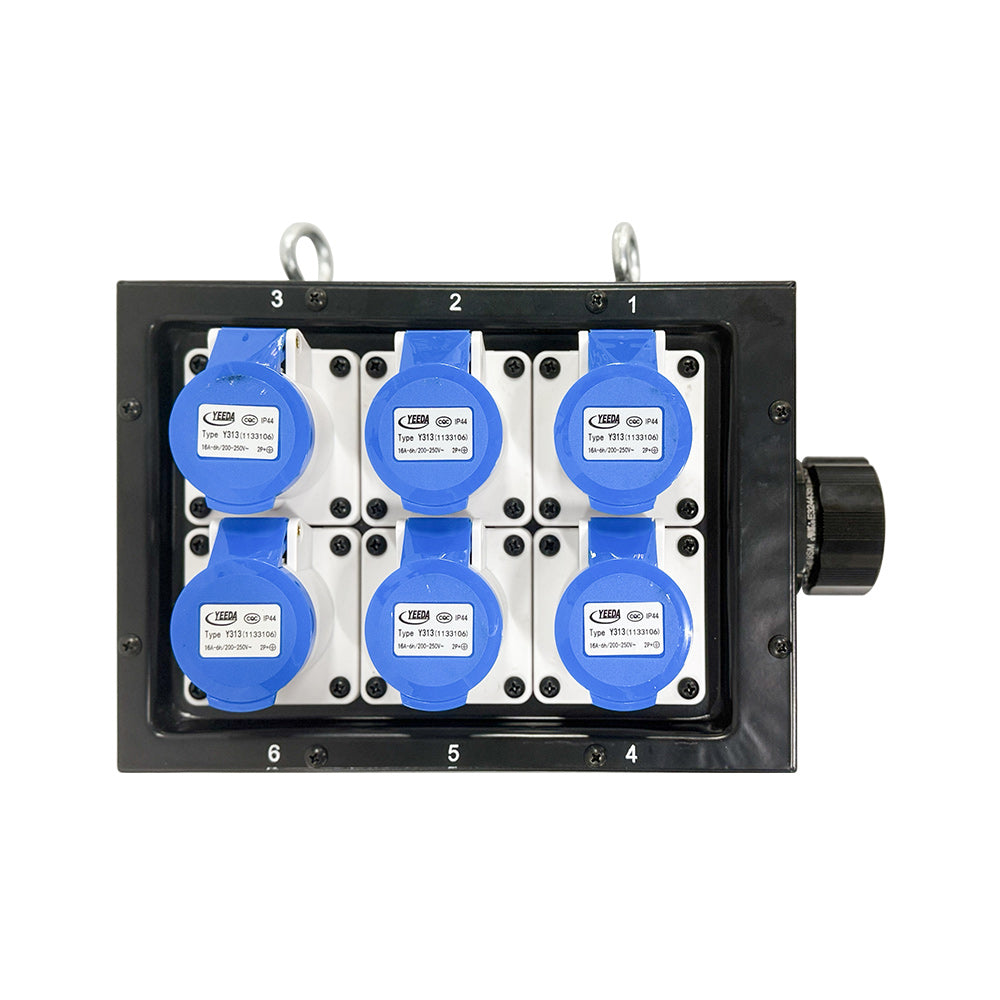

  • PDB-004 - Steel Power Box top outlet layout

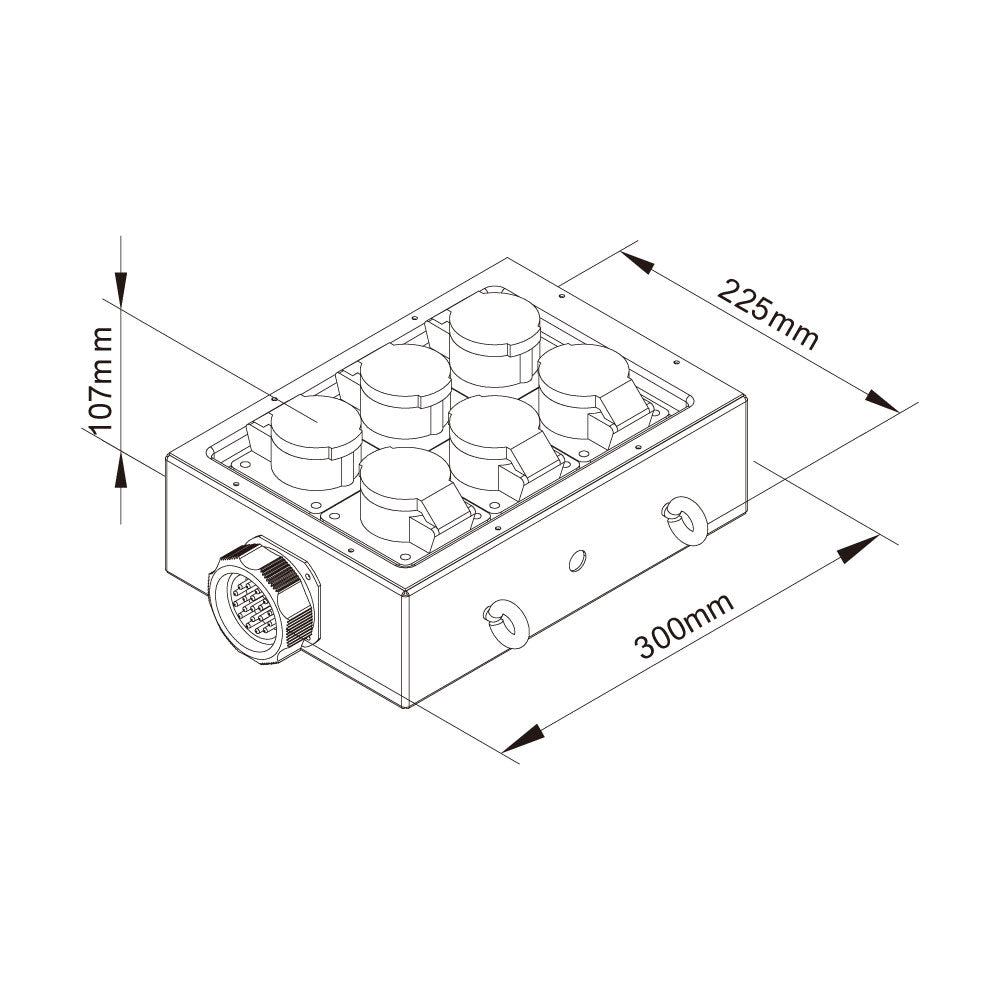

  • PDB-004 - Steel Power Box dimension diagram, side dimension diagram
1 6
View full details

Product Description

Overview

Kupo power distribution boxes are made of 1.2 mm thickness steel sheet. The internal wiring consists of 1.5 mm² / 16 AWG silicone cable. The sinking front panel for a better protection of each connector. The standard 2 hanging rings make rigging easier on truss. Each side with an extra clamp hanging hole to fit limited space. The followings are the range of power distribution boxes, other variations of power distribution boxes are available upon request.

Why It Matters

Distribution boxes need to be readable, rugged, and easy to rig. PDB-004 packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.

Key Features

  • 6 x CEE 16 A panel female
  • 1 x 19-pin panel male

Specifications

  • 6 x CEE 16 A panel female
  • 1 x 19-pin panel male

Applications

Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.

Compatibility

Use PDB-004 with CEE 16 A branch connectors and the listed multipin feeder format. Check connector gender, pin count, phase allocation, and the total current drawn by all outputs before placing it into a stage, rental, or installation power system.

Frequently Asked Questions

What does PDB-004 provide?

PDB-004 provides the connector layout listed in the specifications for a power distribution box application.

Can it be rigged on truss?

The source description notes standard hanging rings and clamp hanging holes for easier truss or limited-space placement.

Are custom variations possible?

The specification notes that other power distribution box variations are available upon request.
