Overview

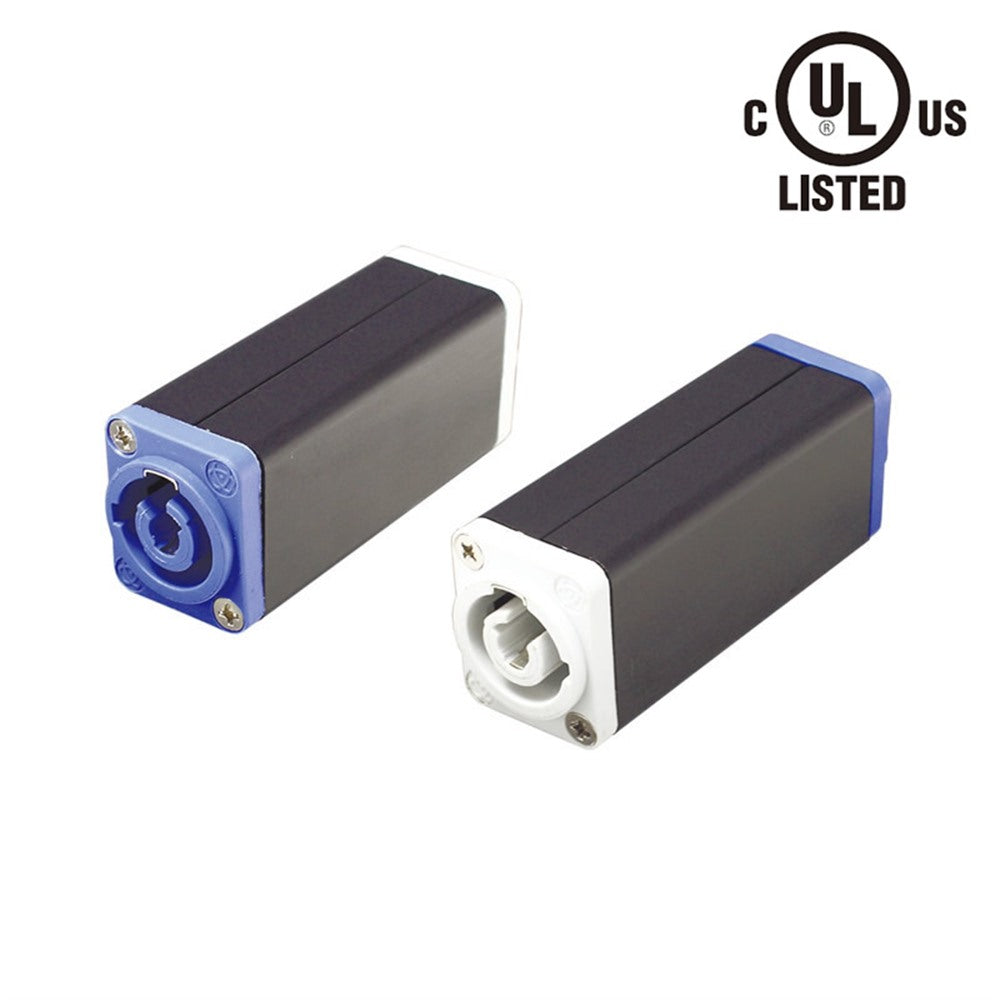

The robust chassis is fabricated with high tensile aluminum extrusion with black anodized finish. Mylar film completely wraps around the inner soldering area for best insulation. Soldered with 2.5 mm silicon wire secures higher working current capacity. Assembled with 20 A lockable socket, and compatible with original Neutrik Powercon connectors.

Why It Matters

Distribution boxes need compact construction, clear connector access, and dependable internal insulation. PDB-11JB packages a 20 A lockable socket in a black anodized aluminum extrusion chassis for professional power junction box applications.

Key Features

• High tensile aluminum extrusion chassis provides a robust, compact enclosure.
• Black anodized finish supports a low-profile professional appearance.
• Mylar film wraps the inner soldering area for insulation.
• 2.5 mm silicon wire supports higher working current capacity.
• 20 A lockable socket is compatible with original Neutrik Powercon connectors.

Specifications

• Product type: Power junction box.
• Chassis: High tensile aluminum extrusion.
• Finish: Black anodized.
• Insulation: Mylar film around the inner soldering area.
• Internal wiring: 2.5 mm silicon wire.
• Socket: 20 A lockable socket.
• Compatibility: Original Neutrik Powercon connectors.

Applications

Use it for stage power distribution, touring power packages, venue wiring support, and compact junction points where a lockable 20 A Powercon-compatible socket is required.

Compatibility

Use PDB-11JB with 20 A lockable Powerlead or original Neutrik Powercon-style connector systems that match the socket and internal wiring specification. Check the mating connector type, cable gauge, current rating, and enclosure grounding practice before installing it into a fixture, rack, or custom distribution build.
