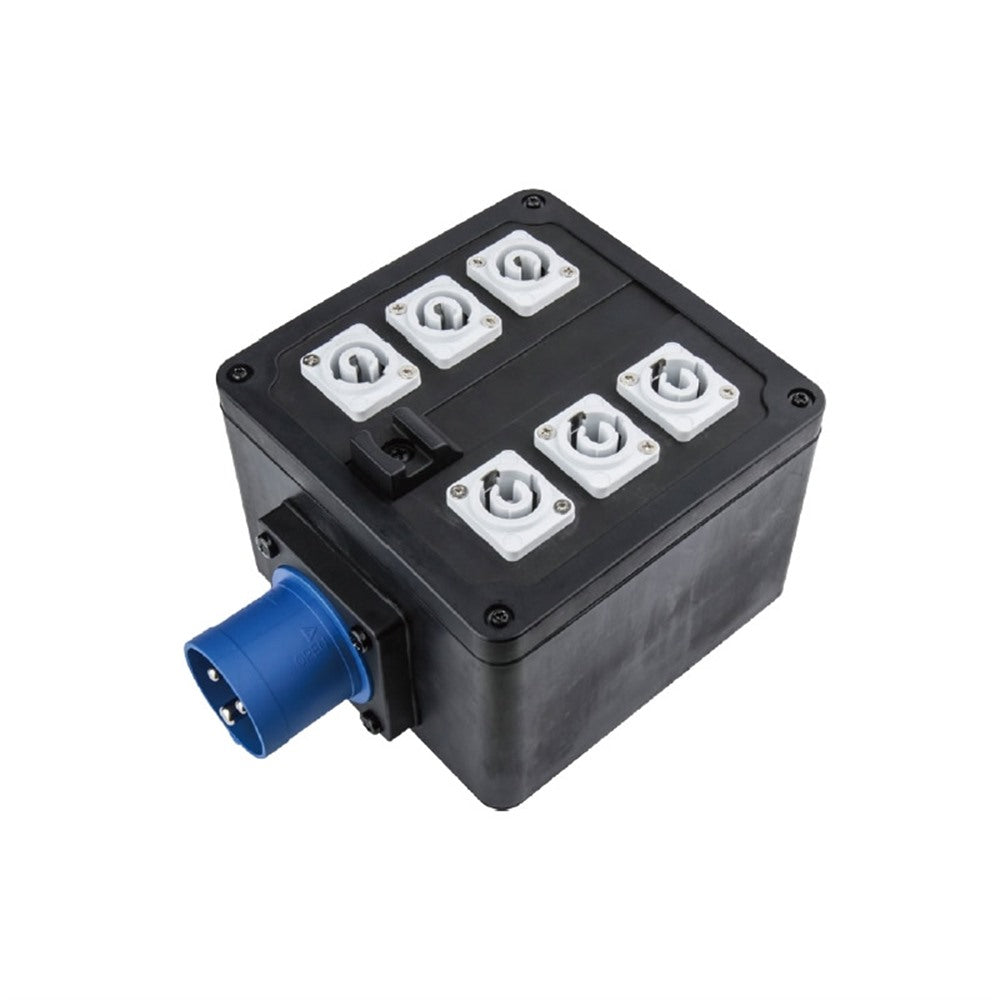

• PDB-C1601 - Power Distro Box product view

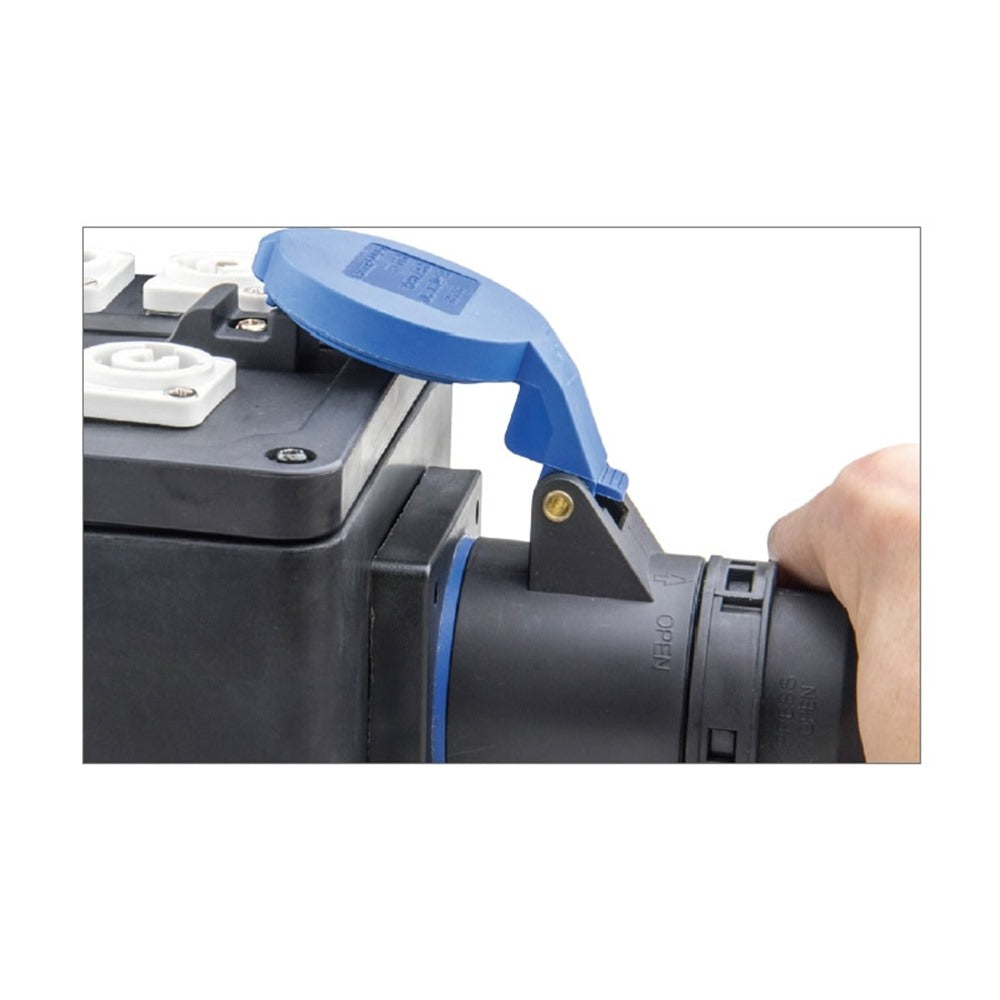

  • PDB-C1601 - Power Distro Box connector locking detail

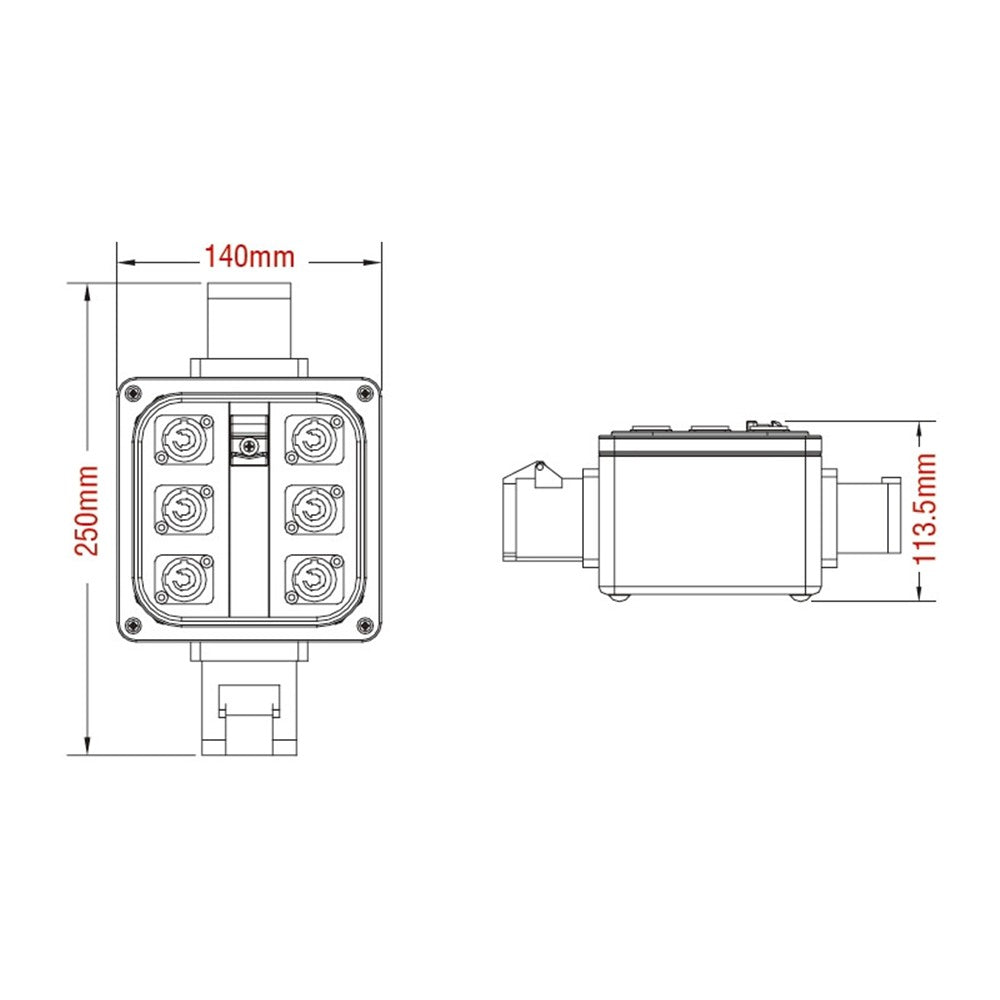

  • PDB-C1601 - Power Distro Box dimension diagram
1 3
View full details

Product Description

Overview

The KUPO PDB-C1601 is a rubber cubic power distribution box for compact stage power routing. This range of distro boxes are fabricated with cUL-listed 20 A powerlead receptacles, as well as CE-approval 16 A or 32 A CEE form receptacles. The boxes are made with 6 outlets for the greatest electric utility. Outlet panel is equipped with rubber cap rest so that the CEE form connector cover can hook on it without slip. Fully insulated, flame-retarded and UV resistant.

Why It Matters

Distribution boxes need to be readable, rugged, and easy to rig. PDB-C1601 packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.

Key Features

  • 6 powerlead outputs, max. 16 A

Specifications

  • 6 powerlead outputs, max. 16 A

Applications

Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.

Compatibility

Use PDB-C1601 with Powerlead or Neutrik PowerCon-compatible cables and devices that match the listed input, output, and maximum current rating. Check the upstream breaker, connector gender, and downstream load count before using it as part of a touring, studio, or installation power distribution layout.

Frequently Asked Questions

What does PDB-C1601 provide?

PDB-C1601 provides the connector layout listed in the specifications for a power distribution box application.

Can it be rigged on truss?

The source description notes standard hanging rings and clamp hanging holes for easier truss or limited-space placement.

Are custom variations possible?

The specification notes that other power distribution box variations are available upon request.
