Overview

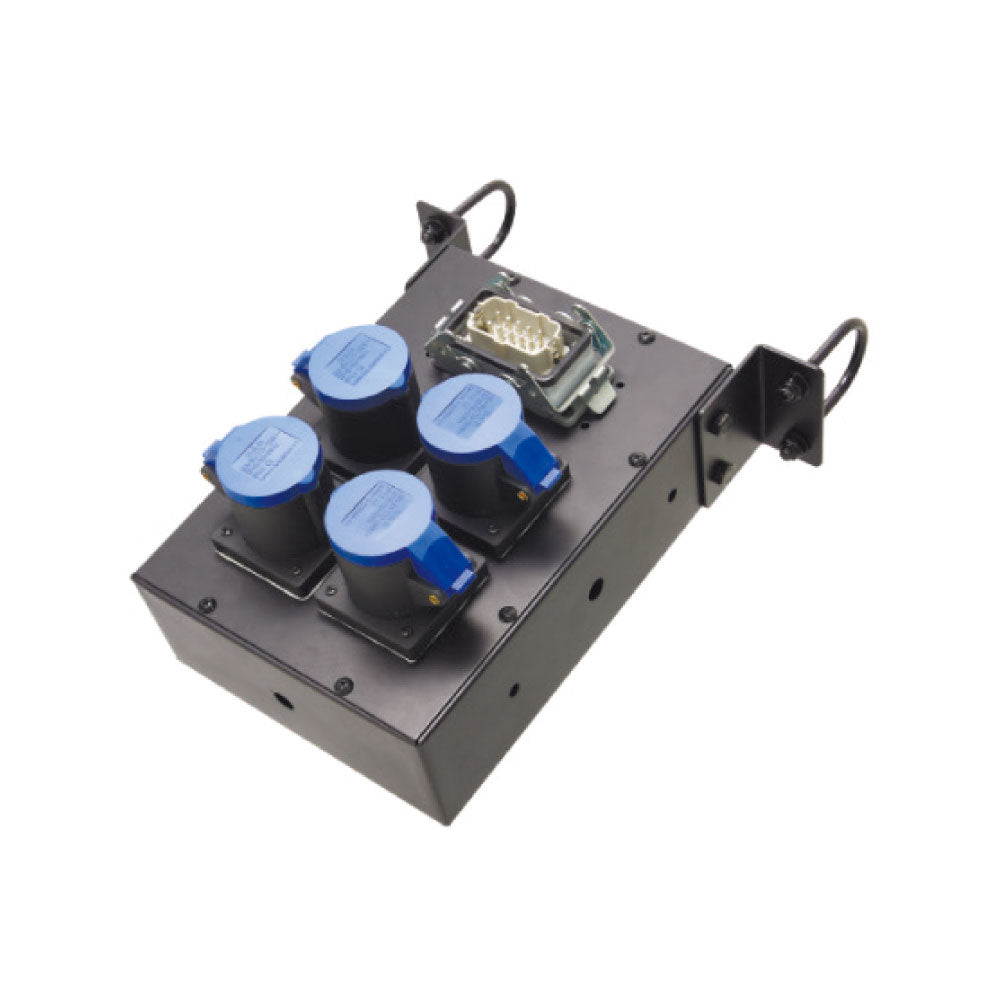

Kupo power distribution boxes are made of 1.2 mm thickness steel sheet. The internal wiring consists of 1.5 mm² / 16 AWG silicone cable. The sinking front panel for a better protection of each connector. The standard 2 hanging rings make rigging easier on truss. Each side with an extra clamp hanging hole to fit limited space. The followings are the range of power distribution boxes, other variations of power distribution boxes are available upon request.
Why It Matters
Distribution boxes need to be readable, rugged, and easy to rig. PDB-CH01 packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.
Key Features
- 4 x CEE 16 A panel female
- 1 x Multi-pole 10-pin panel male
- 2 x Hanging bracket for 1.5" tube (bracket for other size of tube is available)
Specifications
- 4 x CEE 16 A panel female
- 1 x Multi-pole 10-pin panel male
- 2 x Hanging bracket for 1.5" tube (bracket for other size of tube is available)
Applications
Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.
Compatibility
Use PDB-CH01 with CEE 16 A branch cables and a matching 10-pin multipole feeder, and check the hanging bracket size against the pipe or truss where the box will be mounted. Check phase assignment, bracket fit, and total connected load before using it for hoist or overhead power distribution.
