Kupo power distribution boxes are made of 1.2 mm thickness steel sheet. The internal wiring consists of 1.5 mm² / 16 AWG silicone cable. The sinking front panel for a better protection of each connector. The standard 2 hanging rings make rigging easier on truss. Each side with an extra clamp hanging hole to fit limited space. The followings are the range of power distribution boxes, other variations of power distribution boxes are available upon request.
Why It Matters
Distribution boxes need to be readable, rugged, and easy to rig. PDB-CH02 packages the listed connector layout in a power box format intended for cleaner stage, truss, and system wiring.
Key Features

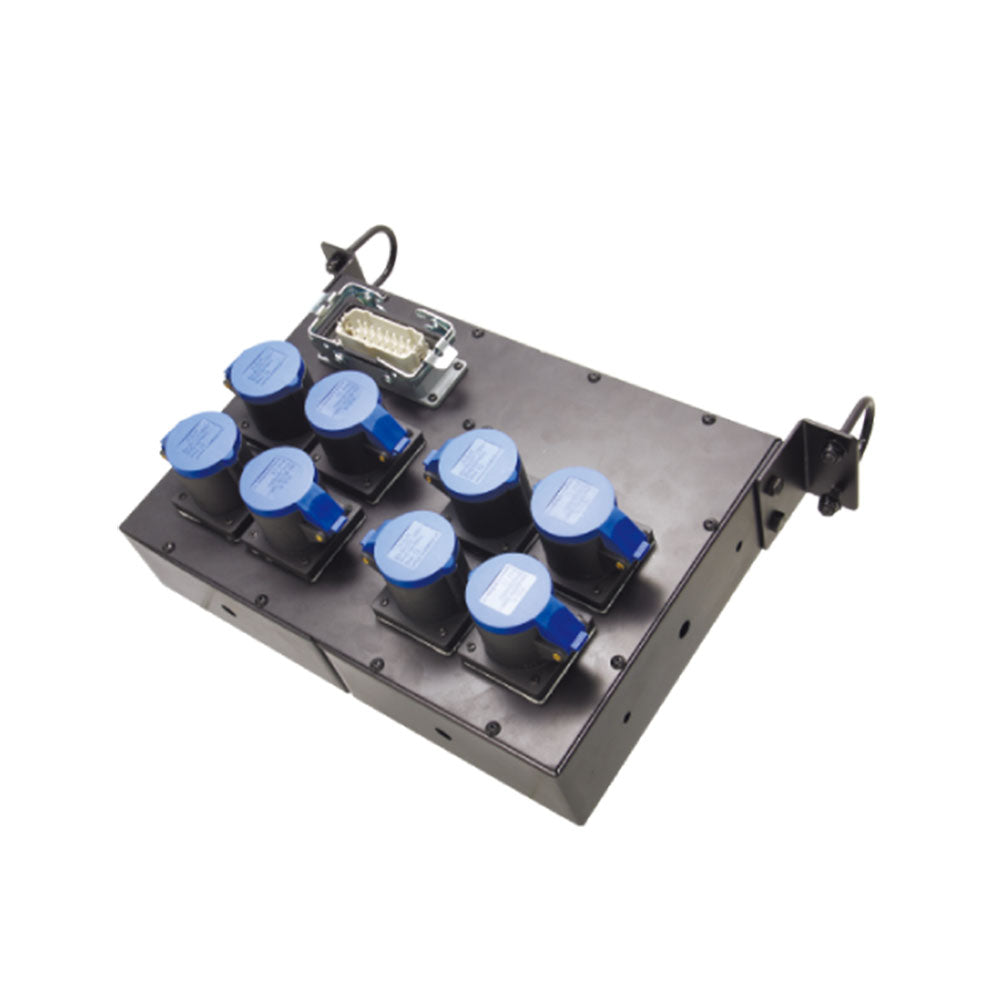

8 x CEE 16 A panel female
1 x Multi-pole 16-pin panel male
2 x Hanging bracket for 1.5” tube (bracket for other size of tube is available)
Specifications
8 x CEE 16 A panel female
1 x Multi-pole 16-pin panel male
2 x Hanging bracket for 1.5” tube (bracket for other size of tube is available)
Applications
Use it for stage power distribution, truss-mounted distro layouts, touring power packages, and organized power breakout points.
Compatibility
Use PDB-CH02 with CEE 16 A branch cables and the matching 16-pin multipole feeder listed in the specifications. Check phase assignment, connector gender, hanging bracket fit, and total connected load before mounting it on pipe or truss for overhead power distribution.
Frequently Asked Questions
What does PDB-CH02 provide?
PDB-CH02 provides the connector layout listed in the specifications for a power distribution box application.
Can it be rigged on truss?
The source description notes standard hanging rings and clamp hanging holes for easier truss or limited-space placement.
Are custom variations possible?
The specification notes that other power distribution box variations are available upon request.
