Product Description

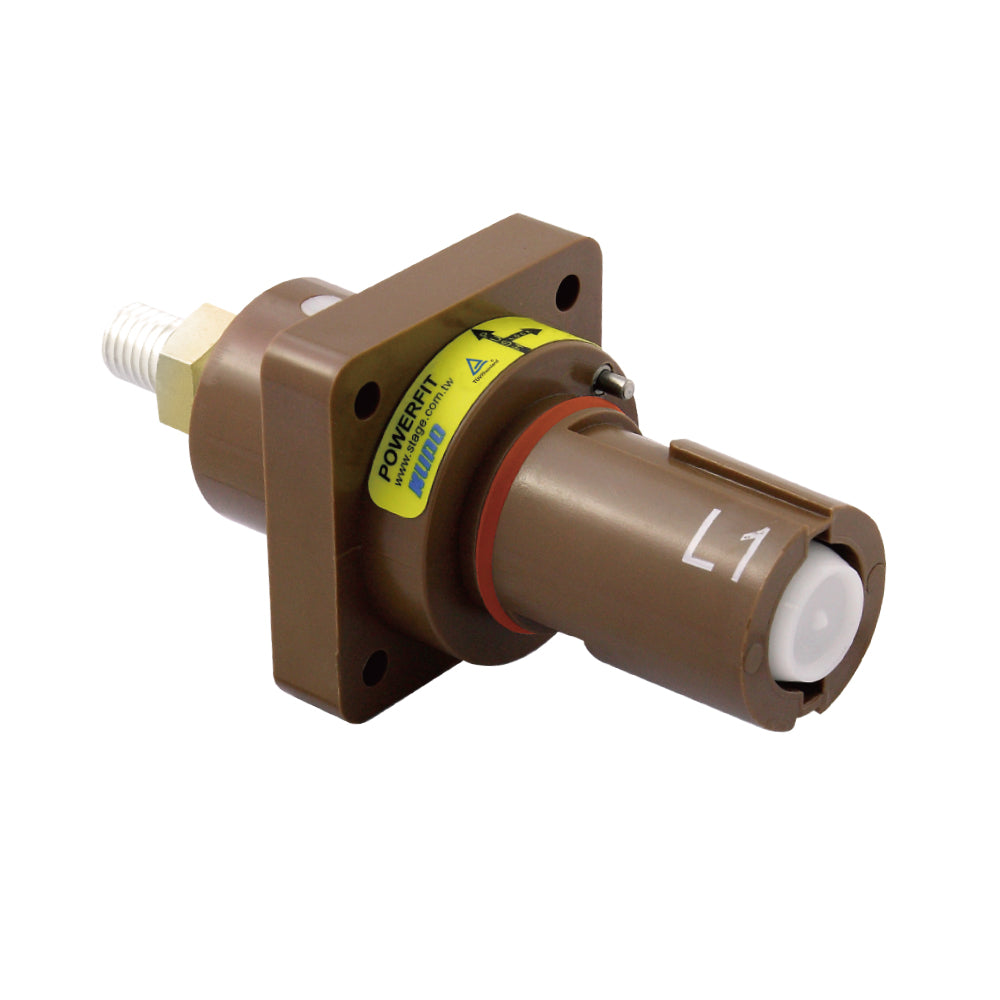

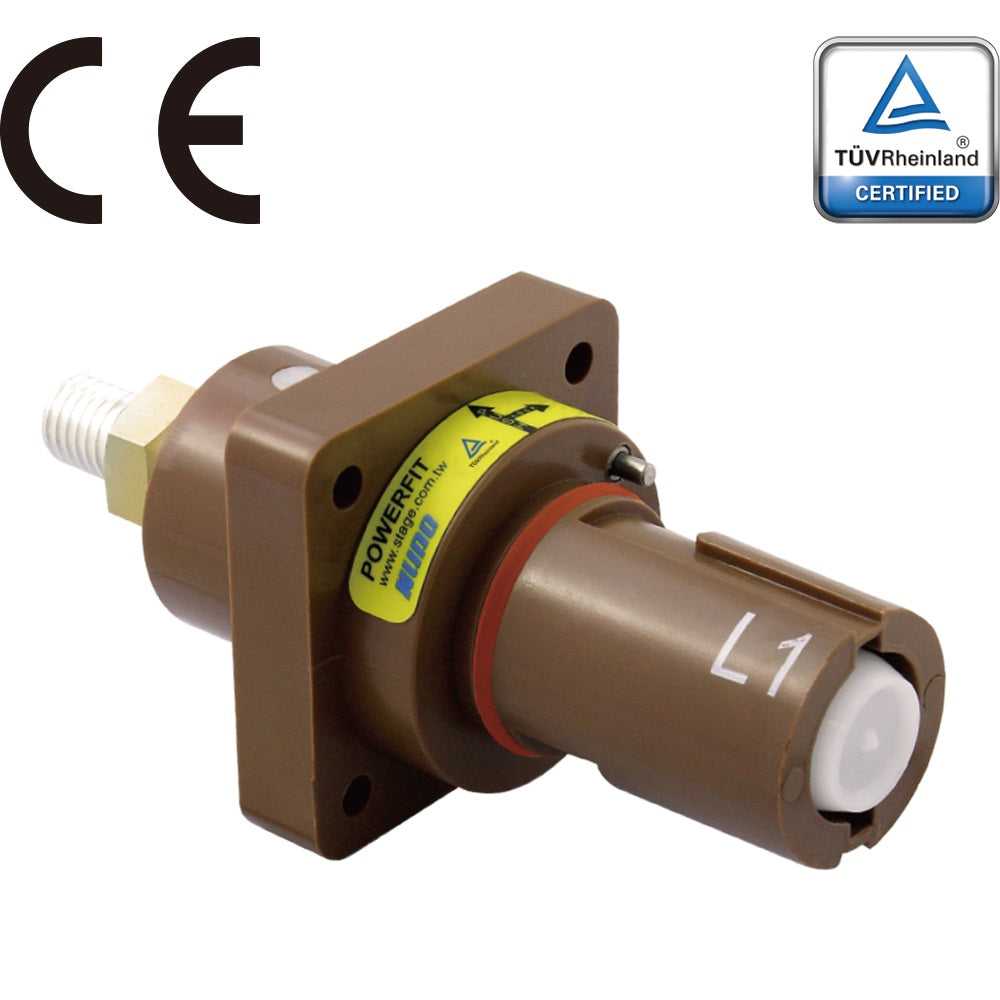

High-current power distribution demands connectors that stay reliable under repeated load-in, load-out, and field-service cycles. The PowerFit 750 A Panel Drain connector in brown is built for L1 circuits, combining a Drain interface, silver-plated copper contact construction, and a secure push-and-twist locking mechanism. For installation, it uses an M12 threaded post mount with brass nut and phosphor bronze washer for permanent panel installation. IP67 protection when mated and a UL94-V0 thermoplastic body help maintain safe performance in demanding touring, event, and industrial environments.
Key Features
- 750 A High-Current Rating: 750 A Maximum for heavy-duty single-pole power distribution
- Drain interface Design: Panel Drain (Drain interface) for mating with compatible PowerFit Line Source or Panel Source connectors
- Positive Push-and-Twist Lock: Maintains secure mechanical engagement after mating
- Copper Silver-Plated Contact: Excellent conductivity with 0.1 mOhms contact resistance for reduced voltage drop
- Panel-Mount Construction: M12 threaded post with brass nut and phosphor bronze washer for fixed installations
- Four-Point Flange Mounting: 42 mm x 42 mm cut-out with four diameter 5.5 mm fixing holes
- Silicone O-Ring: Provides protection against water and dust ingress after mating
- Durable Thermoplastic Housing: Non-conductive high impact-resistant body with UL94-V0 flame rating
- Voltage Capacity: 1000 V AC, 1500 V DC Maximum with 4500 V AC test voltage
- Certified Safety: TUV, CE, RoHS and REACH compliant for professional power distribution systems
Certifications & Standards
- TÜV certified for professional power connector applications
- CE Marking
- RoHS Compliant
- REACH Compliant
- UL94-V0 Flame Rating
- IP67 rating while mated
- 1000 V AC, 1500 V DC maximum voltage rating; 4500 V AC test voltage
- Short circuit rating: Up to 35.5 kA; insulation resistance > 5000 MOhms at 500 V AC
Applications
- Live Event Audio & Video Production
- Generator Panels, Distro Boxes & Power Supply Enclosures
- Touring Sound Systems
- Stage & Lighting Power Distribution
- Concert & Festival Infrastructure
- Mobile Production Trucks
- Rental & House Power Management
- Industrial High-Current Power Distribution
Compatibility
- Rated Amperage: 750 A Maximum
- Voltage Range: 1000 V AC, 1500 V DC Maximum
- Panel Mount: M12 threaded post; 42 mm x 42 mm cut-out with four diameter 5.5 mm fixing holes
- Mating Standard: Push-and-twist
- Mating Role: Panel Drain (Drain interface) mates with compatible Line Source or Panel Source connectors
- Phase Marking: L1 (Phase A) (IEC / 277-480 V North American)
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
Why use PFPD-1BN-T7 as the drain side of a 750 A PowerFit connection?
PFPD-1BN-T7 is the receiving side of the PowerFit 750 A connection, built to accept the mating source contact and hold the circuit mechanically stable after the push-and-twist engagement. The drain-side design is especially important on feeder runs and panel outputs because it keeps the energized source geometry on the correct side of the system while maintaining IP67 sealing when mated.
How does PFPD-1BN-T7 manage heat and voltage drop at 750 A loads?
PFPD-1BN-T7 uses a silver-plated copper contact with 0.1 mOhms contact resistance, which helps limit resistive heating at sustained current. It is rated for 750 A Maximum with a maximum voltage rating of 1000 V AC, 1500 V DC, a 4500 V AC dielectric test voltage, and short circuit capacity of up to 35.5 kA. For real installations, the connector should still be paired with correctly sized cable, proper termination practice, and load calculations for the full distribution run.
What does the brown housing on PFPD-1BN-T7 tell the crew before power is applied?
The brown housing identifies L1 (Phase A) (IEC / 277-480 V North American). On the Panel Drain connector, the color remains visible on the panel-mounted face, so a technician can trace the intended conductor before coupling or energizing the system. This is more than cosmetic: the SKU code and housing color work together to reduce cross-phase mistakes when different regional color conventions appear in the same rental inventory.
What panel detail matters most when mounting PFPD-1BN-T7?
PFPD-1BN-T7 uses an M12 threaded post and mounts through a 42 mm x 42 mm cut-out with four diameter 5.5 mm fixing holes. The brass nut and phosphor bronze washer should be tightened within the specified 12-14 N/meter maximum torque range. That mounting geometry is what keeps the connector stable when heavy feeder cables are repeatedly connected, disconnected, or pulled at an angle near a distro panel.
How does PFPD-1BN-T7 hold up in outdoor event or rental-house service?
PFPD-1BN-T7 is IP67 rated while mated, uses a non-conductive high impact-resistant thermoplastic body, and carries a UL94-V0 body material rating. The 500-cycle mating rating suits rental and production environments where connectors are repeatedly assembled, inspected, packed, and redeployed. In wet grass, dusty stages, and temporary generator yards, the sealed mated interface is the detail that keeps a power run from becoming the weak point of the show.
What source connector should be matched with PFPD-1BN-T7?
PFPD-1BN-T7 should be matched with the corresponding PowerFit 750 A source connector for the same phase or conductor color. The drain connector receives the source contact and completes the sealed push-and-twist interface, so the safest layout is one where SKU, housing color, and conductor assignment all agree. Before energizing, confirm that the mating source is rated for the same current, voltage, and environmental conditions.
Where does PFPD-1BN-T7 make the most sense in a power distribution build?
PFPD-1BN-T7 is best suited to fixed equipment faces such as generator output panels, portable distro boxes, switchgear doors, or custom power racks. It gives the panel builder a repeatable interface for high-current single-pole connections while preserving the same PowerFit phase-color logic used on the cable-mounted line connectors.
