Product Description
Overview

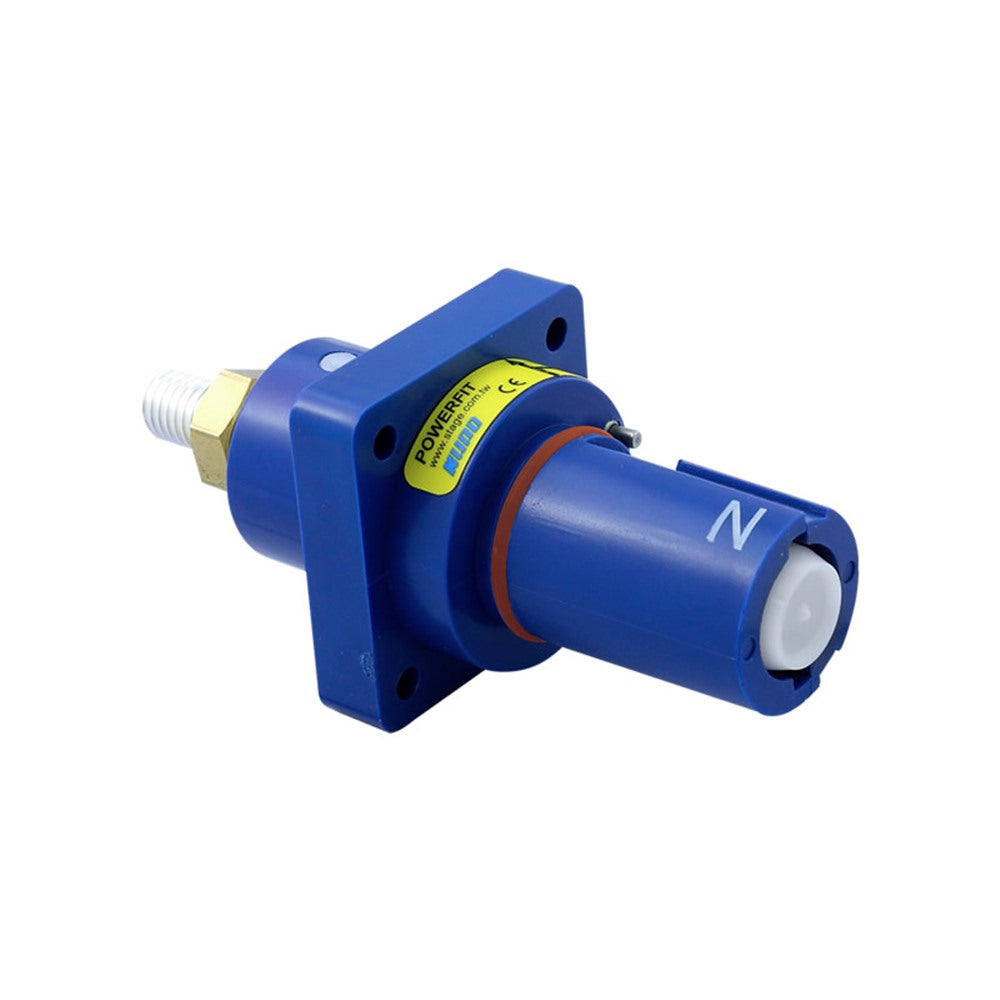

European three-phase power systems operating under IEC electrical standards require neutral conductor connections that deliver 400 A continuous current while maintaining circuit balance and voltage regulation across multi-phase distribution infrastructure. The PowerFit 400 A Panel Drain connector in blue (Neutral NBL - IEC) provides the enclosure-mount architecture for neutral distribution in European industrial facilities, renewable energy installations, and utility switching systems, ensuring color-coded compliance with modern IEC 60446 standards where blue identifies the neutral conductor. Operating at 400 A continuous with silver-plated brass contacts rated for 500 mating cycles, this connector delivers the patent key-release pin for safe disconnection and plastic end cap protection, enabling technicians to complete critical return current paths in European three-phase power systems.
Key Features
- 400 A continuous current rating at 120 mm² cable; 660 A at 240 mm² cable for European three-phase neutral distribution
- Fesource interface design ensures secure mating with Panel Source neutral connectors in European multi-phase cabinets
- M12 threaded post with brass nut and spring washer provides reliable fastening for permanent neutral connections
- Four diameter 5.5 mm fixing holes (42 mm x 42 mm cut-out) accommodate European electrical cabinet standards
- Patent key-release pin enables safe disconnection of neutral return paths during maintenance without tools
- Plastic end cap over drain interface provides IP 2X finger protection in high-density European distribution rooms
- Push-and-twist locking mechanism prevents vibration-induced separation of critical neutral return paths
- Silver-plated brass contact delivers 0.1 mOhms contact resistance, minimizing neutral point impedance and voltage imbalance
- Non-conductive UL94-V0 thermoplastic housing meets European electrical safety standards for neutral conductors
- IP67 rating while mated protects neutral connections against moisture and dust ingress in industrial facilities
- Maximum nut torque: 12 to 14 N/meter ensures secure mounting without risk of rework
- Blue color codes as Neutral (N) under modern European electrical standards (IEC 60446)
Standards

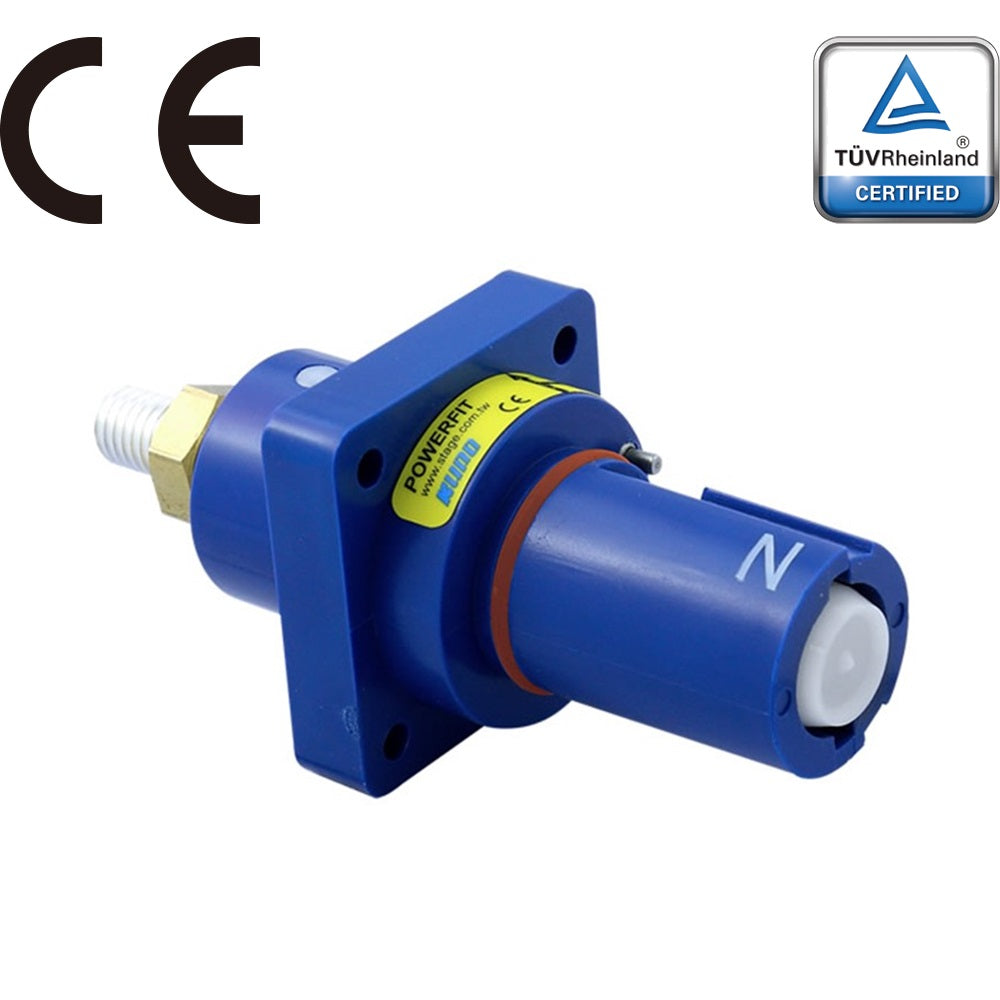

TÜV Rheinland certified (ID 1111303479) for European three-phase system compliance; CE marking for pan-European multi-phase electrical system certification; RoHS and REACH compliant for environmental responsibility in European neutral conductor systems; UL94-V0 flame retardancy rating for European industrial facility safety; IP67 rating (dust-tight, temporary submersion protection) suitable for indoor European multi-phase installations; 1000 V AC / 1500 V DC maximum operating voltage; 4500 V AC dielectric test; Short circuit rating: Up to 35.5 kA; insulation resistance greater than 5000 MOhms at 500 V AC; Working temperature range: 45 to 85 °C - stable across European temperate and warm climates. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for european industrial facility three-phase neutral bus distribution and load balancing systems, utility substation step-down transformer neutral grounding interconnection infrastructure, data center and computer room uninterruptible power supply (UPS) neutral return distribution, european renewable energy facility (wind, solar, hydro) three-phase neutral completion, hospital and medical facility three-phase electrical distribution neutral conductor systems, manufacturing complex neutral switchboard and motor control center interconnection, and building-integrated renewable energy system three-phase neutral infrastructure.
Compatibility
The PowerFit 400 A Panel Drain connector is compatible with major brands of single-pole power connector systems used in European three-phase electrical infrastructure. Its M12 threaded post interface and push-and-twist mating mechanism follow IEC-aligned connection geometry across certified suppliers. Verify that your Panel Source neutral connector is rated for continuous neutral current flow and matches your facility three-phase distribution specifications. The blue color housing complies with modern European IEC 60446 neutral identification standards and facilitates seamless integration with European electrical infrastructure.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What kind of installations require PFPD-NBL?
PFPD-NBL is a KUPO PowerFit 400 A panel drain connector with a blue housing, designated for the Neutral (N) conductor under Europe and UK (IEC 60446) conventions. Mounted permanently in enclosures and distribution boxes, it serves as the final destination in the PowerFit electric direction flow, where incoming power from Line Source connectors enters the downstream equipment. The four-point flange mount and M12 threaded post ensure vibration-resistant installation. It is commonly deployed in sports venue and stadium event applications. Stadium events combine massive power demands with outdoor exposure and strict safety requirements.
How does PFPD-NBL handle the electrical demands of fixed power distribution?
PFPD-NBL is rated for 400 amperes continuous with 120 mm² cable, scaling to 660 amperes with 240 mm² cable. The maximum voltage rating is 1000 V AC or 1500 V DC. The M12 threaded post termination accepts conductors through a brass nut and washer assembly, tightened to a maximum of 12 to 14 N/m. The four-point flange mount with 5.5 mm fixing holes distributes mechanical load across the panel surface.
How does the blue color coding on PFPD-NBL prevent neutral-phase confusion?
Blue as Neutral follows IEC 60446, the current harmonized European and UK standard. Under IEC, blue is exclusively reserved for the neutral conductor. This is the most commonly specified neutral color in international installations and is mandatory in EU member states. On the Panel Drain, the blue color is visible on the connector face that protrudes from the enclosure panel. When multiple PowerFit connectors are mounted side by side in a distribution box, the color-coded faces create a clear visual map of the phase layout for incoming connections. Using blue for neutral in IEC jurisdictions is not optional. It is a code requirement that simplifies circuit identification and improves safety across multi-national installations.
What regulatory approvals does PFPD-NBL hold for fixed installations?
PFPD-NBL is TUV Rheinland certified (ID 1111303479) under Type Approval, Safety, and Regular Production Surveillance categories. It also carries CE marking, RoHS compliance (Restriction of Hazardous Substances), and REACH compliance. The housing material achieves a UL94-V0 flammability rating, which is the highest classification for vertical flame resistance in plastics, meaning the material self-extinguishes within 10 seconds with no flaming drips. For permanent installations, the IP 2X finger protection prevents accidental contact with live parts when the connector face is exposed, and the four-point flange mount exceeds mechanical retention requirements.
What panel preparation does PFPD-NBL require for permanent installation?
Installing PFPD-NBL requires a 42 x 42 mm cutout in the enclosure panel. The connector mounts through four 5.5 mm fixing holes on its flange, distributing clamping force evenly for vibration resistance. The M12 threaded post accepts the brass nut and washer, tightened to a maximum of 12 to 14 N/m. IP 2X finger protection is built into the connector face, preventing accidental contact with live parts when no mating connector is inserted. A plastic end cap protects the contacts during storage and transport. The Panel Drain has a 55.0 mm flange width and 72.2 mm total depth, with a 37.0 mm body diameter. The flange provides a generous mounting surface for secure enclosure attachment.
What sets PFPD-NBL apart from conventional panel-mount power connectors?
PFPD-NBL offers several meaningful improvements over conventional single-pole power connectors: IP 2X finger protection prevents accidental contact with live parts when the connector face is exposed; IP67 protection when mated provides dust-tight and waterproof sealing that most single-pole connectors lack; the 1000 V AC / 1500 V DC voltage rating exceeds the typical 600 V maximum of traditional alternatives; silver-plated brass contacts deliver lower contact resistance (0.1 mOhms) than plain brass. These features, combined with TUV Rheinland certification and the phase-encoded blue housing for N identification, make PowerFit a generation ahead of traditional designs.
