Overview

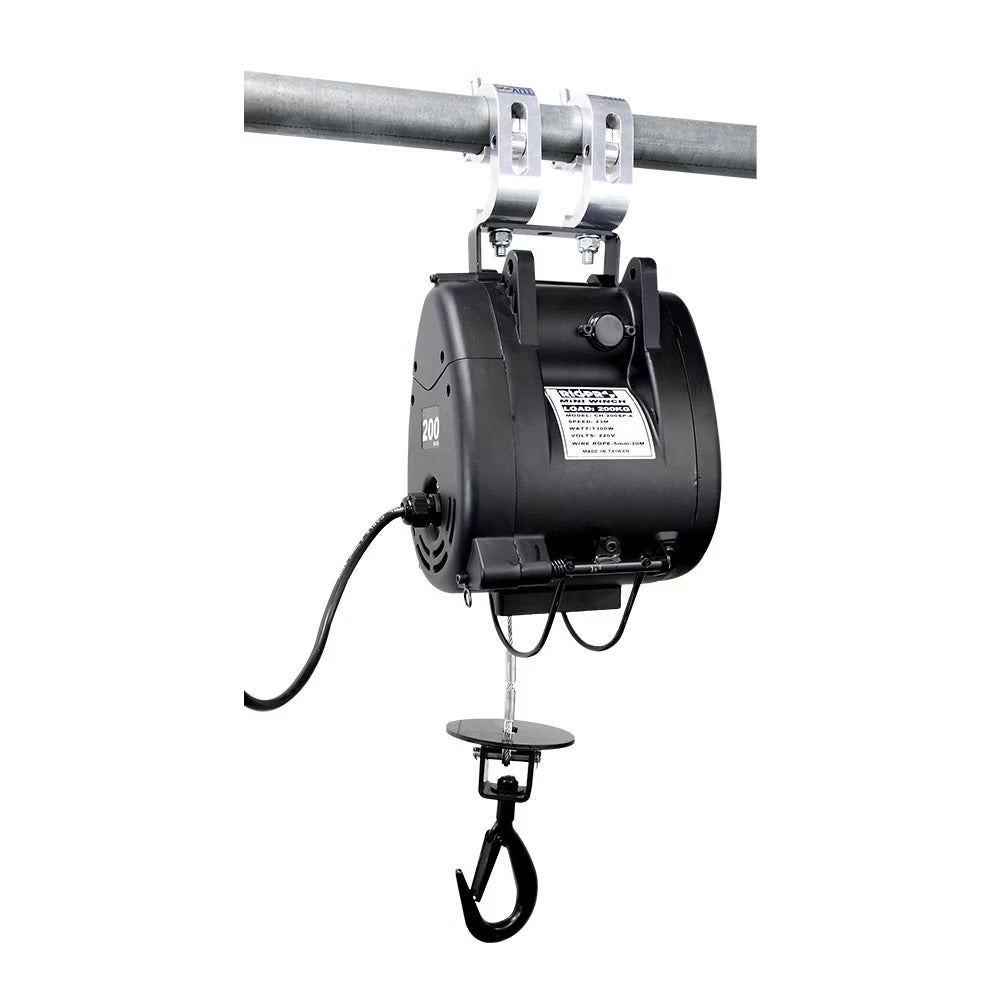

The KUPO PL-200 is a compact single-phase wire winch with 200 kg working load capacity, designed for smaller venues and portable installs where three-phase chain hoist infrastructure is not practical. It runs from single-phase 100-120 V at 60 Hz or 200-240 V at 50 Hz and uses a 5 mm stainless steel wire rope on a 30 mm drum.

Why It Matters

PL-200 is useful when the job needs real lifting control but not a full motor rig. Its 15 kg net weight, supplied handcuff couplers, dual brake system, upper and lower limit switches, and matched CHC-11-1P controller make it a practical winch for on-the-go production work.

Key Features

• 200 kg working load capacity covers small-to-medium wire winch lifting tasks.
• Single-phase power input lets the winch run where three-phase distro is not available.
• 5 mm stainless steel wire rope on a 30 mm drum gives usable travel for compact venue work.
• Dual dynamic and mechanical brake system plus upper and lower limit switches support controlled stopping and travel protection.

Performance & Safety

The PL-200 is not a chain hoist, but it still belongs in the rigging lift family and needs the same attention to capacity, brake system, and travel limits.

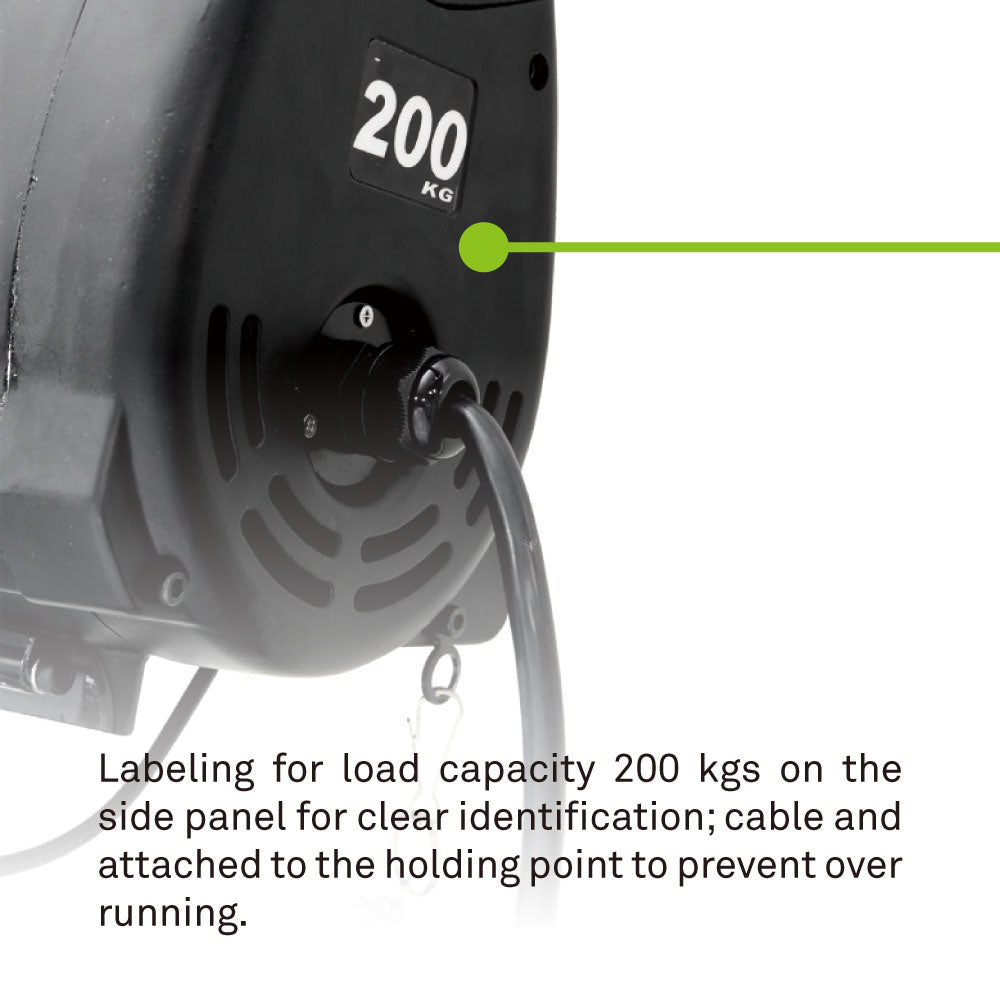

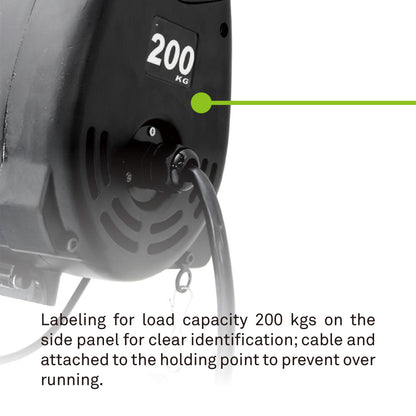

• Working load capacity: 200 kg.
• Lift speed: 19 m/min at 50 Hz, 23 m/min at 60 Hz.
• Motor: 1.2 kW single-phase.
• Duty cycle: ED 30 %, 300 starts per hour.
• Brake System: dual dynamic and mechanical brake system.

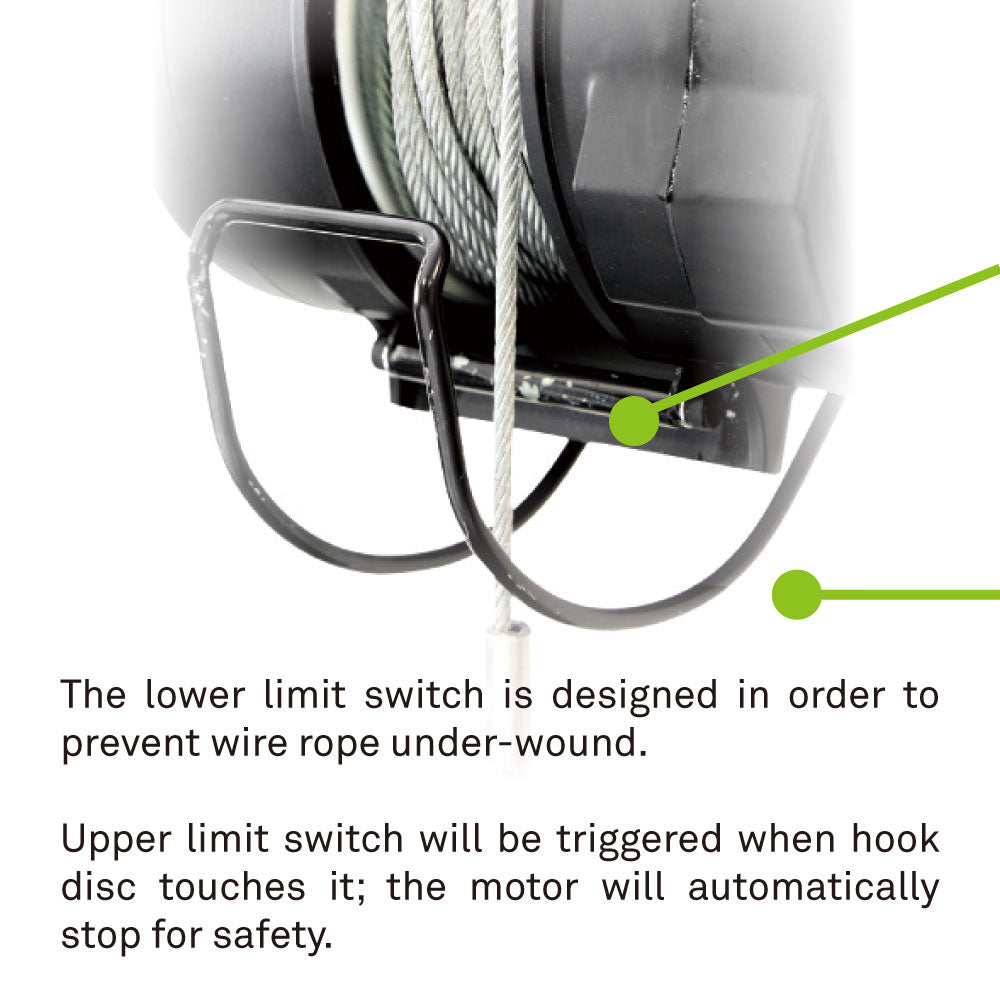

• Limit switches: upper hook-disc trigger and lower anti under-wind.

Additional Technical Notes

• Dimensions: 240 L x 180 W x 660 H mm
• Gross Weight: 23 kg
• Finish: Matt black powder coating

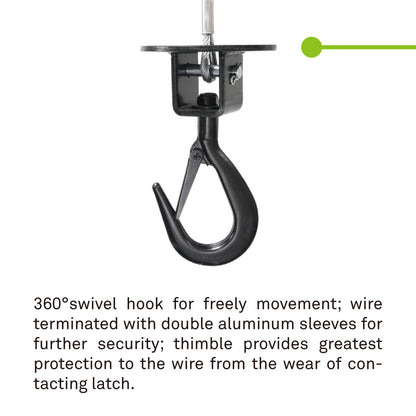

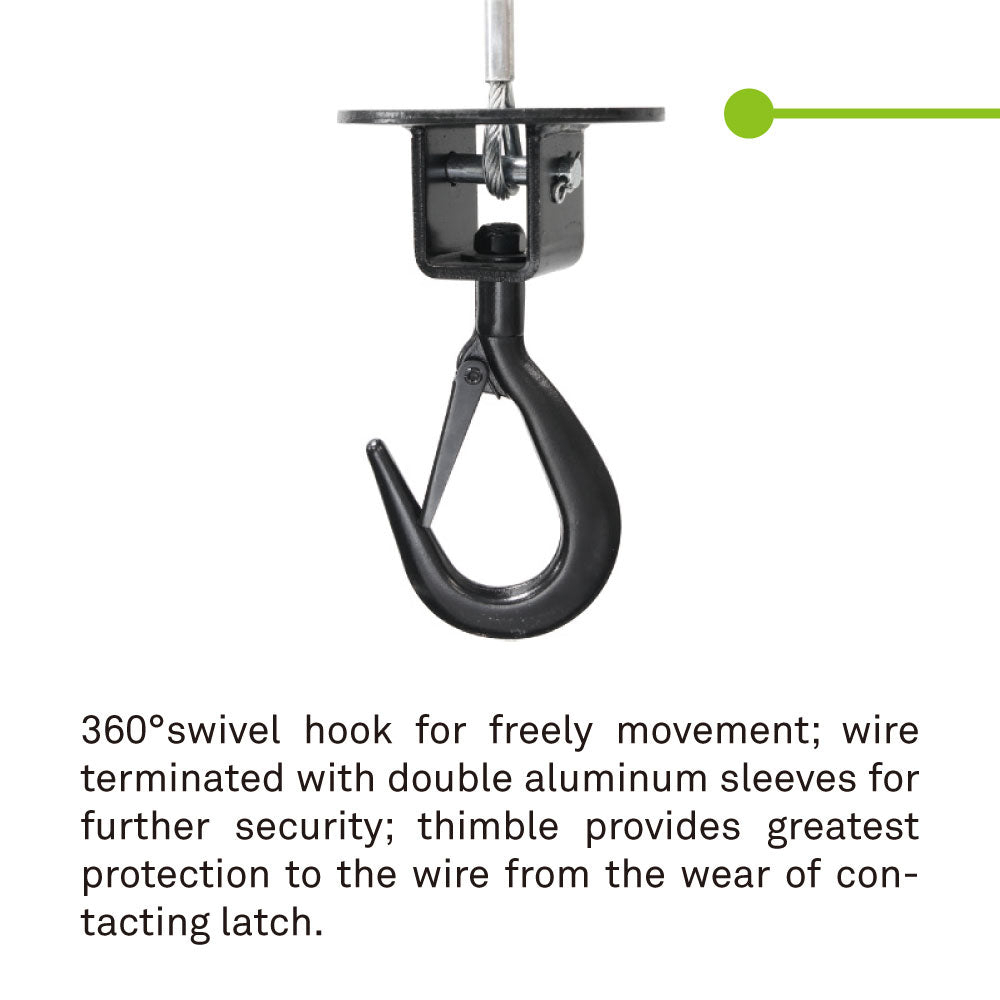

• Hook: 360° swivel

Applications

Use for small-to-medium venue lifts, temporary installs, compact production tasks, lighting or scenic movement, and jobs where a single-phase wire winch is more practical than a larger chain hoist system.

Compatibility

Direct-controlled through the CHC-11-1P single-phase one-channel handheld controller, and supplied with two handcuff couplers for 2" tube mounting.
