Overview

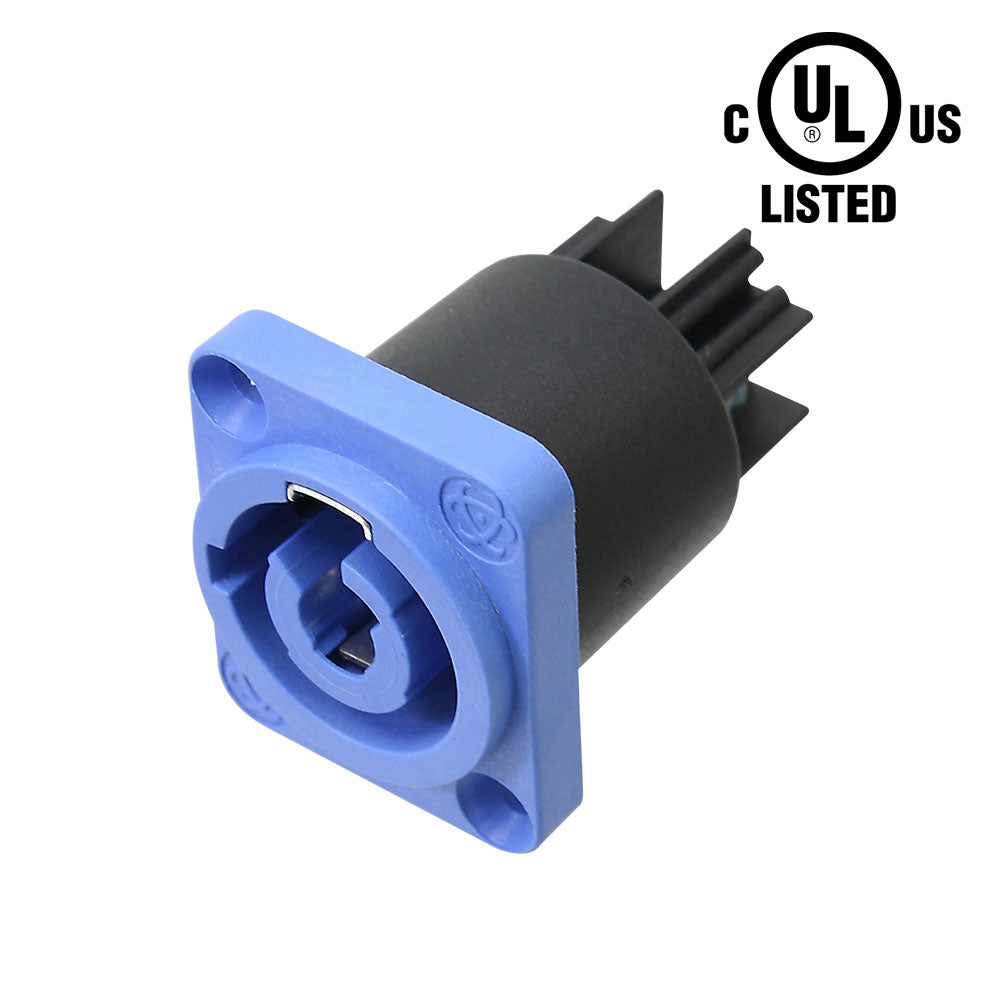

The KUPO PL-3MPA Powerlead connector is built for entertainment power systems that need a positive twist-and-lock connection. Its single-phase design gives fixtures, dimmers, and distribution boxes a secure mating interface, with construction details chosen for repeated production handling.
Why It Matters
The blue and grey Powerlead system is color-coded and non-interchangeable to help prevent source/load mistakes. Micro silver-plated contacts, screw-cage termination, reinforced thermoplastic housing, and a wide cable bushing range support dependable 20 A power connections.
Key Features
- Panel Connector Power-In / Inlet connector rated 20 A per contact at 250 V
- Blue color coding for power-in / inlet discipline

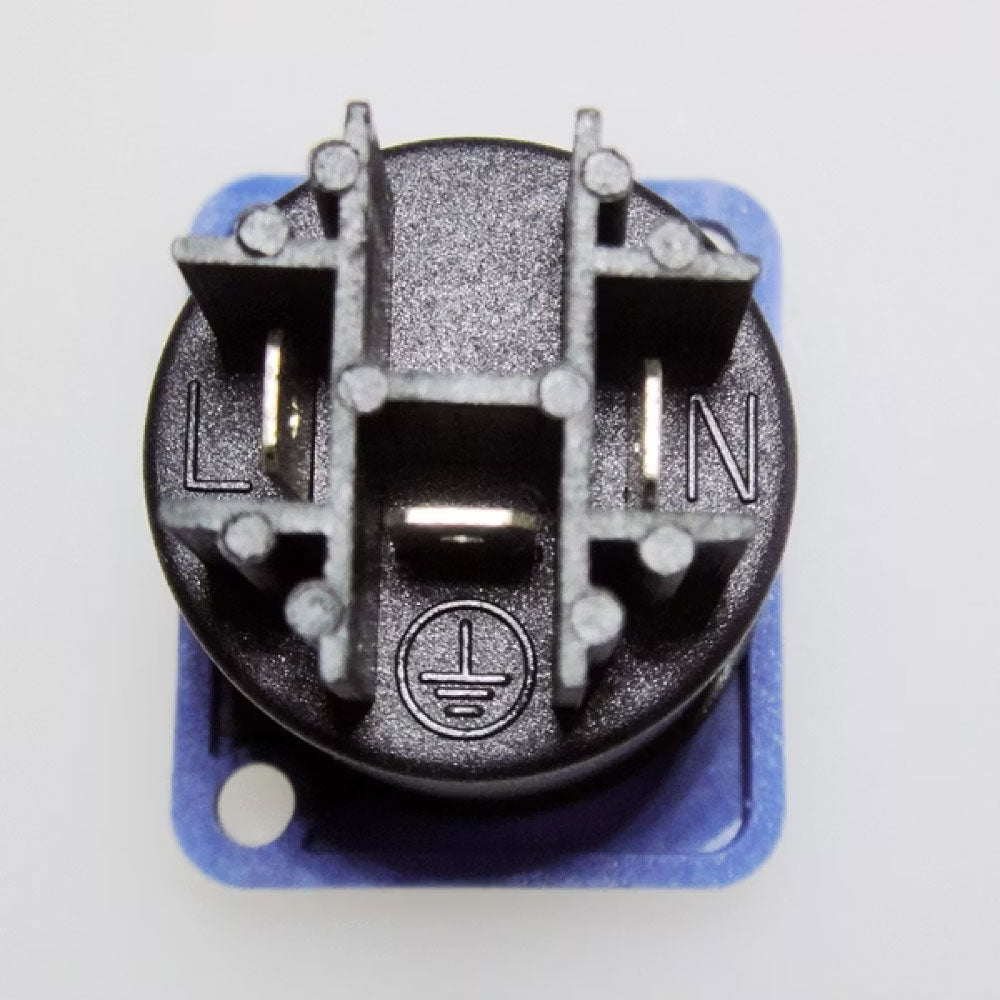

- Screw-cage termination accepts 2.5 mm² / 14 AWG wire
- Cable O.D. range from 5 to 15 mm with rubber bushing protection
- UL / UL / cUL Listed with lifetime rated greater than 1000 mating cycles
Applications
PL-3MPA is suited to LED fixtures, entertainment power distribution, touring racks, dimmer or fixture panels, feed-through units, and cable assemblies that require a locking Powerlead connection.
Compatibility
Use PL-3MPA with compatible Powerlead connectors in the same family. It mates with PL-3 FCA inline cable connectors; verify color coding, polarity, cable size, mounting cutout, and electrical rating before installation.
