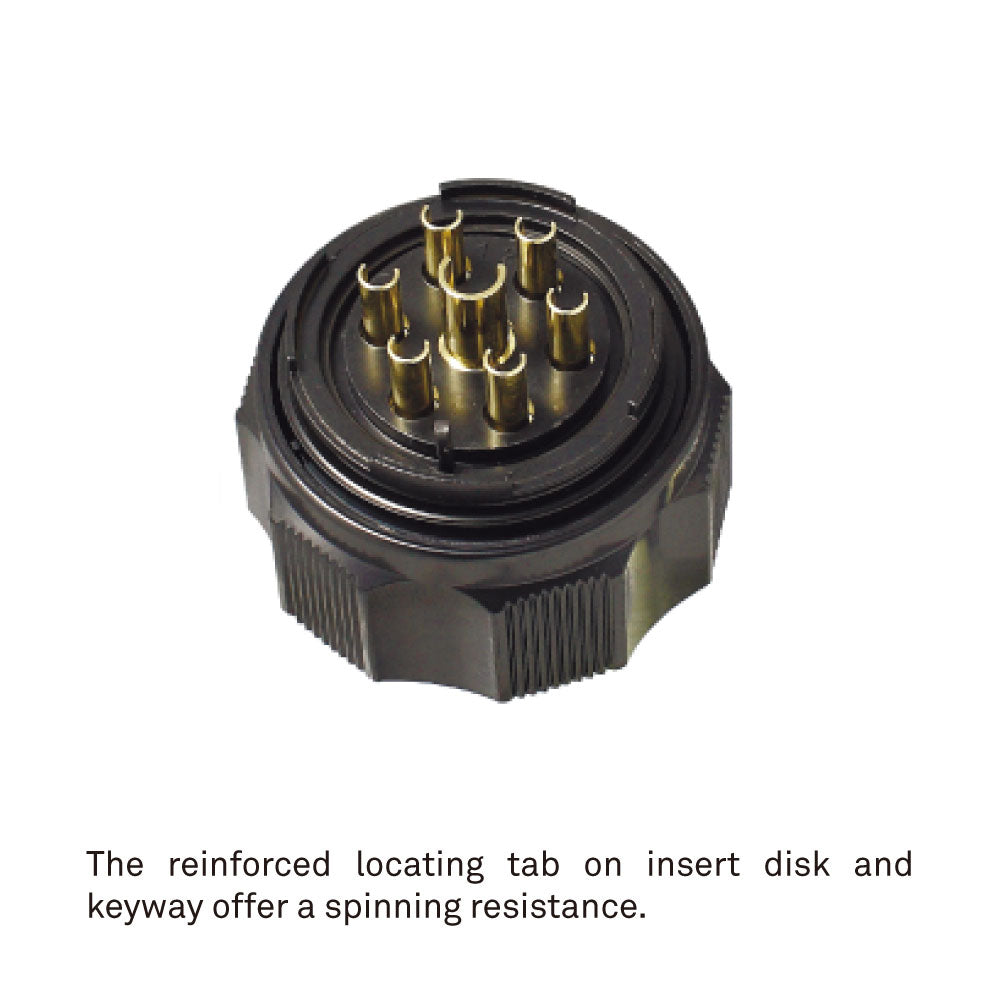

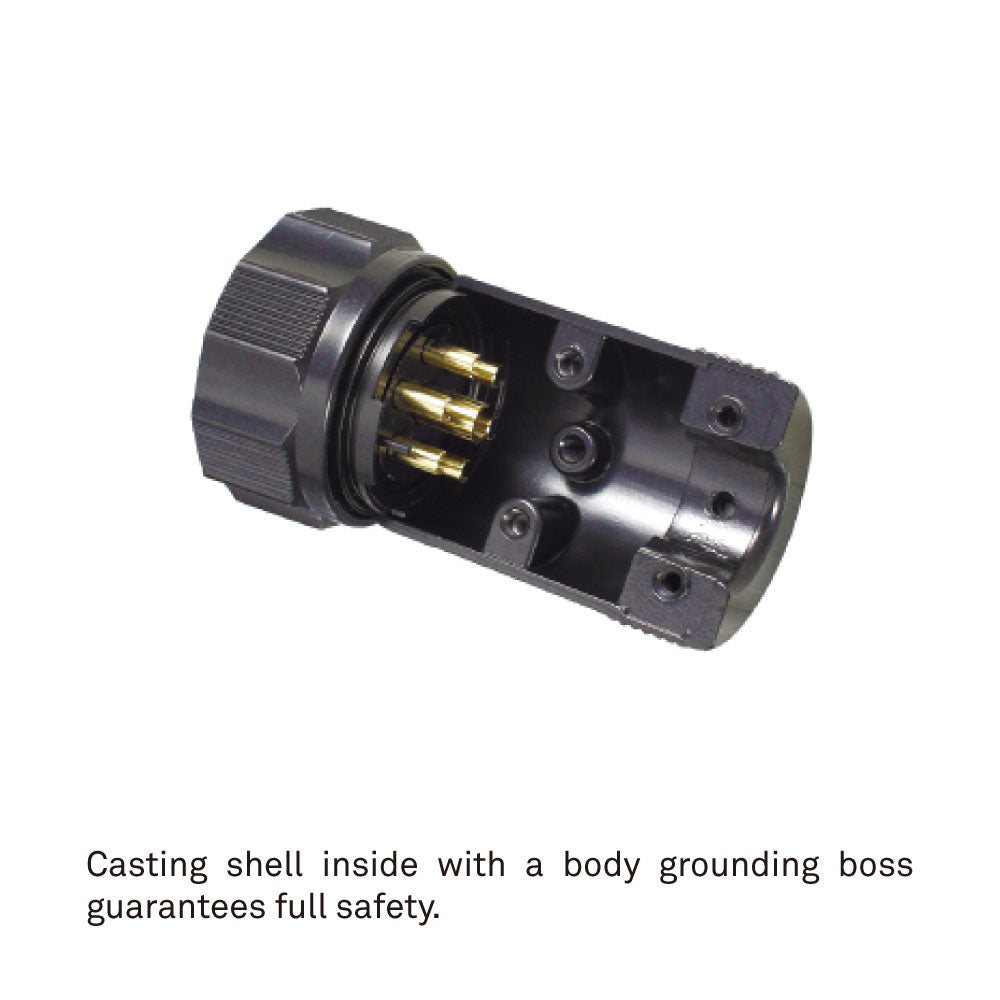

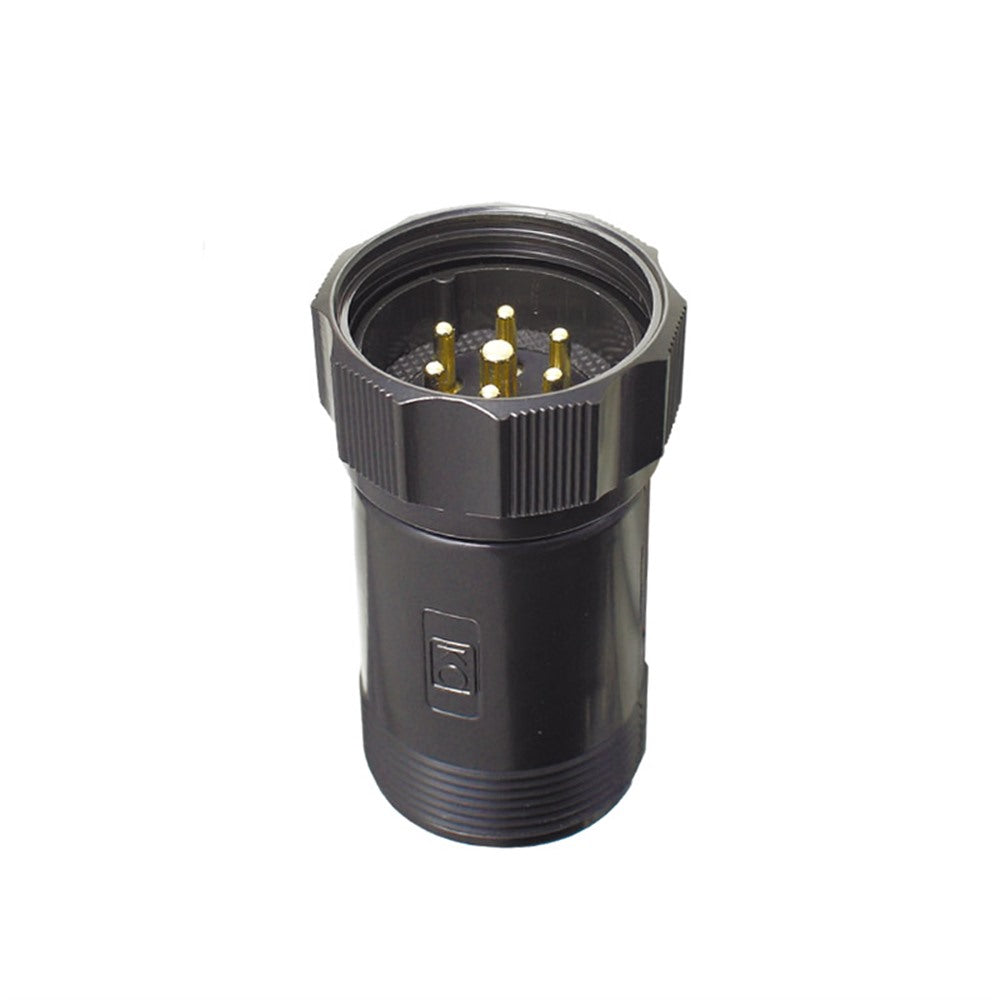

The KUPO PLS-4207LM PLS-4207 Motor Connector is part of a 7-pin system designed to combine chain hoist power and control in one compact connector. The rugged die-cast aluminum alloy shell has a black non-conductive finish, and hard gold-plated solder contacts support consistent low-resistance connections.
Why It Matters
This line male version gives cable-end pin contacts for motor cable assemblies that need to mate with the corresponding female side. Chain hoist connectors carry power and control together, so the connector choice, pin-out, and wiring check matter before any motor is energized.
Key Features
7-pin motor connector with line male configuration
Rated 6 x 25 A plus 1 x 50 A at 250 V
Solder termination with hard gold-plated contacts
Black non-conductive die-cast aluminum shell with Socapex SL37 compatibility

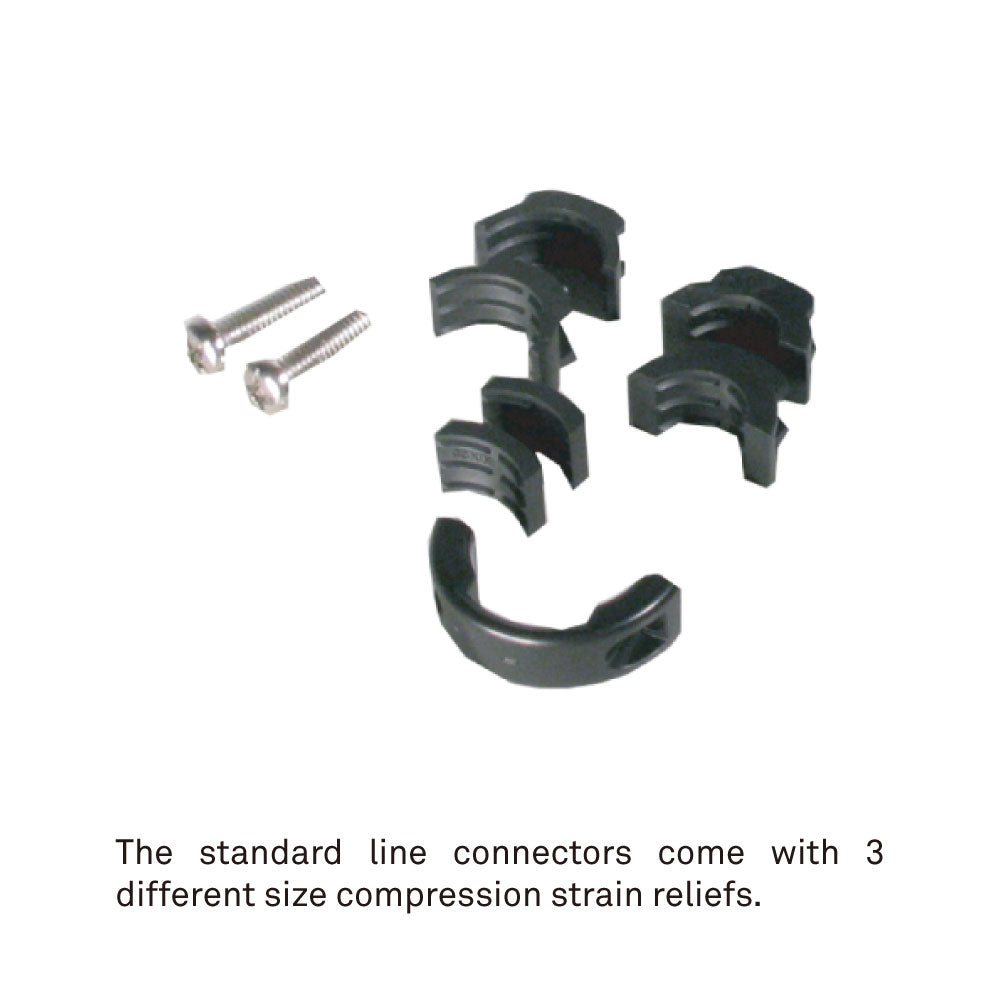

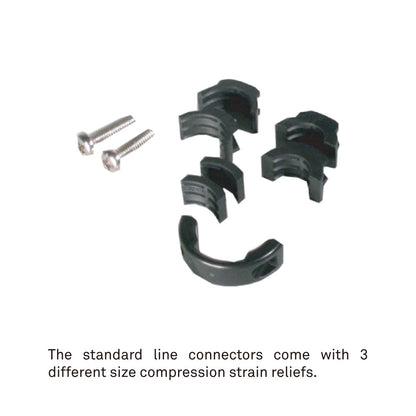

Compression strain reliefs supplied in three sizes for line cable assembly
Applications
PLS-4207LM is suited to chain hoist cable systems, motor control runs, touring rigging packages, rental-house motor looms, and stage environments where 7-pin motor power and control are carried together.
Compatibility
Use PLS-4207LM with corresponding opposite-polarity PLS-4207 connectors and Socapex SL37 family motor connectors. Always double-check the wiring configuration before energizing because 7-pin hoist wiring is not universal across suppliers.
Frequently Asked Questions
Can PLS-4207LM be mixed with other 7-pin motor systems?
It is compatible with Socapex SL37 family connectors, but wiring must still be checked because there is no universal industry-standard wiring for chain hoist 7-pin connectors.
Why does the wiring check matter so much?
These connectors carry power and control together, so incorrect wiring can damage equipment or create operator risk.
What style is PLS-4207LM?
PLS-4207LM is the line male variant in the PLS-4207 family.
