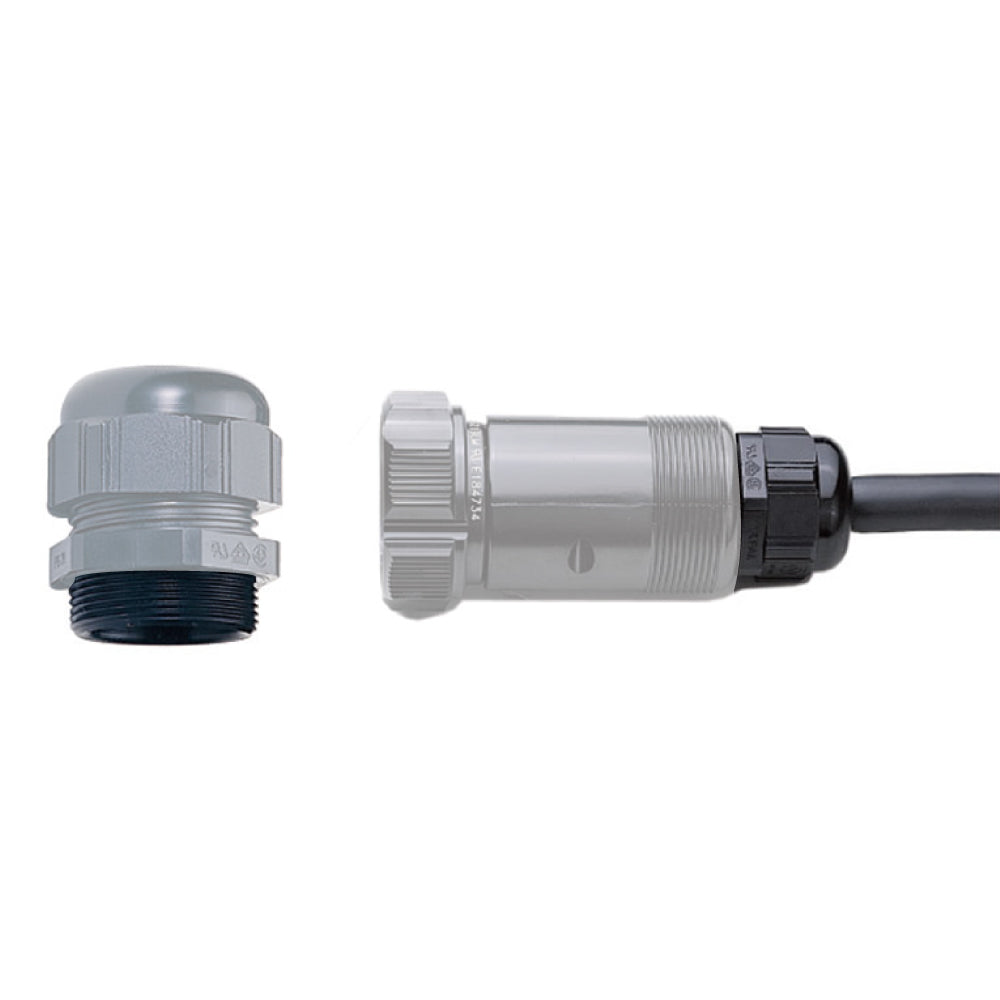

The KUPO PLS-5219 CBGD is the strain relief cable gland for PLS 19-pin connector builds that use a PG29 threaded housing. It couples directly into the connector body and helps secure the cable entry so the termination is not left to absorb every pull, flex, or vibration in the cable run.
Why It Matters
A 19-pin connector can be wired perfectly and still fail early if the cable entry is not supported correctly. This gland is a small part of the assembly, but it protects the work inside the connector when the cable is handled in carts, truss, cases, and touring looms.
Key Features
PG29 thread for PLS 19-pin connector housings
Strain relief cable gland only, connector is not included
Helps secure cable entry against tension, vibration, and flexure

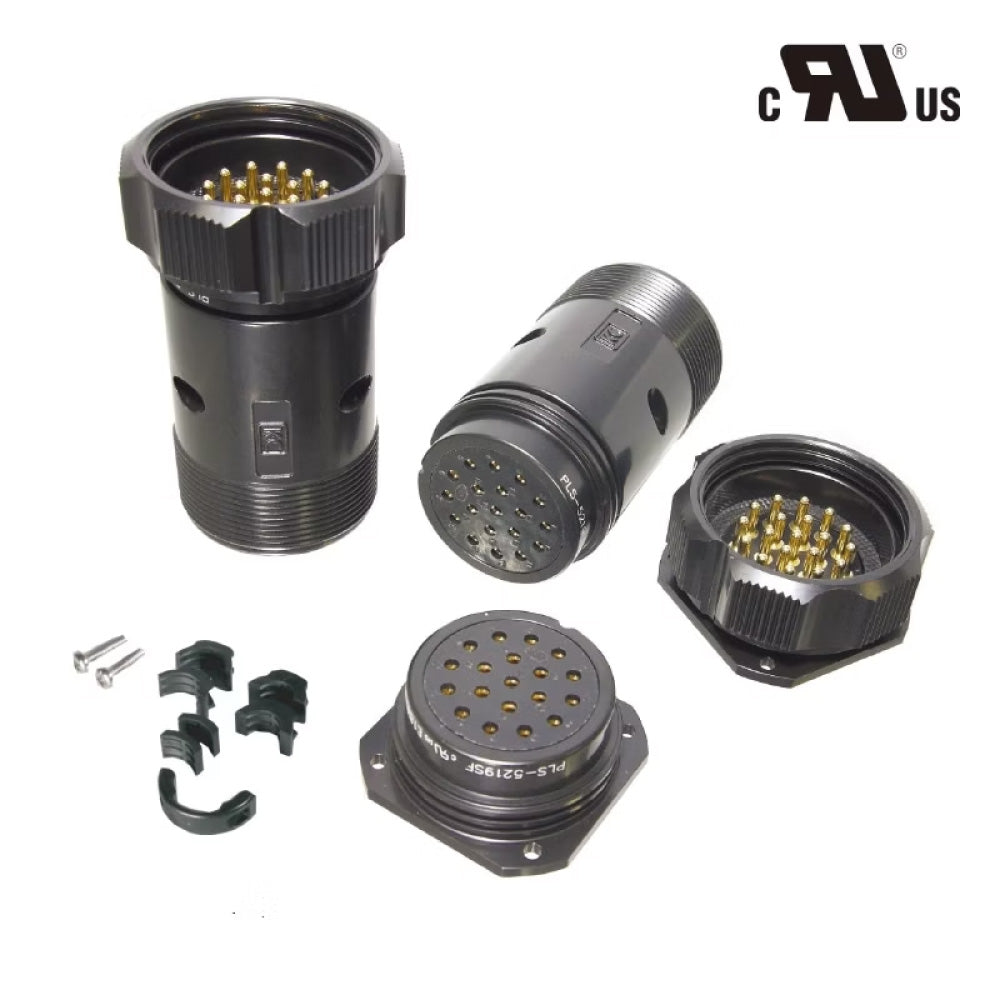

Designed for PLS 19-pin series connector assemblies
Crimp tool reference M2250/1-01 is noted in the source
Applications
PLS-5219 CBGD is suited to 19-pin Socapex-style cable builds, service replacement, repair benches, rental-house cable prep, and any PLS 19-pin connector assembly that needs a PG29 strain relief gland.
Compatibility
Use PLS-5219 CBGD with PLS 19-pin series connector housings that use a PG29 thread. The 19-pin connector itself is not included.
Frequently Asked Questions
Does PLS-5219 CBGD include the 19-pin connector?
No. It is the strain relief cable gland only.
What thread does it use?
It uses PG29 thread for compatible PLS 19-pin connector housings.
Why add a cable gland to a connector build?
The gland helps support the cable entry so tension, vibration, and flexing are not concentrated at the termination.
