Overview

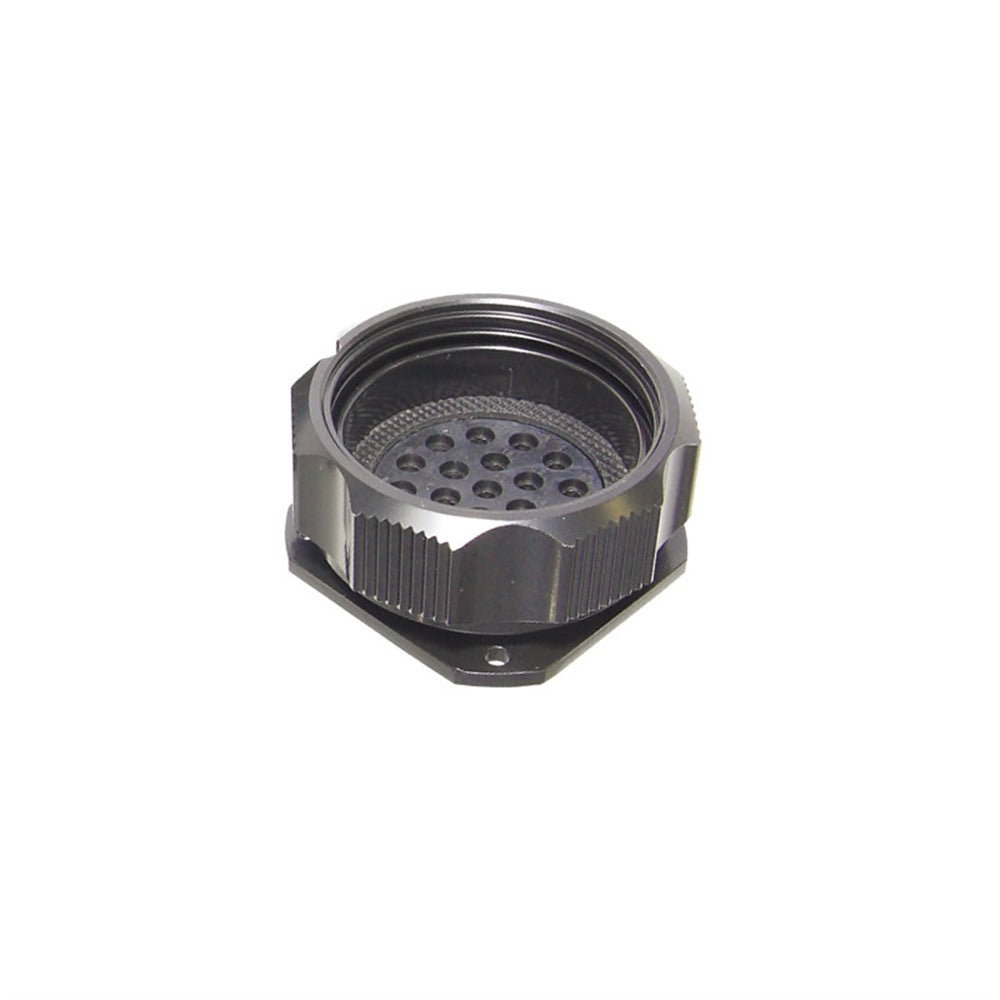

The KUPO PLS-5219 CSM PLS 19-Pin Connector is made for professional stage and event power distribution where connector durability, contact quality, and assembly serviceability matter. Its die-cast aluminum alloy shell uses a black non-conductive finish, while hard gold-plated copper alloy contacts and Neoprene insulation support reliable electrical performance.

Why It Matters

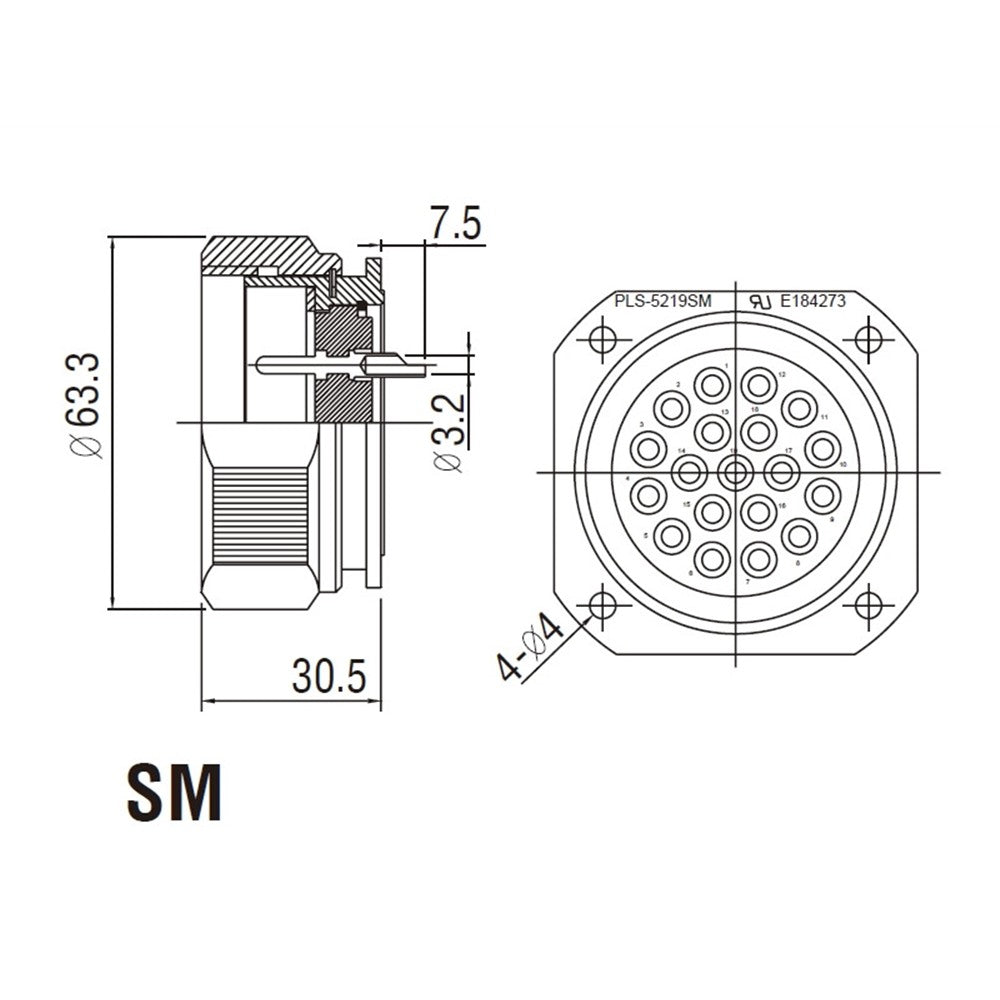

This crimp surface male version brings pin contacts to a panel-mount layout for equipment, boxes, and distro panels. The PLS 19-pin family is fully compatible with Socapex SL419 and Veam VSC connector systems, so it fits the connector ecosystem used in many touring and rental cable packages.

Key Features

• 19-pin crimp termination, panel male format
• Rated AC 20 A 250 V with AC 1500 V rated voltage and AC 400 V operating limit voltage
• Hard gold-plated copper alloy contacts with contact resistance below 3 mOhms
• Black non-conductive die-cast aluminum shell with Neoprene insulation
• Socapex SL419 and Veam VSC compatible, UL / cUL Recognized, panel-mount construction

Applications

PLS-5219 CSM is suited to panel builds, Socapex-style power distribution boxes, and touring racks, and stage environments where robust multi-circuit connectors are required.

Compatibility

Use PLS-5219 CSM with corresponding mating PLS 19-pin connectors and compatible Socapex SL419 or Veam VSC systems. Match line versus surface style and crimp tooling before assembly.
